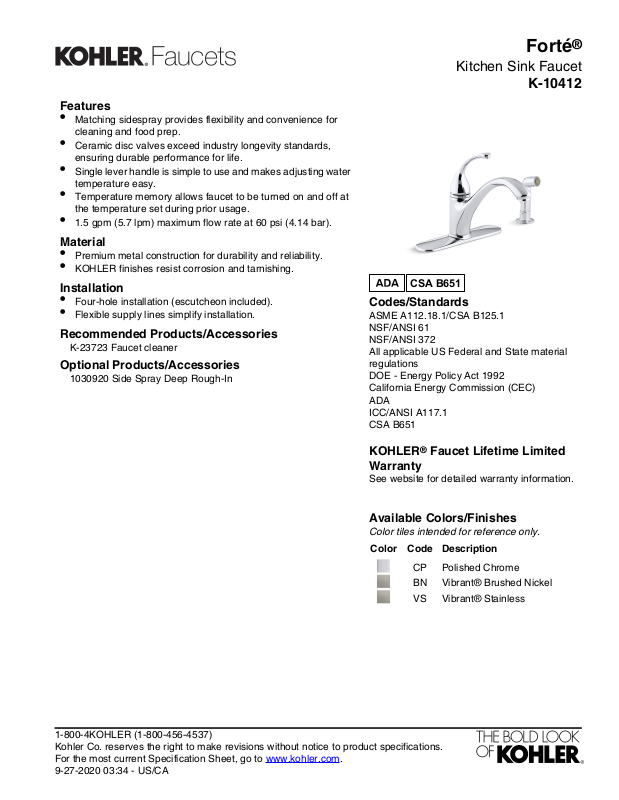

Page 1
Features
CSA B651
•
Matching sidespray provides flexibility and convenience for
cleaning and food prep.
•
Ceramic disc valves exceed industry longevity standards,
ensuring durable performance for life.
•
Single lever handle is simple to use and makes adjusting water
temperature easy.
•
Temperature memory allows faucet to be turned on and off at
the temperature set during prior usage.
•
1.5 gpm (5.7 lpm) maximum flow rate at 60 psi (4.14 bar).
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Four-hole installation (escutcheon included).
•
Flexible supply lines simplify installation.
Recommended Products/Accessories
K-23723 Faucet cleaner
Optional Products/Accessories
1030920 Side Spray Deep Rough-In
Forté
Kitchen Sink Faucet
K-10412
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-27-2020 03:34 - US/CA
DescriptionCodeColor
Polished ChromeCP
Vibrant® Brushed NickelBN
Vibrant® StainlessVS
Page 2

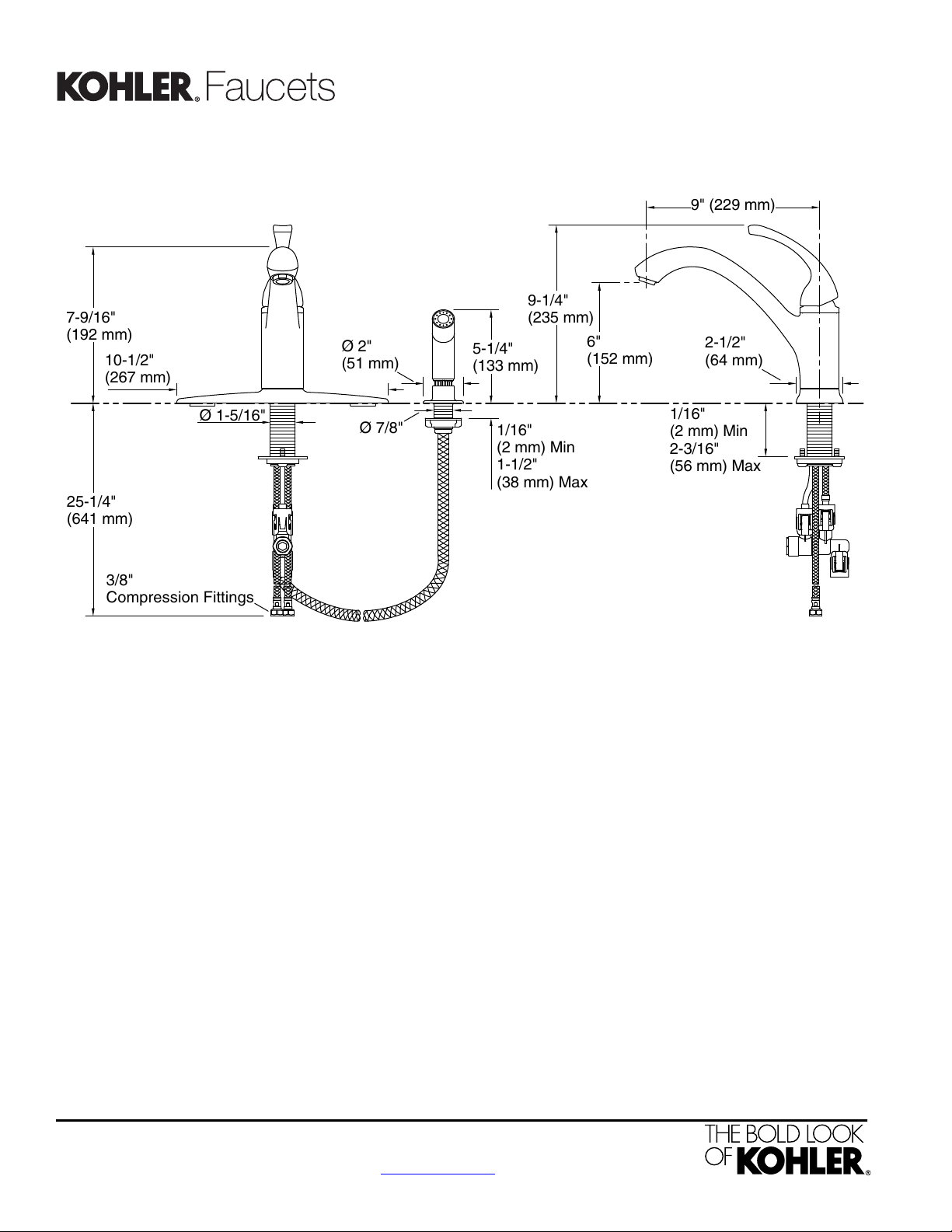

6"
(152 mm)
5-1/4"
(133 mm)
Ø 2"
(51 mm)
25-1/4"
(641 mm)
3/8"
Compression Fittings
9" (229 mm)
10-1/2"
(267 mm)
2-1/2"
(64 mm)
1/16"
(2 mm) Min
2-3/16"
(56 mm) Max
9-1/4"
(235 mm)
1/16"
(2 mm) Min
1-1/2"
(38 mm) Max
7-9/16"
(192 mm)
Ø 7/8"
Ø 1-5/16"
Forté
®
Kitchen Sink Faucet
K-10412
Technical Information
All product dimensions are nominal.
Faucet:
Spout:
Notes
Install this product according to the installation
guide.
1.5 gal/min (5.7 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
9-1/16" (230 mm)Spout reach:
ADA, CSA B651 compliant when installed to the
specific requirements of these regulations.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-27-2020 03:34 - US/CA
