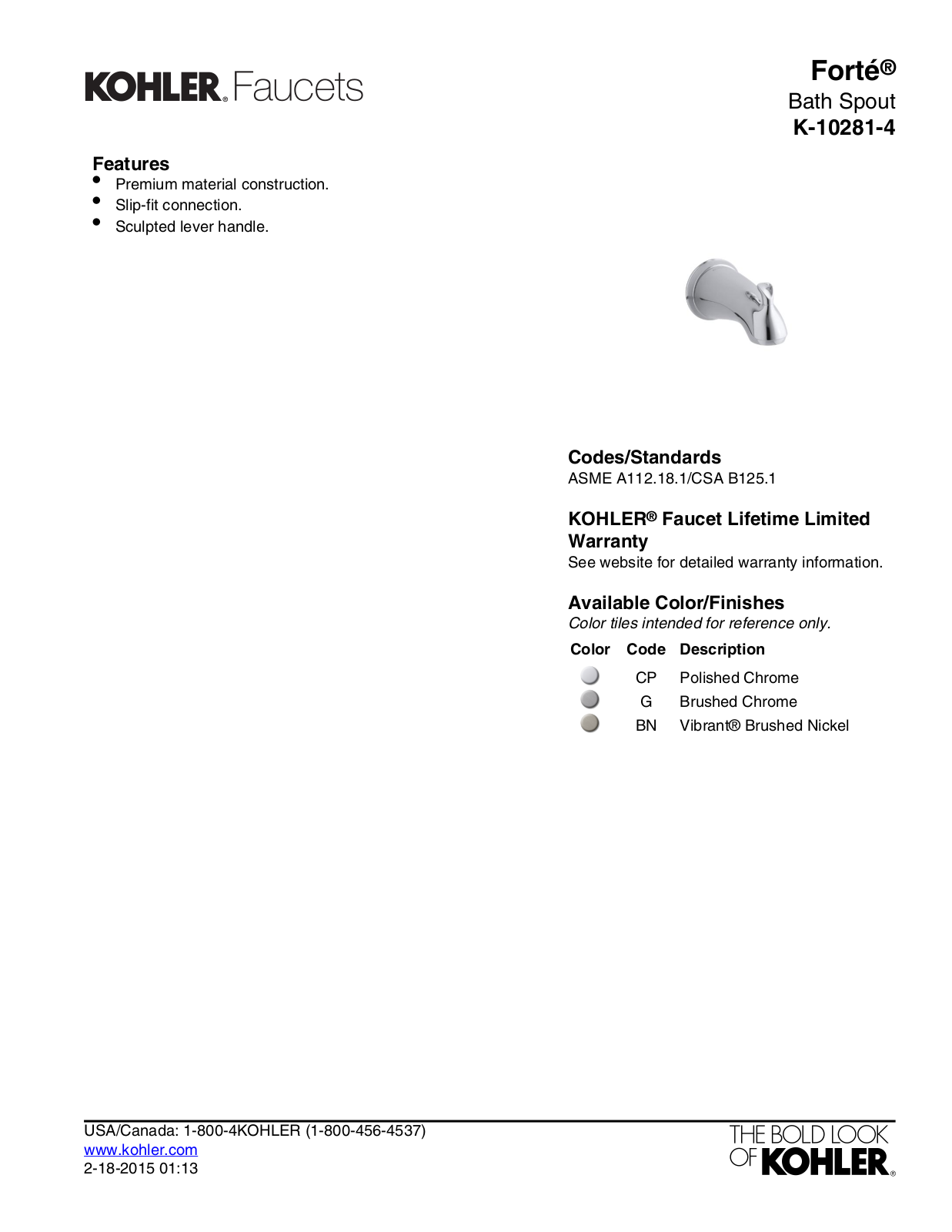

Page 1
Features
•
Premium material construction.
•
Slip-fit connection.
•
Sculpted lever handle.
Forté
Bath Spout
K-10281-4
Codes/Standards
ASME A112.18.1/CSA B125.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
®
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Brushed ChromeG
Vibrant® Brushed NickelBN
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 01:13

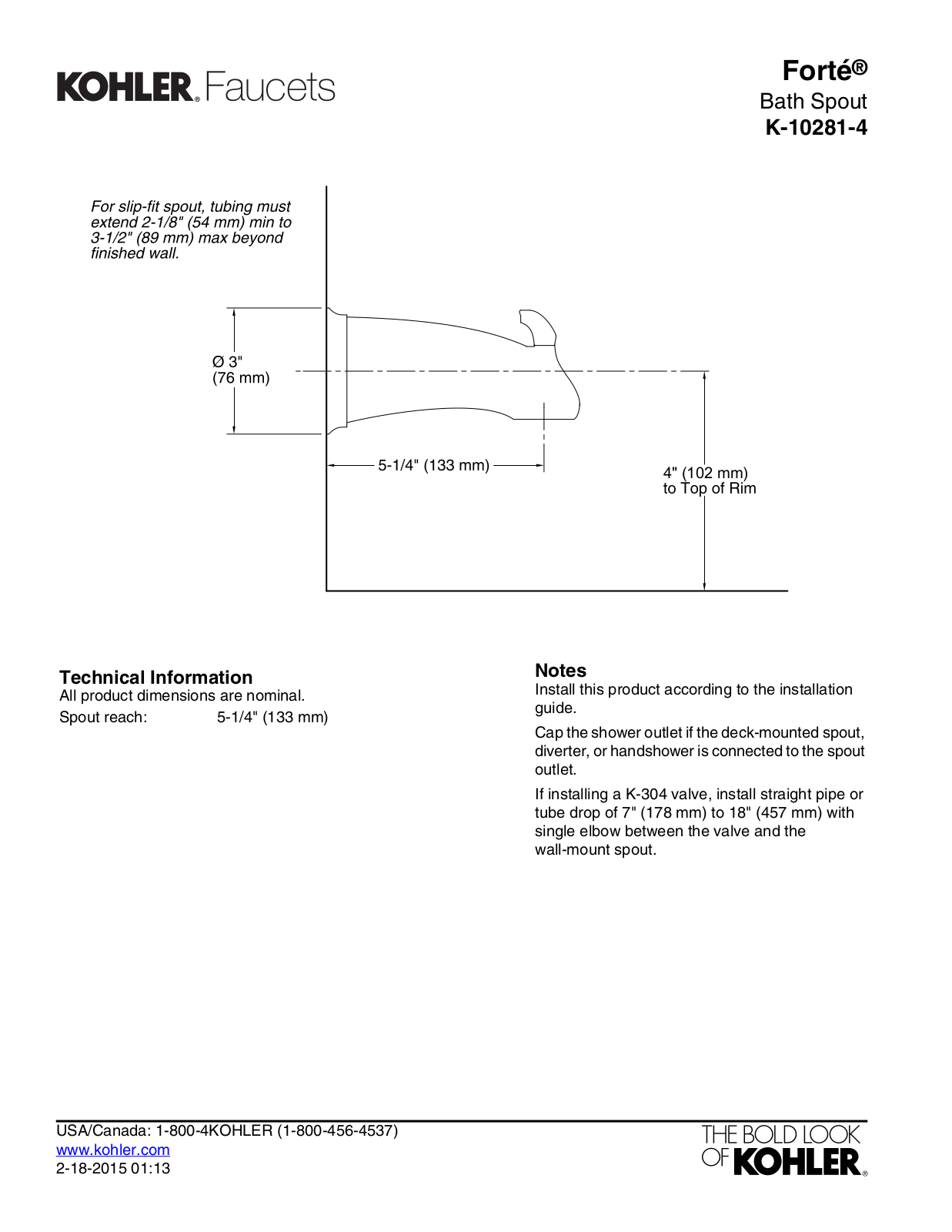

Page 2
4" (102 mm)
Forté
®
Bath Spout
K-10281-4
Technical Information
All product dimensions are nominal.
5-1/4" (133 mm)Spout reach:
Notes
Install this product according to the installation
guide.
Cap the shower outlet if the deck-mounted spout,
diverter, or handshower is connected to the spout
outlet.
If installing a K-304 valve, install straight pipe or
tube drop of 7" (178 mm) to 18" (457 mm) with
single elbow between the valve and the
wall-mount spout.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 01:13
