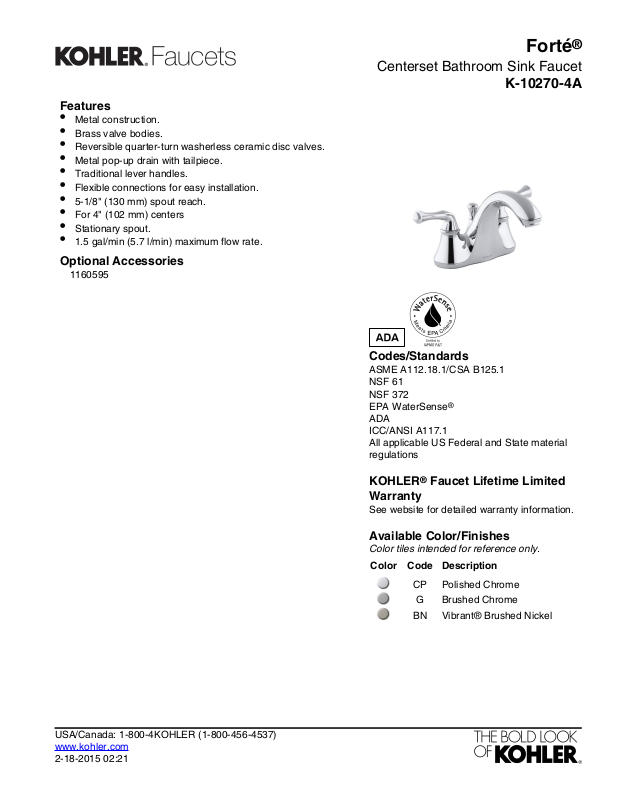

Page 1
Features
•
Metal construction.
•
Brass valve bodies.
•
Reversible quarter-turn washerless ceramic disc valves.
•
Metal pop-up drain with tailpiece.
•
Traditional lever handles.
•
Flexible connections for easy installation.
•
5-1/8" (130 mm) spout reach.
•
For 4" (102 mm) centers
•
Stationary spout.
•
1.5 gal/min (5.7 l/min) maximum flow rate.
Optional Accessories
1160595
Forté
®
Centerset Bathroom Sink Faucet
K-10270-4A
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
EPA WaterSense
ADA
ICC/ANSI A117.1
All applicable US Federal and State material
regulations
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Brushed ChromeG
Vibrant® Brushed NickelBN
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:21
Page 2
5-1/8" (130 mm)
Forté
®
Centerset Bathroom Sink Faucet
K-10270-4A
Technical Information
All product dimensions are nominal.
5-1/8" (130 mm)Spout reach:
YESDrain included:
YESDrain tailpiece
included:
Faucet:
1.5 gal/min (5.7 l/min)Flow rate:
Notes
Install this product according to the installation
guide.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:21
