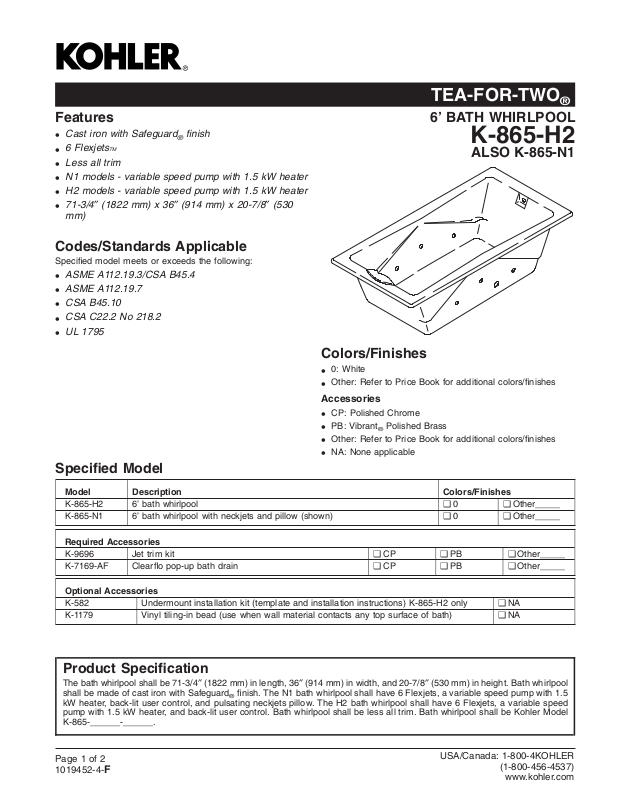

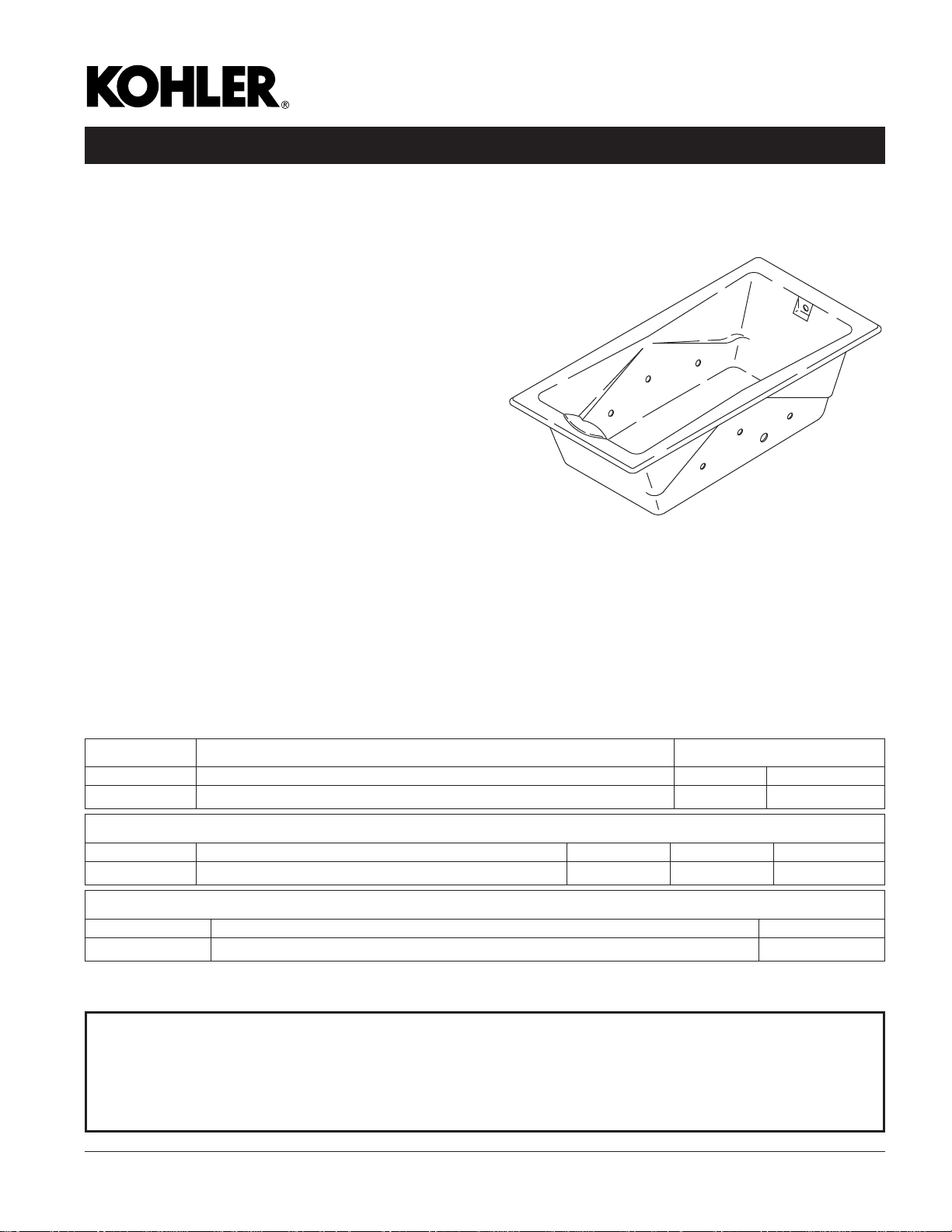

Page 1
TEA-FOR-TWO
®
Features
Cast iron with Safeguard
•
6 Flexjets
•
Less all trim
•
N1 models - variable speed pump with 1.5 kW heater
•
H2 models - variable speed pump with 1.5 kW heater
•
71-3/4″ (1822 mm) x 36″ (914 mm) x 20-7/8″ (530
•
mm)
TM
®
finish
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.3/CSA B45.4
•
ASME A112.19.7
•
CSA B45.10
•
CSA C22.2 No 218.2
•
UL 1795
•
Specified Model
6’ BATH WHIRLPOOL
K-865-H2
ALSO K-865-N1
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
NA: None applicable
•
Model Description Colors/Finishes
K-865-H2 6’ bath whirlpool ❑ 0 ❑ Other_____
K-865-N1 6’ bath whirlpool with neckjets and pillow (shown) ❑ 0 ❑ Other_____
Required Accessories
K-9696 Jet trim kit ❑ CP ❑ PB ❑ Other_____
K-7169-AF Clearflo pop-up bath drain ❑ CP ❑ PB ❑ Other_____
Optional Accessories
K-582 Undermount installation kit (template and installation instructions) K-865-H2 only ❑ NA
K-1179 Vinyl tiling-in bead (use when wall material contacts any top surface of bath) ❑ NA
Product Specification
The bath whirlpool shall be 71-3/4″ (1822 mm) in length, 36″ (914 mm) in width, and 20-7/8″ (530 mm) in height. Bath whirlpool
shall be made of cast iron with Safeguard
kW heater, back-lit user control, and pulsating neckjets pillow. The H2 bath whirlpool shall have 6 Flexjets, a variable speed
pump with 1.5 kW heater, and back-lit user control. Bath whirlpool shall be less all trim. Bath whirlpool shall be Kohler Model
K-865-______-______.
Page 1 of 2
1019452-4-
F
finish. The N1 bath whirlpool shall have 6 Flexjets, a variable speed pump with 1.5
®
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com

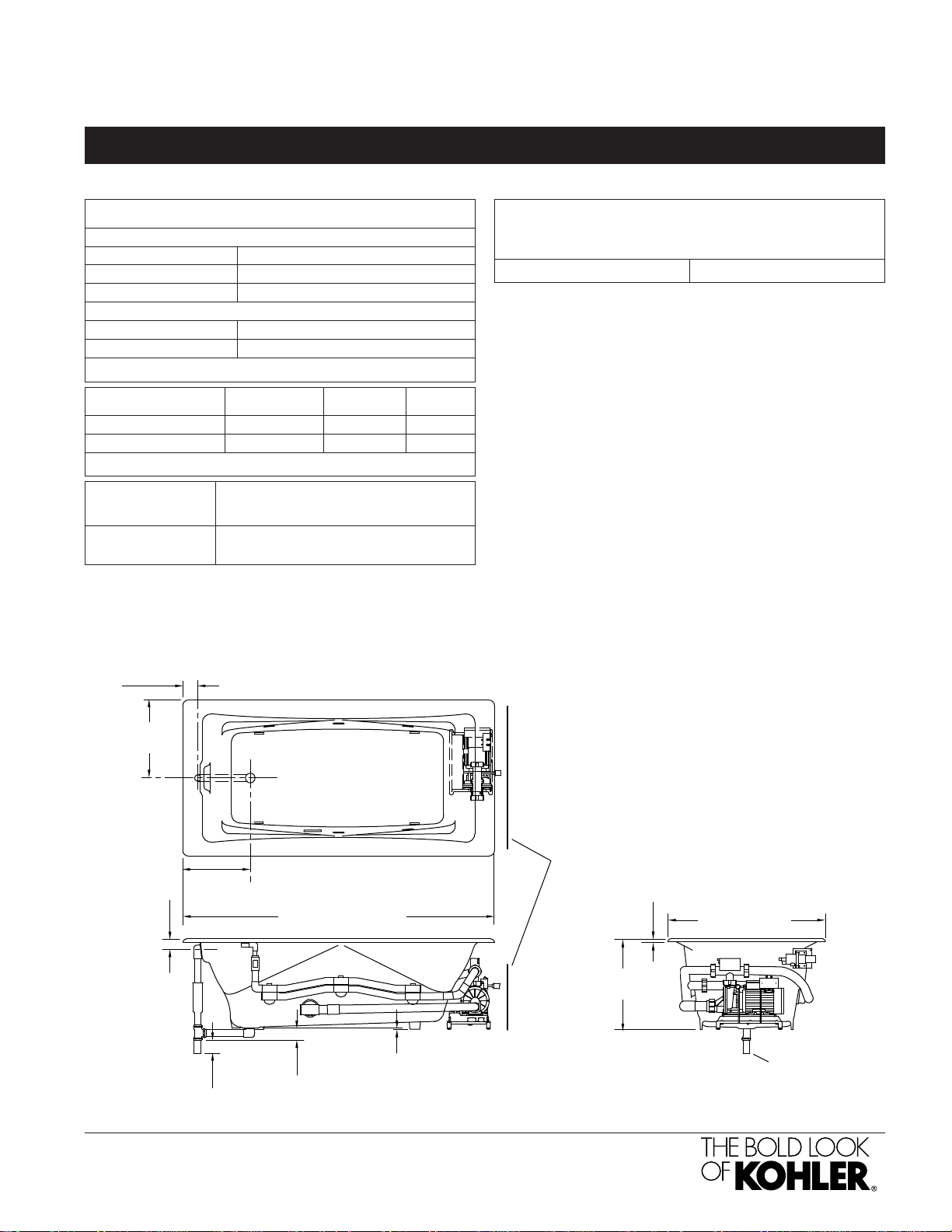

Page 2
TEA-FOR-TWO
Technical Information
®
Required Electrical Service
Fixture*:
Bathing well:
Basin area, bottom 49″ (1245 mm) x 22″ (559 mm)
Basin area, top 62″ (1575 mm) x 28″ (711 mm)
Weight 455 lbs (206.4 kg)
To overflow:
Water depth 17″ (432 mm)
Capacity 89 gal (336.9 L)
* Approximate measurements for comparison only.
Product kW V A*
Neckjets 1.5 240 15
Without neckjets 1.5 240 11
* Approximate measurements for comparison only.
Drop-in cut-out 70-1/4″ (1784 mm) x 34-1/2″ (876
Cut-out for
undermount
3-1/2"
(89 mm)
mm)
K-582 template for K-865-H2 only
K-865-N1
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual
Current Device (RCD):
Pump/control 208-240 V, 20 A, 50/60 Hz
Installation Notes
Install this product according to the installation guide.
Floor support under whirlpool must provide for a minimum of
69 lbs/square foot (333 kg/square meter) loading.
Cast iron whirlpools are extremely heavy, making some
drop-in installations difficult. Splitting the deck/surround is
recommended if installing into a deck.
Hot water supply should be 70% of capacity or greater.
Installations will vary.
No change in measurements if connected with
drain illustrated. (K-7169-AF or K-7169M-AF)
18"
(457 mm)
15-5/8"
(397 mm)
2-1/2"
(64 mm)
71-3/4" (1822 mm)
2-7/8"
3"
(73 mm)
(76 mm)
TEA-FOR-TWO®6’ BATH WHIRLPOOL
Page2of2
1019452-4-
F
Pump/Control Access
34" (864 mm) W x 15" (381 mm) H
1/4" (6 mm)
Product Diagram
3/4"
(19 mm)
20-7/8"
(530 mm)
36" (914 mm)
1-1/2" OD
