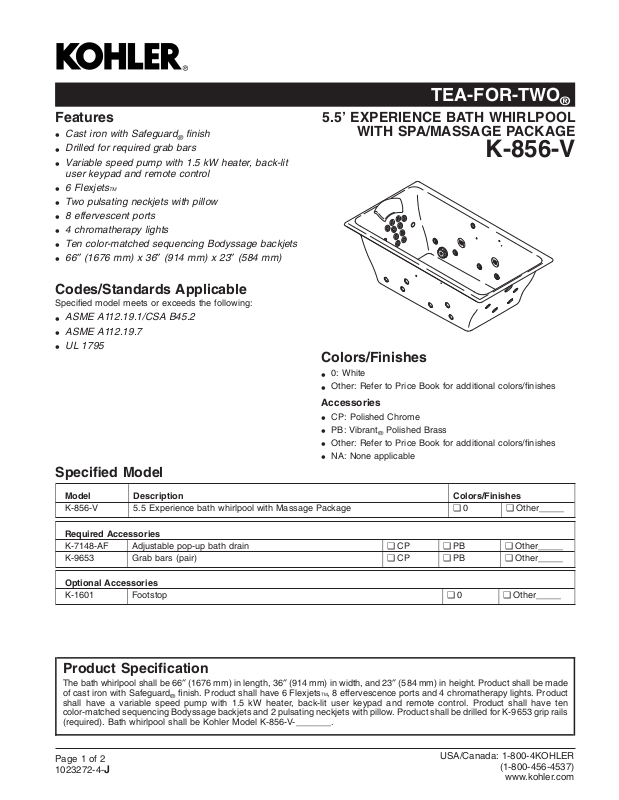

TEA-FOR-TWO
®
Features
Cast iron with Safeguard
•
Drilled for required grab bars
•
Variable speed pump with 1.5 kW heater, back-lit
•
user keypad and remote control
6 Flexjets
•
Two pulsating neckjets with pillow
•
8 effervescent ports
•
4 chromatherapy lights
•
Ten color-matched sequencing Bodyssage backjets
•
66″ (1676 mm) x 36″ (914 mm) x 23″ (584 mm)
•
TM
®
finish
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.1/CSA B45.2
•
ASME A112.19.7
•
UL 1795
•
Specified Model
5.5’ EXPERIENCE BATH WHIRLPOOL
WITH SPA/MASSAGE PACKAGE
K-856-V
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
NA: None applicable
•
Model Description Colors/Finishes
K-856-V 5.5 Experience bath whirlpool with Massage Package ❑ 0 ❑ Other_____
Required Accessories
K-7148-AF Adjustable pop-up bath drain ❑ CP ❑ PB ❑ Other_____
K-9653 Grab bars (pair) ❑ CP ❑ PB ❑ Other_____
Optional Accessories
K-1601 Footstop ❑ 0 ❑ Other_____
Product Specification
The bath whirlpool shall be 66″ (1676 mm) in length, 36″ (914 mm) in width, and 23″ (584 mm) in height. Product shall be made
of cast iron with Safeguard
shall have a variable speed pump with 1.5 kW heater, back-lit user keypad and remote control. Product shall have ten
color-matched sequencing Bodyssage backjets and 2 pulsating neckjets with pillow. Product shall be drilled for K-9653 grip rails
(required). Bath whirlpool shall be Kohler Model K-856-V-_______.
Page 1 of 2
1023272-4-
J
finish. Product shall have 6 FlexjetsTM, 8 effervescence ports and 4 chromatherapy lights. Product
®
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
TEA-FOR-TWO
Technical Information
®
Required Electrical Service
Fixture*:
Basin area:
Bathing area, bottom 42″ (1067 mm) x 25″ (635 mm)
Bathing area, top 58″ (1473 mm) x 29″ (737 mm)
Weight 510 lbs (231 kg)
To overflow:
Water depth 18″ (457 mm)
Capacity 96 gal (363.4 L)
* Approximate measurements for comparison only.
Pump: V Hz A
240 50/60 15
Drop-in cut-out 65-1/2″ (1664 mm) x 35-1/2″
(902 mm) Max
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual
Current Device (RCD):
Pump/control 220-240 V, 20 A, 50/60 Hz
Installation Notes
Install this product according to the installation guide.
Floor support under whirlpool must provide for a minimum of
81 lbs/square foot (395 kg/square meter) loading.
Cast iron whirlpools are extremely heavy, making some
drop-in installations difficult. Splitting the deck/surround is
recommended if installing into a deck.
A pump/control access panel is required.
Pump/piping protrudes beyond the rim (see below).
Hot water supply should be 70% of the water capacity or
greater. Installations will vary.
No change in measurements with drain
shown. (K-7148-AF or K-7148M-AF)
18"
(457 mm)
2-1/2"
(64 mm)
11" (279 mm)
2-7/8" (73 mm)
3" (76 mm)
66" (1676 mm)
1/2" (13 mm)
2" (51 mm) Max
Pump/Control Access
34" (864 mm) W x
15" (381 mm) H Min
Product Diagram
NOTE: Pump/piping protrudes beyond rim.
3/4" (19 mm)
36" (914 mm)
23"
(584 mm)
1-1/2" OD
TEA-FOR-TWO®5.5’ EXPERIENCE BATH WHIRLPOOL WITH SPA/MASSAGE PACKAGE
Page2of2
1023272-4-
J
