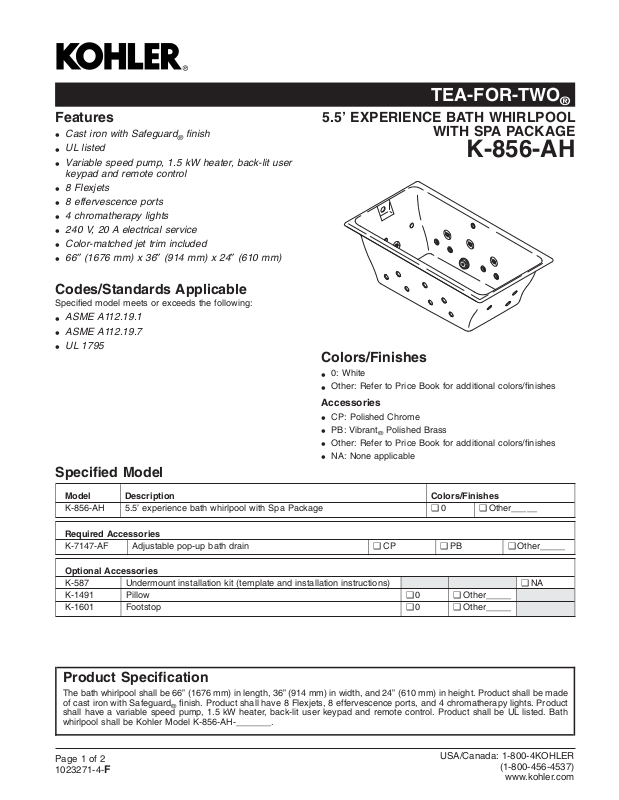

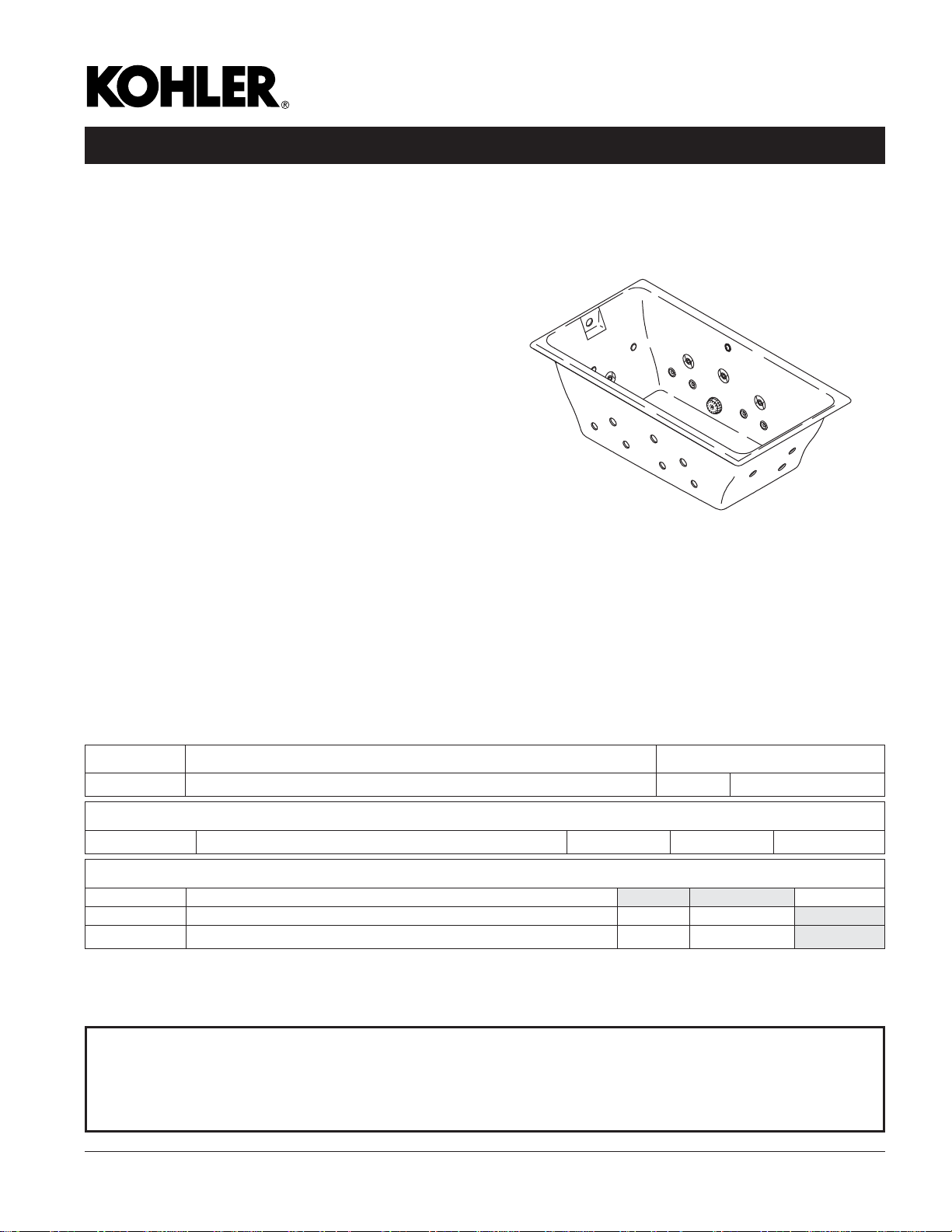

TEA-FOR-TWO
®
Features
Cast iron with Safeguard
•
UL listed
•
Variable speed pump, 1.5 kW heater, back-lit user
•
keypad and remote control
8 Flexjets
•
8 effervescence ports
•
4 chromatherapy lights
•
240 V, 20 A electrical service
•
Color-matched jet trim included
•
66″ (1676 mm) x 36″ (914 mm) x 24″ (610 mm)
•
®
finish
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.1
•
ASME A112.19.7
•
UL 1795
•
Specified Model
5.5’ EXPERIENCE BATH WHIRLPOOL
WITH SPA PACKAGE
K-856-AH
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
NA: None applicable
•
Model Description Colors/Finishes
K-856-AH 5.5’ experience bath whirlpool with Spa Package ❑ 0 ❑ Other_____
Required Accessories
K-7147-AF Adjustable pop-up bath drain ❑ CP ❑ PB ❑ Other_____
Optional Accessories
K-587 Undermount installation kit (template and installation instructions) ❑ NA
K-1491 Pillow ❑ 0 ❑ Other_____
K-1601 Footstop ❑ 0 ❑ Other_____
Product Specification
The bath whirlpool shall be 66” (1676 mm) in length, 36” (914 mm) in width, and 24” (610 mm) in height. Product shall be made
of cast iron with Safeguard
shall have a variable speed pump, 1.5 kW heater, back-lit user keypad and remote control. Product shall be UL listed. Bath
whirlpool shall be Kohler Model K-856-AH-_______.
Page 1 of 2
1023271-4-
F
finish. Product shall have 8 Flexjets, 8 effervescence ports, and 4 chromatherapy lights. Product
®
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com

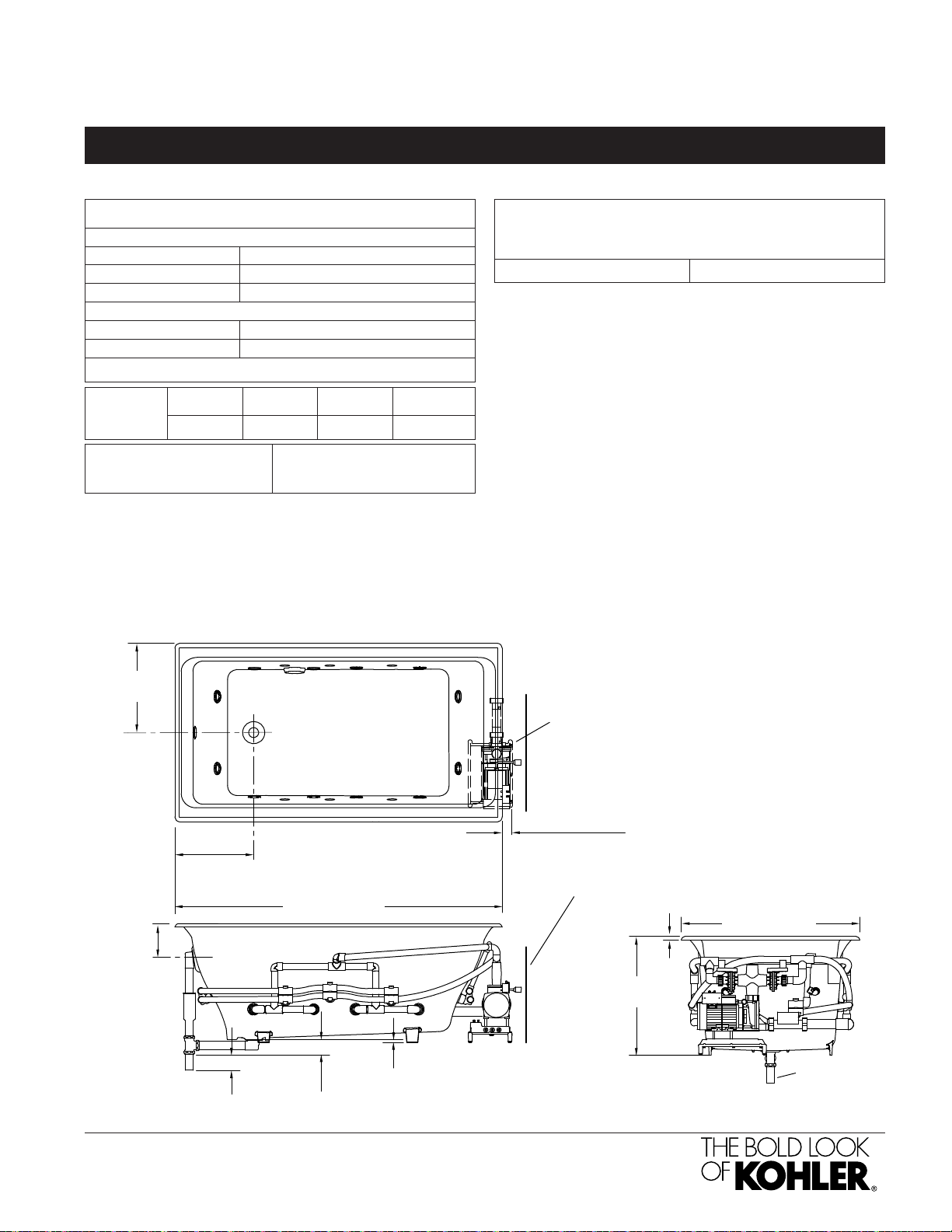

Page 2
TEA-FOR-TWO
Technical Information
®
Required Electrical Service
Fixture*:
Basin area:
Bathing area, bottom 45″ (1143 mm) x 25″ (635 mm)
Bathing area, top 58″ (1473 mm) x 29″ (737 mm)
Weight 510 lbs (231.3 kg)
To overflow:
Water depth 19-1/2″ (495 mm)
Capacity 105 gal (397.5 L)
* Approximate measurements for comparison only.
Pump: kW V Hz A
1.5 240 50/60 11
Drop-in cut-out 65-1/2″ (1664 mm) x 35-1/2″
(902 mm)
K-856-AH
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual
Current Device (RCD):
Pump/control 220-240 V, 20 A, 50/60 Hz
Installation Notes
Pump/piping protrudes beyond rim (see below).
Install this product according to the installation guide.
Cast iron whirlpools are extremely heavy, making some
drop-in installations difficult. Splitting the deck/surround is
recommended if installing into a deck.
Floor support under whirlpool must provide for a minimum of
86 lbs/square foot (421 kg/square meter) loading.
Hot water supply should be 70% of capacity or greater.
Installations will vary.
No change in measurements with
drain shown. (K-7147-AF or K-7147M-AF)
18"
(457 mm)
4-3/6"
(106 mm)
15-7/8"
(403 mm)
3" (76 mm)
66" (1676 mm)
2-7/8"
(73 mm)
NOTE: Pump/piping protrudes beyond rim.
1-1/2"
(38 mm) Max
1/2" (13 mm)
Product Diagram
Pump/Control Access
34" (864 mm) W x
15" (381 mm) H Min
3/4" (19 mm)
24"
(610 mm)
36" (914 mm)
1-1/2" OD
TEA-FOR-TWO®5.5’ EXPERIENCE BATH WHIRLPOOL WITH SPA PACKAGE
Page2of2
1023271-4-
F
