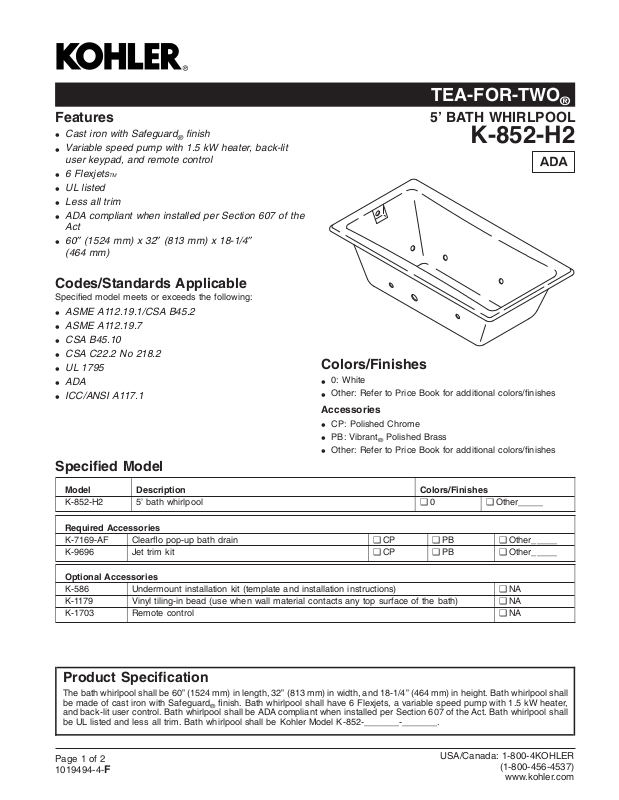

TEA-FOR-TWO
®
Features
Cast iron with Safeguard
•
Variable speed pump with 1.5 kW heater, back-lit
•
user keypad, and remote control
6 Flexjets
•
UL listed
•
Less all trim
•
ADA compliant when installed per Section 607 of the
•
Act
60″ (1524 mm) x 32″ (813 mm) x 18-1/4″
•
(464 mm)
TM
®
finish
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.1/CSA B45.2
•
ASME A112.19.7
•
CSA B45.10
•
CSA C22.2 No 218.2
•
UL 1795
•
ADA
•
ICC/ANSI A117.1
•
Specified Model
5’ BATH WHIRLPOOL
K-852-H2
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-852-H2 5’ bath whirlpool ❑ 0 ❑ Other_____
Required Accessories
K-7169-AF Clearflo pop-up bath drain ❑ CP ❑ PB ❑ Other_____
K-9696 Jet trim kit ❑ CP ❑ PB ❑ Other_____
Optional Accessories
K-586 Undermount installation kit (template and installation instructions) ❑ NA
K-1179 Vinyl tiling-in bead (use when wall material contacts any top surface of the bath) ❑ NA
K-1703 Remote control ❑ NA
Product Specification
The bath whirlpool shall be 60” (1524 mm) in length, 32” (813 mm) in width, and 18-1/4” (464 mm) in height. Bath whirlpool shall
be made of cast iron with Safeguard
and back-lit user control. Bath whirlpool shall be ADA compliant when installed per Section 607 of the Act. Bath whirlpool shall
be UL listed and less all trim. Bath whirlpool shall be Kohler Model K-852-_______-_______.
Page 1 of 2
1019494-4-
F
finish. Bath whirlpool shall have 6 Flexjets, a variable speed pump with 1.5 kW heater,
®
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
TEA-FOR-TWO
Technical Information
®
Required Electrical Service
Fixture*:
Bathing well:
Basin area, bottom 40-1/2″ (1029 mm) x 20″ (508 mm)
Basin area, top 52-3/4″ (1340 mm) x 24″ (610 mm)
Weight 290 lbs (131.5 kg)
To overflow:
Water depth 13-5/8″ (346 mm)
Capacity 60 gal (227.1 L)
* Approximate measurements for comparison only.
Pump kW V A*
1.5 240 11
* Approximate measurements for comparison only.
Drop-in cut-out 58-1/2″ (1486 mm) x 30-1/2″
Cut-out for undermount K-586 template
(775 mm)
K-852-H2
1-5/8"
(41 mm)
60" (1524 mm)
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual
Current Device (RCD):
Pump/control 208-240 V, 20 A, 50/60 Hz
Installation Notes
NOTE: Pump protrusion beyond rim.
Install this product according to the installation guide.
Floor support under whirlpool must provide for a minimum of
60 lbs/square foot (290 kg/square meter) loading.
Cast iron whirlpools are extremely heavy, making some
drop-in installations difficult. Splitting the deck/surround is
recommended if installing into a deck.
1-3/4"
(44 mm)
16"
(406 mm)
2-1/2"
(64 mm)
2-7/8"
(73 mm)
14" (356 mm)
3" (76 mm)
1/4" (6 mm)
Product Diagram
NOTE: Pump Protrusion Beyond Rim
No change in measurements if connected with
drain illustrated. (K-7169-AF or K-7169M-AF)
Pump/Control Access
34" (864 mm) W x 15" (381 mm) H
3/4"
(19 mm)
32" (813 mm)
18-1/4"
(464 mm)
1-1/2" OD
TEA-FOR-TWO®5’ BATH WHIRLPOOL
Page2of2
1019494-4-
F
