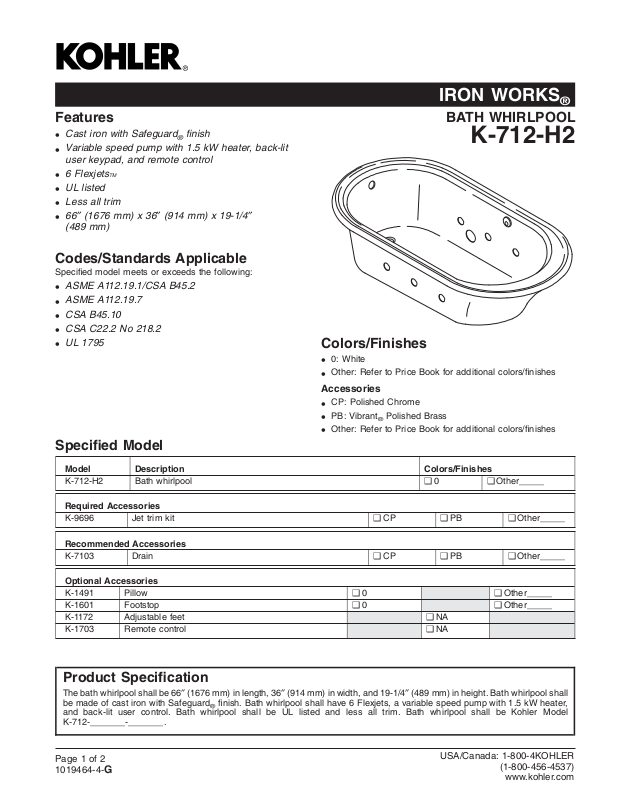

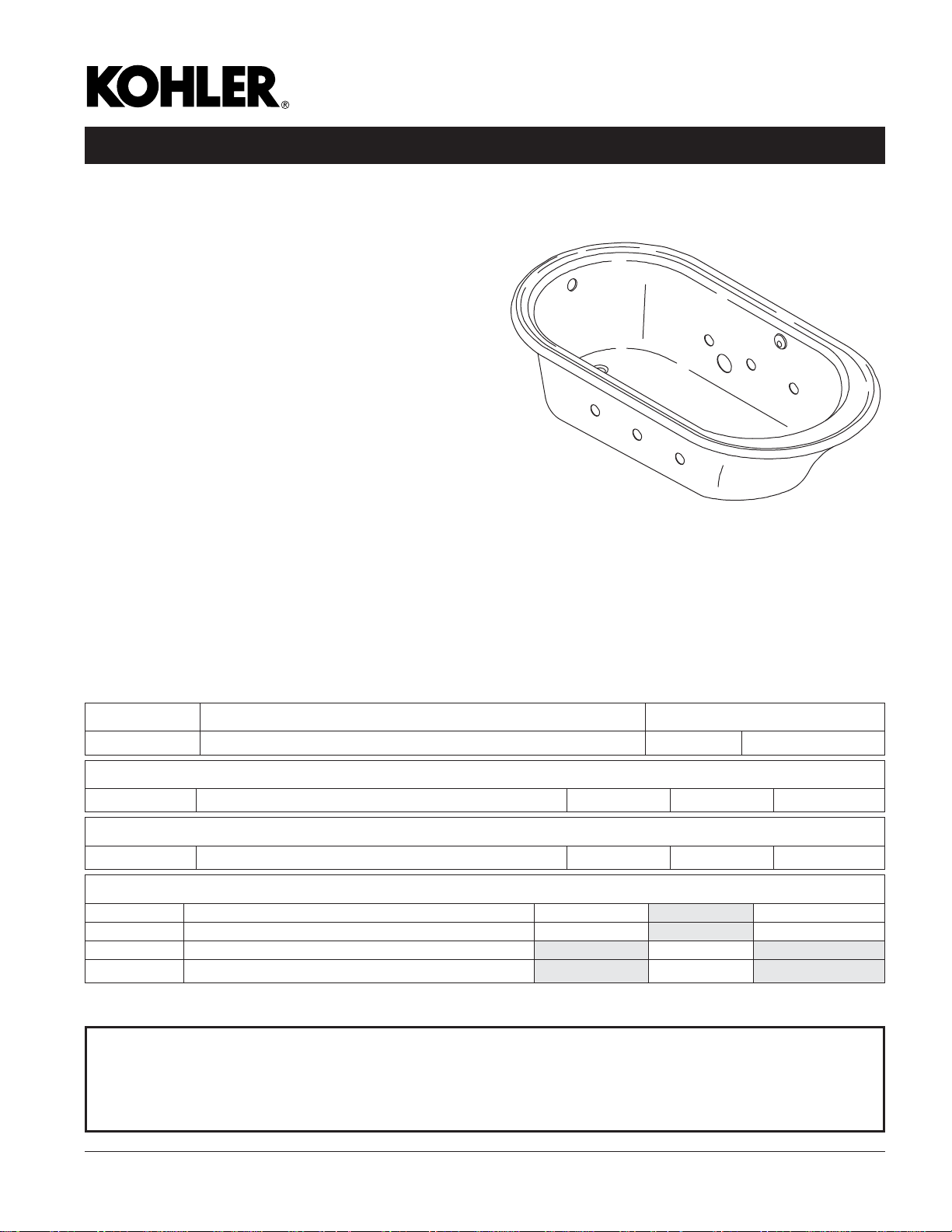

IRON WORKS
®
Features
Cast iron with Safeguard
•
Variable speed pump with 1.5 kW heater, back-lit
•
user keypad, and remote control
6 Flexjets
•
UL listed
•
Less all trim
•
66″ (1676 mm) x 36″ (914 mm) x 19-1/4″
•
(489 mm)
TM
®
finish
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.1/CSA B45.2
•
ASME A112.19.7
•
CSA B45.10
•
CSA C22.2 No 218.2
•
UL 1795
•
Specified Model
BATH WHIRLPOOL
K-712-H2
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-712-H2 Bath whirlpool ❑ 0 ❑ Other_____
Required Accessories
K-9696 Jet trim kit ❑ CP ❑ PB ❑ Other_____
Recommended Accessories
K-7103 Drain ❑ CP ❑ PB ❑ Other_____
Optional Accessories
K-1491 Pillow ❑ 0 ❑ Other_____
K-1601 Footstop ❑ 0 ❑ Other_____
K-1172 Adjustable feet ❑ NA
K-1703 Remote control ❑ NA
Product Specification
The bath whirlpool shall be 66″ (1676 mm) in length, 36″ (914 mm) in width, and 19-1/4″ (489 mm) in height. Bath whirlpool shall
be made of cast iron with Safeguard
and back-lit user control. Bath whirlpool shall be UL listed and less all trim. Bath whirlpool shall be Kohler Model
K-712-_______-_______.
Page 1 of 2
1019464-4-
G
finish. Bath whirlpool shall have 6 Flexjets, a variable speed pump with 1.5 kW heater,
®
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
IRON WORKS
Technical Information
®
Required Electrical Service
Fixture*:
Bathing well:
Basin area, bottom 47-1/2″ (1207 mm) x 25″
(635 mm)
Basin area, top 55″ (1397 mm) x 29″ (737 mm)
Weight 500 lbs (227 kg)
To overflow:
Water depth 12-5/8″ (321 mm)
Capacity 64 gal (242.3 L)
* Approximate measurements for comparison only.
Pump kW V A*
1.5 240 11
* Approximate measurements for comparison only.
Included component:
Cut-out template 88051-7
No change in measurements if connected with drain
illustrated. (K-7103 or K-7103M)
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual
Current Device (RCD):
Pump/control 208-240 V, 20 A, 50/60 Hz
Installation Notes
Install this product according to the installation guide.
Floor support under whirlpool must provide for a minimum of
65 lbs/square foot (314 kg/square meter) loading.
Cast iron whirlpools are extremely heavy, making some
drop-in installations difficult. Splitting the deck/surround is
recommended if installing into a deck.
Hot water supply should be 70% of capacity or greater.
Installations will vary.
K-712-H2
Pump/Control Access
34" (864 mm) W x 15" (381 mm) H
36" (914 mm)
18-1/4"
(464 mm)
1-1/2" OD
IRON WORKS®BATH WHIRLPOOL
Page2of2
1019464-4-
G
19-1/4"
(489 mm)

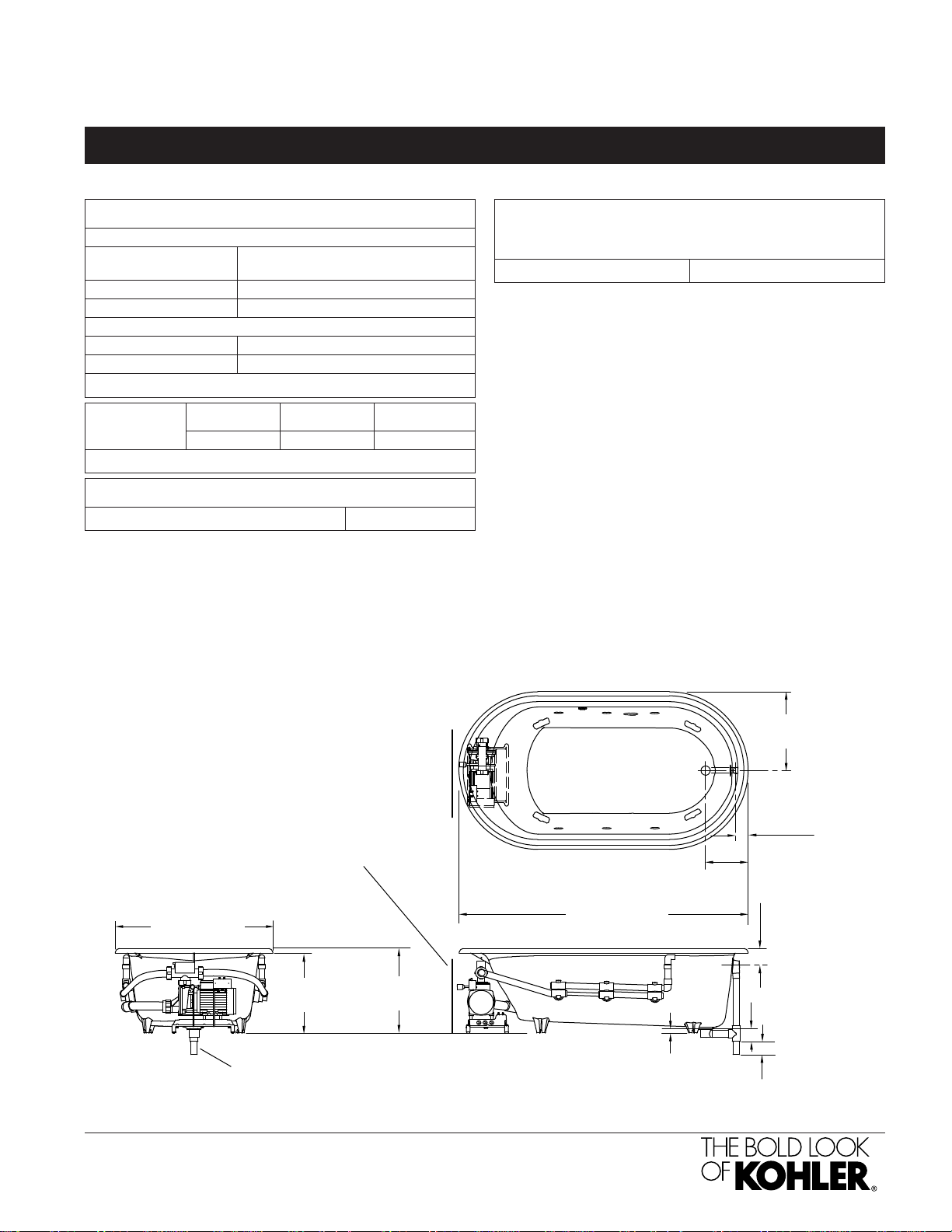

Product Diagram
66" (1676 mm)
1" (25 mm)
18"
(457 mm)
2-11/16"
(68 mm)
9-11/16"
(246 mm)
3-3/4"
(95 mm)
2-7/8" (73 mm)
3" (76 mm)
