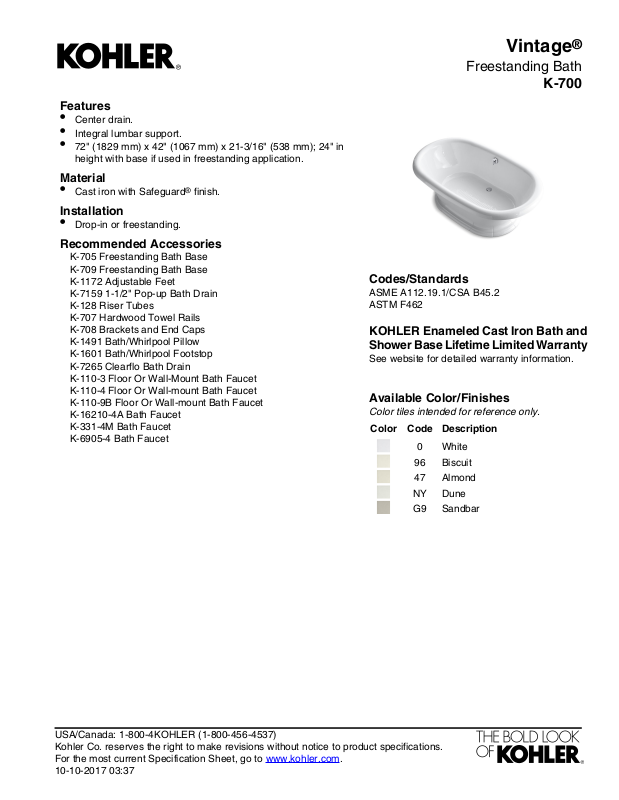

Page 1
Features
•
Center drain.
•
Integral lumbar support.
•
72" (1829 mm) x 42" (1067 mm) x 21-3/16" (538 mm); 24" in
height with base if used in freestanding application.
Material
•
Cast iron with Safeguard® finish.
Installation
•
Drop-in or freestanding.
Recommended Accessories
K-705 Freestanding Bath Base
K-709 Freestanding Bath Base
K-1172 Adjustable Feet
K-7159 1-1/2" Pop-up Bath Drain
K-128 Riser Tubes
K-707 Hardwood Towel Rails
K-708 Brackets and End Caps
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/Whirlpool Footstop
K-7265 Clearflo Bath Drain
K-110-3 Floor Or Wall-Mount Bath Faucet
K-110-4 Floor Or Wall-mount Bath Faucet
K-110-9B Floor Or Wall-mount Bath Faucet
K-16210-4A Bath Faucet
K-331-4M Bath Faucet
K-6905-4 Bath Faucet
Vintage
®
Freestanding Bath
K-700
Codes/Standards
ASME A112.19.1/CSA B45.2
ASTM F462
KOHLER Enameled Cast Iron Bath and
Shower Base Lifetime Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
SandbarG9
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-10-2017 03:37
Page 2
1-1/2" Bath Drain
72" (1829 mm)
4" (102 mm)
4"
(102 mm)
36" (914 mm)
42" (1067 mm)
15/16"
(24 mm)
3"
(76 mm)
21-3/16"
(538 mm)
10-3/4"
(273 mm)
1-1/8"
(29 mm)
18-1/4"
(464 mm)
No change in measurements if connected
with drain illustrated. ( K-7159)
2-3/8" (60 mm)
Lumbar
Angle 29°
2-7/8"
(73 mm)
13-1/4"
(337 mm)
Vintage
®
Freestanding Bath
K-700
Technical Information
All product dimensions are nominal.
Drop-in, FreestandingInstallation:
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-10-2017 03:37
CenterDrain location:
44" x 24" (1118 mm x 610 mm)Basin area, bottom:
60" x 32" (1524 mm x 813 mm)Basin area, top:
485 lbs (220 kg)Weight:
57 lbs/ft² (278.3 kg/m²)Minimum floor load:
15" (381 mm)Water depth:
82 gal (310.4 L)Water capacity:
Drop-in, 106594-7, required, includedTemplate:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
