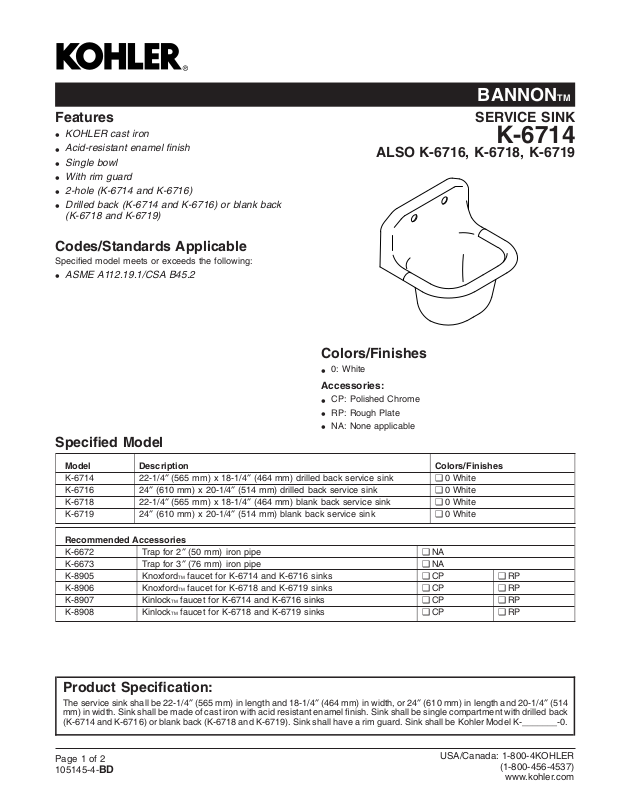

Page 1
BANNONTM
Features
KOHLER cast iron
•
Acid-resistant enamel finish
•
Single bowl
•
With rim guard
•
2-hole (K-6714 and K-6716)
•
Drilled back (K-6714 and K-6716) or blank back
•
(K-6718 and K-6719)
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.1/CSA B45.2
•
Specified Model
ALSO K-6716, K-6718, K-6719
Colors/Finishes
0: White
•
Accessories:
CP: Polished Chrome
•
RP: Rough Plate
•
NA: None applicable
•
SERVICE SINK
K-6714
Model Description Colors/Finishes
K-6714 22-1/4″ (565 mm) x 18-1/4″ (464 mm) drilled back service sink ❑ 0 White
K-6716 24″ (610 mm) x 20-1/4″ (514 mm) drilled back service sink ❑ 0 White
K-6718 22-1/4″ (565 mm) x 18-1/4″ (464 mm) blank back service sink ❑ 0 White
K-6719 24″ (610 mm) x 20-1/4″ (514 mm) blank back service sink ❑ 0 White
Recommended Accessories
K-6672 Trap for 2″ (50 mm) iron pipe ❑ NA
K-6673 Trap for 3″ (76 mm) iron pipe ❑ NA
K-8905 Knoxford
K-8906 Knoxford
K-8907 Kinlock
K-8908 Kinlock
TM faucet for K-6714 and K-6716 sinks ❑ CP ❑ RP
TM faucet for K-6718 and K-6719 sinks ❑ CP ❑ RP
TM faucet for K-6714 and K-6716 sinks ❑ CP ❑ RP
TM faucet for K-6718 and K-6719 sinks ❑ CP ❑ RP
Product Specification:
The service sink shall be 22-1/4″ (565 mm) in length and 18-1/4″ (464 mm) in width, or 24″ (610 mm) in length and 20-1/4″ (514
mm) in width. Sink shall be made of cast iron with acid resistant enamel finish. Sink shall be single compartment with drilled back
(K-6714 and K-6716) or blank back (K-6718 and K-6719). Sink shall have a rim guard. Sink shall be Kohler Model K-_______-0.
Page 1 of 2
105145-4-
BD
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
BANNONTM
Technical Information
Fixture*: Basin area Water
Sink (K-6714 and
K-6718)
Sink (K-6716 and
K-6719)
Drain hole Ø 2-7/8″ (73 mm)
Faucet holes Ø 1-1/2″ (38 mm)
Rim guard holes Ø 5/8″ (16 mm)
* Approximate measurements for comparison only.
Included Components:
Hangers 64515
Stainless steel rim guard
(K-6714 and K-6718)
Stainless steel rim guard
(K-6716 and K-6719)
(B)
18″ (457 mm)
x14″ (356 mm)
20″ (508 mm)
x16″ (406 mm)
44603
44602
K-6714
K-6716
1/2"
Hot
depth
12″
(305 mm)
12″
(305 mm)
(A)
12" (305 mm)
Installation Notes
Install this product according to the installation guide.
1/2" Cold
1/2"
Hot
K-6718
K-6719
(A)
4"
(102 mm)
1/2" Cold
5-1/2"
(C)
(141 mm)
10"
(254 mm)
BANNONTM SERVICE SINK
Page2of2
105145-4-
BD
10"
(254 mm)
13"
(330 mm)
2" or 3"
IPS Tap Outlet
7-1/2"
(191 mm)
4"
(102 mm)
28"
(711 mm)
K-6714, K-6718
K-6716, K-6719
Product Diagram
36"
(914 mm)
14"
(356 mm)
12" (305 mm)
10"
(254 mm)
(A)(B)(C)
22-1/4"
(565 mm)
24"
(610 mm)
18-1/4"
(464 mm)
20-1/4"
(514 mm)
8-1/2"
(216 mm)
9-1/2"
(241 mm)
