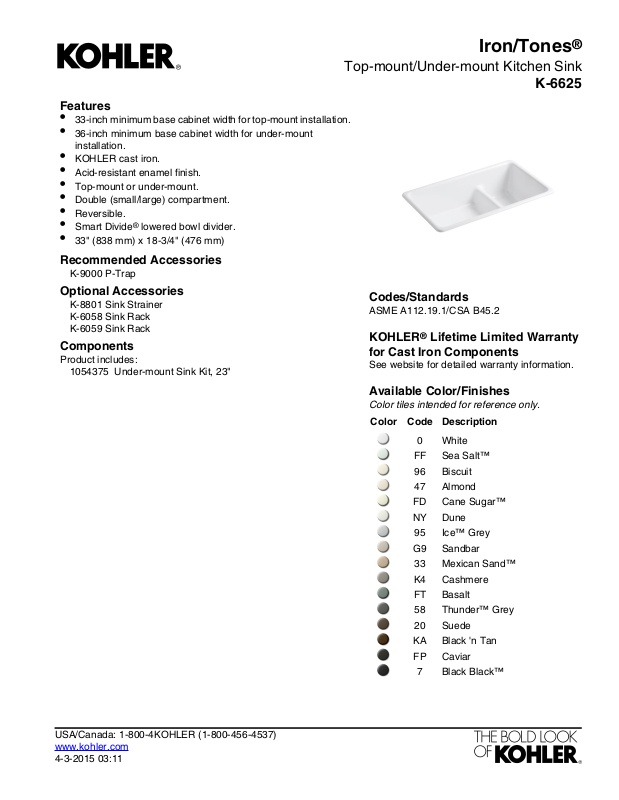

Page 1
Features
•
33-inch minimum base cabinet width for top-mount installation.
•
36-inch minimum base cabinet width for under-mount
installation.
•
KOHLER cast iron.
•
Acid-resistant enamel finish.
•
Top-mount or under-mount.
•
Double (small/large) compartment.
•
Reversible.
•
Smart Divide® lowered bowl divider.
•
33" (838 mm) x 18-3/4" (476 mm)
Recommended Accessories
K-9000 P-Trap
Iron/Tones
®
Top-mount/Under-mount Kitchen Sink
K-6625
Optional Accessories
K-8801 Sink Strainer
K-6058 Sink Rack
K-6059 Sink Rack
Components
Product includes:
1054375 Under-mount Sink Kit, 23"
Codes/Standards
ASME A112.19.1/CSA B45.2
KOHLER® Lifetime Limited Warranty
for Cast Iron Components
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Sea Salt™FF
Biscuit96
Almond47
Cane Sugar™FD
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
BasaltFT
Thunder™ Grey58
Suede20
Black 'n TanKA
CaviarFP
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-3-2015 03:11
Page 2
9-3/8
Iron/Tones
®
Top-mount/Under-mount Kitchen Sink
K-6625

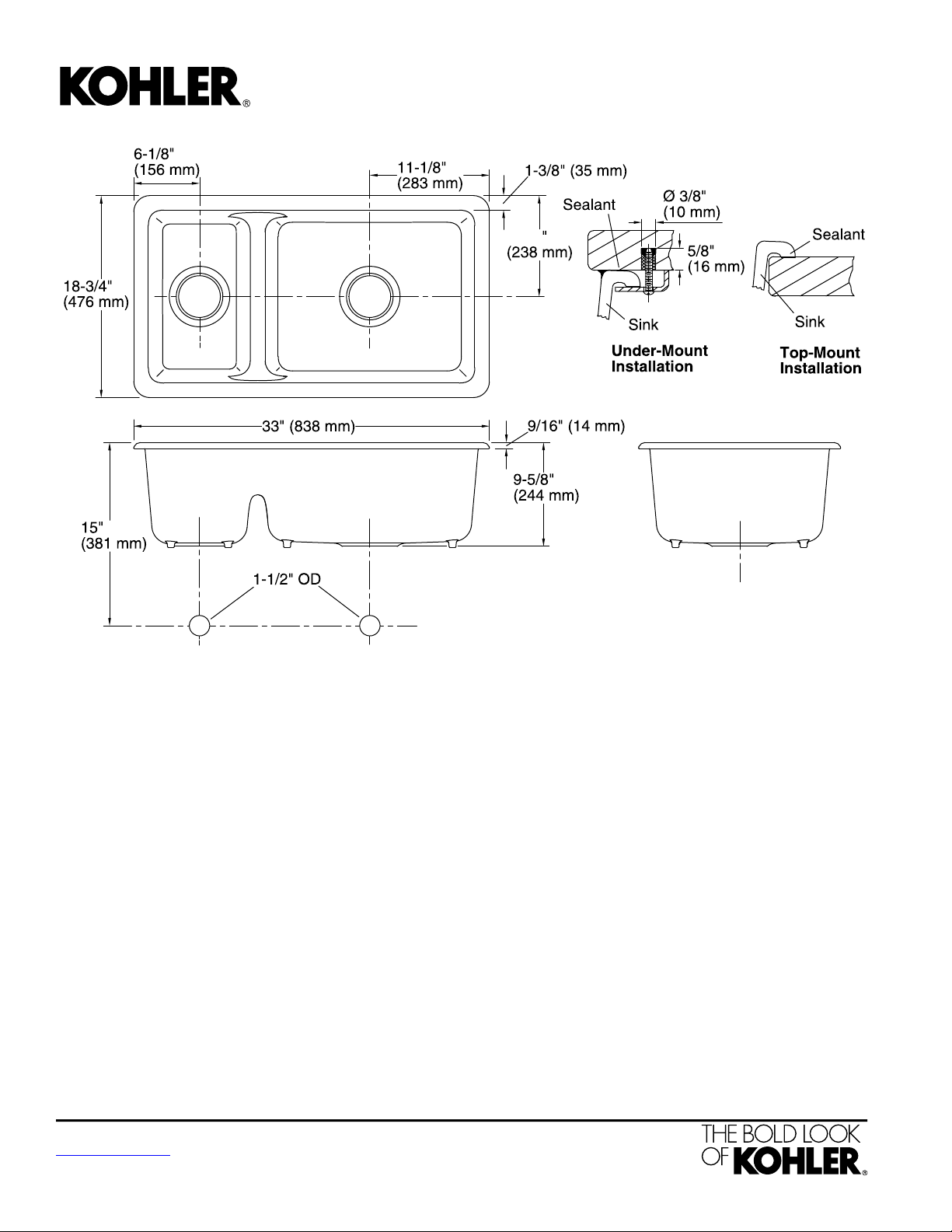

Technical Information
All product dimensions are nominal.
OffsetBowl configuration:
Top-mount, Under-mountInstallation:
Bowl area (Right)
Bowl area (Left)
Template:
Width: 16" (406 mm)
Water depth: 9" (229 mm)
Width: 16" (406 mm)
Water depth: 9" (229 mm)
3-7/8" (98 mm)Drain hole:
Top-mount/Under-mount, 1043168-7,
required, included
Notes
Install this product according to the installation
guide.
NOTICE: The countertop manufacturer or cutter
must use the cut-out template provided with the
product, or a current one provided by the Kohler
Co. (Call 1-800-4-KOHLER.) Kohler Co. is not
responsible for cut-out errors when the incorrect
cut-out template is used.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-3-2015 03:11
