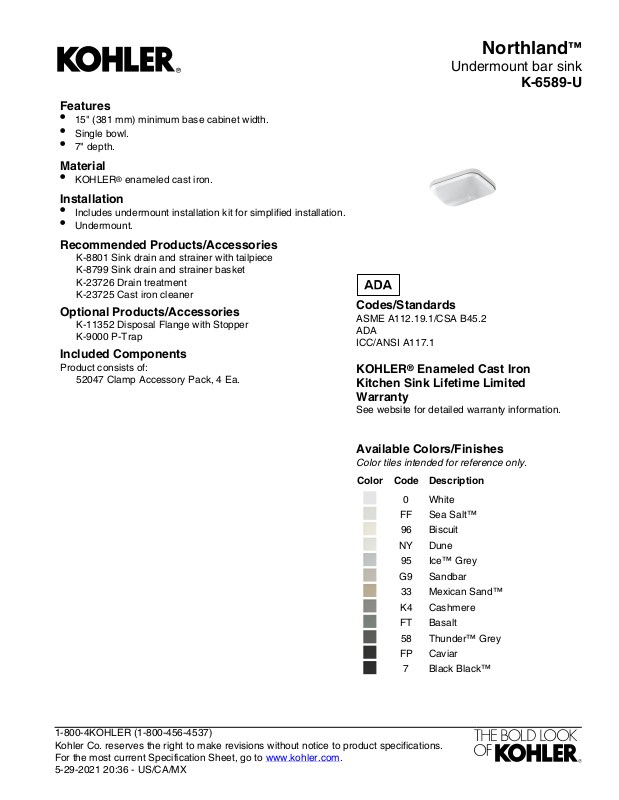

Page 1
Northland
Features
•
15" (381 mm) minimum base cabinet width.
•
Single bowl.
•
7" depth.
Material
•
KOHLER® enameled cast iron.
Installation
•
Includes undermount installation kit for simplified installation.
•
Undermount.
Recommended Products/Accessories
K-8801 Sink drain and strainer with tailpiece
K-8799 Sink drain and strainer basket
K-23726 Drain treatment
K-23725 Cast iron cleaner
Optional Products/Accessories
K-11352 Disposal Flange with Stopper
K-9000 P-Trap
Included Components
Product consists of:
52047 Clamp Accessory Pack, 4 Ea.
Codes/Standards
ASME A112.19.1/CSA B45.2
ADA
ICC/ANSI A117.1
KOHLER® Enameled Cast Iron
Kitchen Sink Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
FF Sea Salt™
96 Biscuit
NY Dune
95 Ice™ Grey
G9 Sandbar
33 Mexican Sand™
K4 Cashmere
FT Basalt
58 Thunder™ Grey
FP Caviar
7 Black Black™
™
Undermount bar sink
K-6589-U
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 20:36 - US/CA/MX
Page 2
Northland
3/8" (10 mm)
7-5/8"
(194 mm)
1-1/2" OD
13"
(330 mm)
15" (381 mm)
7-1/2"
(191 mm)
6-1/8"
(156 mm)
12-3/8"
(314 mm)
5/8"
(16 mm)
3/8" (10 mm)
Sealant
Sink
Marble Slab
Installation
Sealant
Sink
Wood Counter
Installation
Note: Waterproof the unprotected
overhang area on the
underside of a wood counter.
Technical Information
All product dimensions are nominal.
Bowl configuration: Single
Installation: Under-mount
Min. base cabinet
width:
15" (381 mm)
Bowl area: Length: 12" (305 mm)
Width: 9-1/4" (235 mm)
Bowl depth: 7" (178 mm)
Drain hole: 3-7/8" (98 mm)
Template: 1086707-7, required, included
Notes
Install this product according to the installation
instructions.
Supplied bowl clamp assemblies require 1" (25
mm) minimum countertop thickness. Installer
must supply anchors for thinner countertops.
For multiple bowl under-mount installations,
a minimum distance of 3-3/8" (86 mm) is
required between bowls. Countertop supplier to
determine required support.
ADA compliant when installed to the specific
requirements of these regulations.
ADA permits a parallel approach to wet bars.
™
Undermount bar sink
K-6589-U
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 20:36 - US/CA/MX
