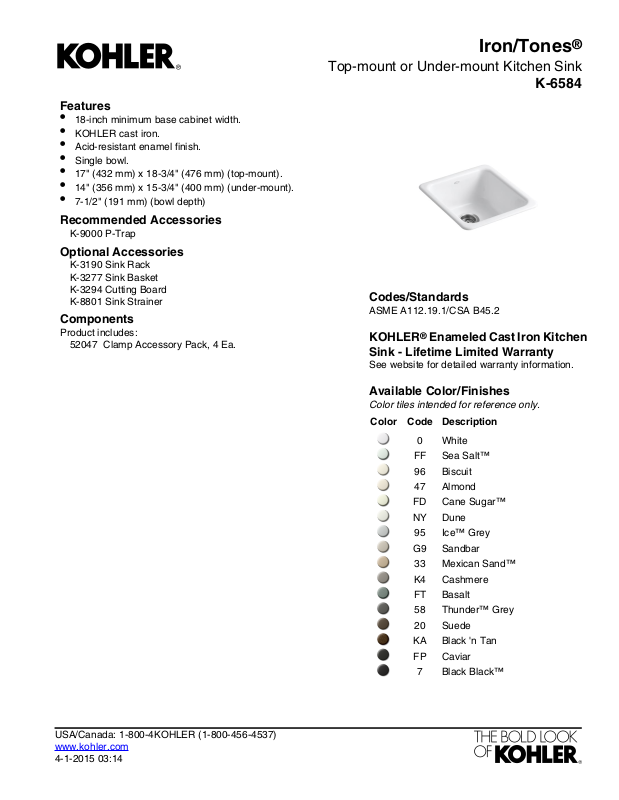

Page 1
Features
•
18-inch minimum base cabinet width.
•
KOHLER cast iron.
•
Acid-resistant enamel finish.
•
Single bowl.
•
17" (432 mm) x 18-3/4" (476 mm) (top-mount).
•
14" (356 mm) x 15-3/4" (400 mm) (under-mount).
•
7-1/2" (191 mm) (bowl depth)
Recommended Accessories
K-9000 P-Trap
Optional Accessories
K-3190 Sink Rack
K-3277 Sink Basket
K-3294 Cutting Board
K-8801 Sink Strainer
Components
Product includes:
52047 Clamp Accessory Pack, 4 Ea.
Iron/Tones
®
Top-mount or Under-mount Kitchen Sink
K-6584
Codes/Standards
ASME A112.19.1/CSA B45.2
KOHLER® Enameled Cast Iron Kitchen
Sink - Lifetime Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Sea Salt™FF
Biscuit96
Almond47
Cane Sugar™FD
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
BasaltFT
Thunder™ Grey58
Suede20
Black 'n TanKA
CaviarFP
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-1-2015 03:14
Page 2

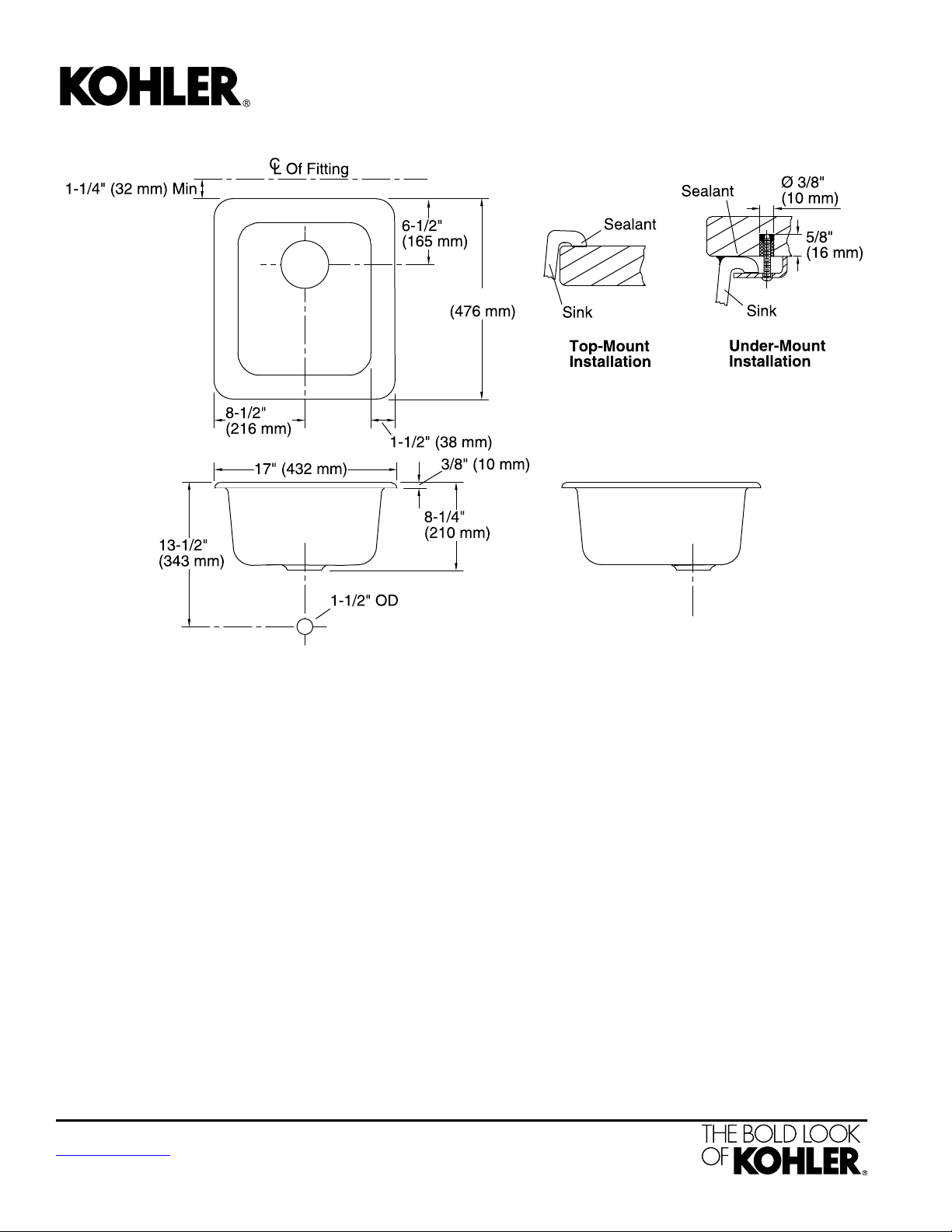

18-3/4"
Iron/Tones
®
Top-mount or Under-mount Kitchen Sink
K-6584
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Top-mount, Under-mountInstallation:
Bowl area
Template:
Length: 14" (356 mm)
Width: 16" (406 mm)
Bowl depth: 7-1/2" (191 mm)
3-7/8" (98 mm)Drain hole:
Top-mount/Under-mount, 114332-7,
required, included
Notes
Install this product according to the installation
guide.
Refer to install instructions included with fixture
before beginning installation.
Supplied bowl clamp assemblies require 1" (25
mm) minimum countertop thickness. Installer
must supply hardware for thinner countertops.
For multiple bowl under-mount installations, a
minimum distance of 3-3/8" (86 mm) is required
between bowls. Countertop supplier to determine
required support.
