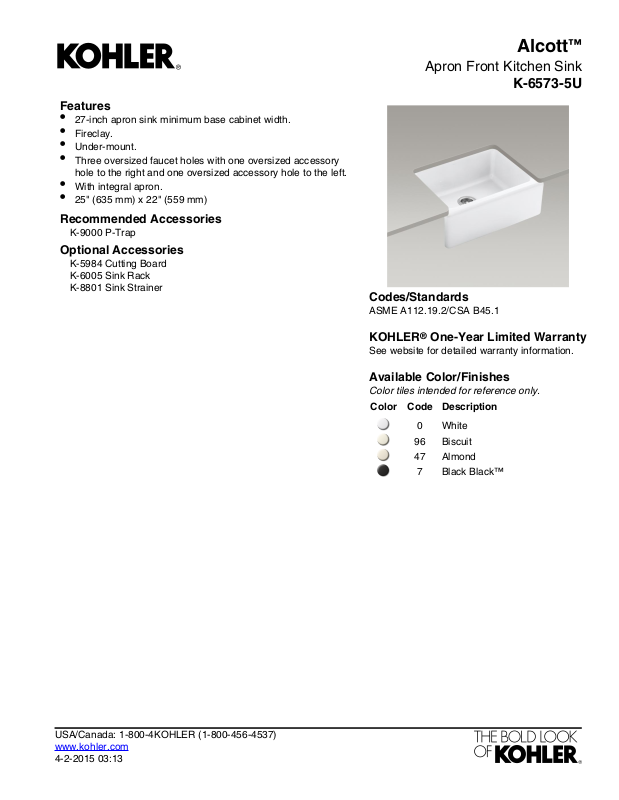

Features
•
27-inch apron sink minimum base cabinet width.
•
Fireclay.
•
Under-mount.
•
Three oversized faucet holes with one oversized accessory
hole to the right and one oversized accessory hole to the left.
•
With integral apron.
•
25" (635 mm) x 22" (559 mm)
Recommended Accessories
K-9000 P-Trap
Optional Accessories
K-5984 Cutting Board
K-6005 Sink Rack
K-8801 Sink Strainer
Alcott
™
Apron Front Kitchen Sink
K-6573-5U
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-2-2015 03:13
Page 2
Alcott
™
Apron Front Kitchen Sink
K-6573-5U
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Tile-inInstallation:
27" (686 mm)Min. base cabinet
width:
Bowl area (Only)
Length: 21" (533 mm)
Width: 15" (381 mm)
Bowl depth: 8" (203 mm)
Water depth: 8" (203 mm)
5Number of deck holes:
2-1/2" (64 mm)Faucet hole(s):
3-7/8" (98 mm)Drain hole:
Notes
Install this product according to the installation
guide.
Due to the special nature of this installation,
Kohler Co. recommends that an experienced
cabinet maker use the actual sink to build the
new cabinet or modify an existing cabinet.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-2-2015 03:13
