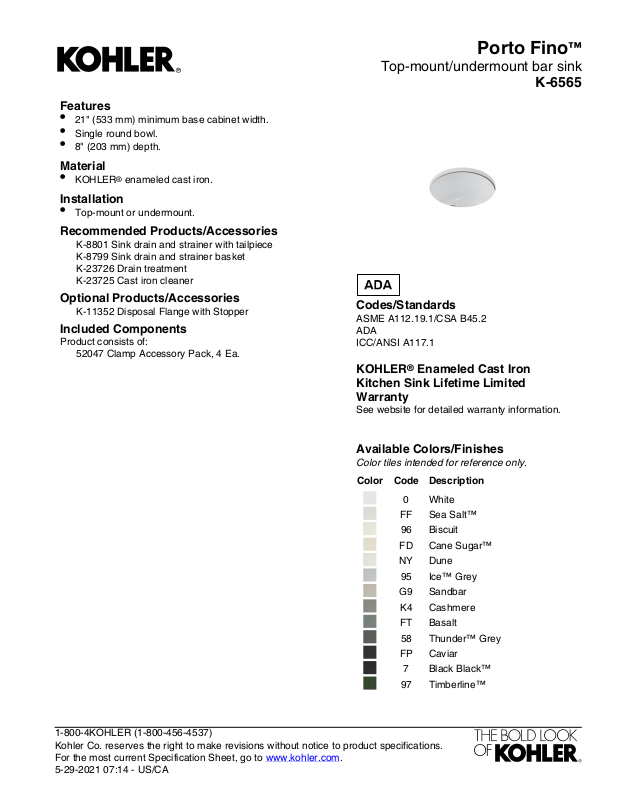

Page 1
Porto Fino
Features
•
21" (533 mm) minimum base cabinet width.
•
Single round bowl.
•
8" (203 mm) depth.
Material
•
KOHLER® enameled cast iron.
Installation
•
Top-mount or undermount.
Recommended Products/Accessories
K-8801 Sink drain and strainer with tailpiece
K-8799 Sink drain and strainer basket
K-23726 Drain treatment
K-23725 Cast iron cleaner
Optional Products/Accessories
K-11352 Disposal Flange with Stopper
Included Components
Product consists of:
52047 Clamp Accessory Pack, 4 Ea.
Codes/Standards
ASME A112.19.1/CSA B45.2
ADA
ICC/ANSI A117.1
KOHLER® Enameled Cast Iron
Kitchen Sink Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
FF Sea Salt™
96 Biscuit
FD Cane Sugar™
NY Dune
95 Ice™ Grey
G9 Sandbar
K4 Cashmere
FT Basalt
58 Thunder™ Grey
FP Caviar
7 Black Black™
97 Timberline™
™
Top-mount/undermount bar sink
K-6565
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 07:14 - US/CA
Page 2
Porto Fino
1-1/2" OD
8-5/8"
(219 mm)
3/8" (10 mm)
14-1/2"
(362 mm)
Ø 18-3/8" (467 mm)
9-3/16"
(233 mm)
5-3/8"
(137 mm)
Ø 15" (381 mm)
Technical Information
All product dimensions are nominal.
Bowl configuration: Single
Installation: Top-mount, Under-mount
Min. base cabinet
width:
21" (533 mm)
Bowl area (Only): Length: 15" (381 mm)
Width: 15" (381 mm)
Bowl depth: 8" (203 mm)
Drain hole: 3-5/8" (92 mm)
Template: 112355-7, required, included
Notes
Install this product according to the installation
instructions.
ADA compliant when installed to the specific
requirements of these regulations.
ADA permits a parallel approach to wet bars.
™
Top-mount/undermount bar sink
K-6565
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 07:14 - US/CA
