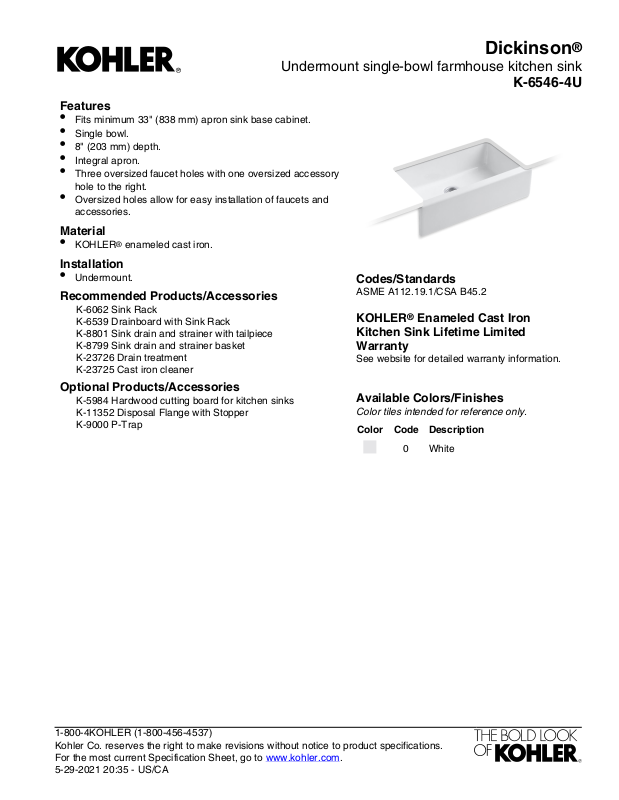

Page 1
Dickinson
Features
•
Fits minimum 33" (838 mm) apron sink base cabinet.
•
Single bowl.
•
8" (203 mm) depth.
•
Integral apron.
•
Three oversized faucet holes with one oversized accessory
hole to the right.
•
Oversized holes allow for easy installation of faucets and
accessories.
Material
•
KOHLER® enameled cast iron.
Installation
•
Undermount.
Recommended Products/Accessories
K-6062 Sink Rack
K-6539 Drainboard with Sink Rack
K-8801 Sink drain and strainer with tailpiece
K-8799 Sink drain and strainer basket
K-23726 Drain treatment
K-23725 Cast iron cleaner
Optional Products/Accessories
K-5984 Hardwood cutting board for kitchen sinks
K-11352 Disposal Flange with Stopper
K-9000 P-Trap
Codes/Standards
ASME A112.19.1/CSA B45.2
KOHLER® Enameled Cast Iron
Kitchen Sink Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
®
Undermount single-bowl farmhouse kitchen sink
K-6546-4U
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 20:35 - US/CA
Page 2
Dickinson
3/8"
(10 mm)
5/8"
(16 mm)
22-1/8" (562 mm)
10"
(254 mm)
4-1/4"
(108 mm)
1-15/16"
(49 mm)
4"
(102 mm)
16-1/2"
(419 mm)
1-3/4"
(44 mm)
8-1/2"
(216 mm)
8-5/8"
(219 mm)
14"
(356 mm)
33" (838 mm)
2-5/8"
(67 mm)
1-1/2" OD
Technical Information
All product dimensions are nominal.
Bowl configuration: Single
Installation: Under-mount
Bowl area (Only): Length: 29-1/2" (749 mm)
Width: 15-1/4" (387 mm)
Bowl depth: 8-5/8" (220 mm)
Water depth: 8" (203 mm)
Number of deck
holes:
4
Faucet hole spacing: 4" (102 mm)
Faucet hole(s): 2-3/8" (60 mm)
Notes
Install this product according to the installation
instructions.
Due to the special nature of this installation,
Kohler Co. recommends that an experienced
cabinet maker use the actual sink to build the
new cabinet or modify an existing cabinet.
For under-mount installations, allow a 3/4" (19
mm) reveal to support the K-5984 cutting
board.
®
Undermount single-bowl farmhouse kitchen sink
K-6546-4U
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 20:35 - US/CA
