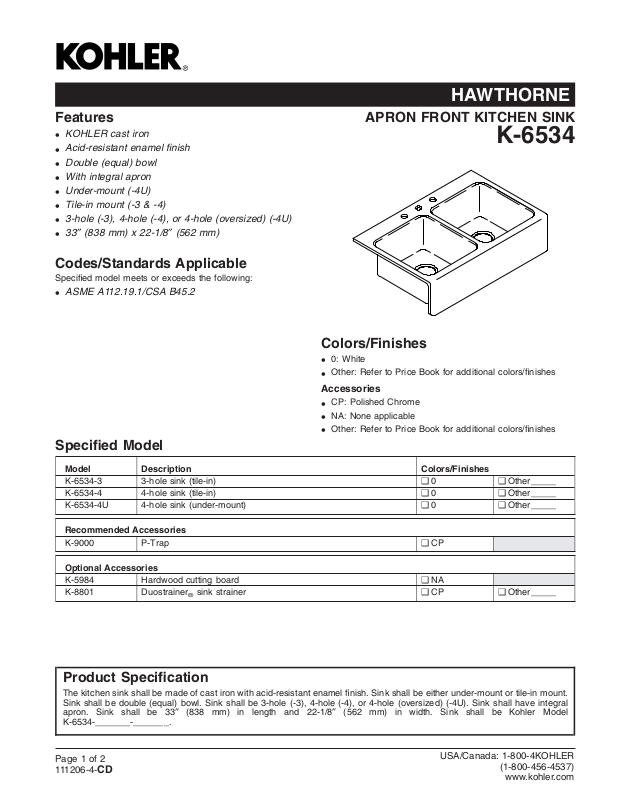

Kohler KOH4436 Specification

HAWTHORNE

Features

KOHLER cast iron

•

Acid-resistant enamel finish

•

Double (equal) bowl

•

With integral apron

•

Under-mount (-4U)

•

Tile-in mount (-3 & -4)

•

3-hole (-3), 4-hole (-4), or 4-hole (oversized) (-4U)

•
33″ (838 mm) x 22-1/8″ (562 mm)

•

Codes/Standards Applicable

Specified model meets or exceeds the following:

ASME A112.19.1/CSA B45.2

•

Specified Model

APRON FRONT KITCHEN SINK

K-6534

Colors/Finishes

0: White

•

Other: Refer to Price Book for additional colors/finishes

•

Accessories

CP: Polished Chrome

•

NA: None applicable

•

Other: Refer to Price Book for additional colors/finishes

•

Model Description Colors/Finishes

K-6534-3 3-hole sink (tile-in) ❑ 0 ❑ Other_____
K-6534-4 4-hole sink (tile-in) ❑ 0 ❑ Other_____
K-6534-4U 4-hole sink (under-mount) ❑ 0 ❑ Other_____

Recommended Accessories

K-9000 P-Trap ❑ CP

Optional Accessories

K-5984 Hardwood cutting board ❑ NA

K-8801 Duostrainer

sink strainer ❑ CP ❑ Other_____

®

Product Specification

The kitchen sink shall be made of cast iron with acid-resistant enamel finish. Sink shall be either under-mount or tile-in mount.
Sink shall be double (equal) bowl. Sink shall be 3-hole (-3), 4-hole (-4), or 4-hole (oversized) (-4U). Sink shall have integral
apron. Sink shall be 33″ (838 mm) in length and 22-1/8″ (562 mm) in width. Sink shall be Kohler Model
K-6534-_______-_______.

Page 1 of 2
111206-4-

CD

USA/Canada: 1-800-4KOHLER

(1-800-456-4537)

www.kohler.com

HAWTHORNE

Technical Information

Fixture*:
Bowl area 14″ (356 mm) x 15″ (381 mm)
Water depth 8″ (203 mm)
Drain holes Ø 3-5/8″ (92 mm)
Faucet holes,

under-mount
Faucet holes, tile-in Ø 1-3/8″ (35 mm)
* Approximate measurements for comparison only.

16-1/2"
(419 mm)

1-3/4"
(44 mm)

10-1/2"
(267 mm)

Ø 2-3/8″ (60 mm)

K-6534-4

4" (102 mm)

12"
(305 mm)

33" (838 mm)

2" (51 mm)

4-1/4"
(108 mm)

2-1/4"
(57 mm)

Installation Notes

Install this product according to the installation guide.

Due to the special nature of this installation, Kohler Co.
recommends that an experienced cabinet maker use the
actual sink to build the new cabinet or modify an existing
cabinet.

For under-mount installations, allow a 3/4″ (19 mm) reveal to
support the K-5984 cutting board.

K-6534-4U

2"
(51 mm)

10"
(254 mm)

22-1/8"
(562 mm)

K-6534-3

2"
(51 mm)

4" (102 mm)

4-1/4"
(108 mm)

4" (102 mm)

4-1/4"
(108 mm)

14"
(356 mm)

1-1/2" OD

HAWTHORNE APRON FRONT KITCHEN SINK
Page2of2

111206-4-

CD

8-5/8"
(219 mm)

8-3/4"
(222 mm)

Product Diagram

3/8"
(10 mm)

5/8"
(16 mm)
