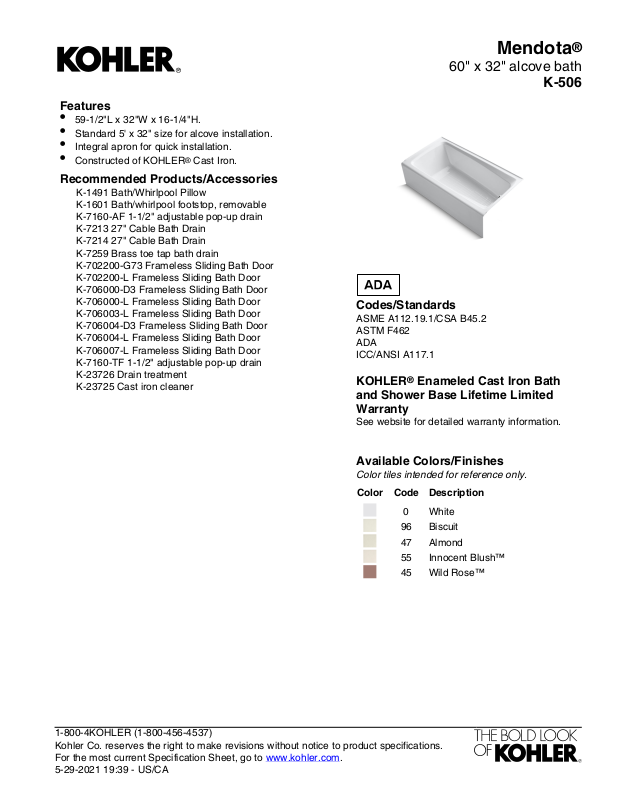

Page 1
Mendota
Features
•
59-1/2"L x 32"W x 16-1/4"H.
•
Standard 5' x 32" size for alcove installation.
•
Integral apron for quick installation.
•
Constructed of KOHLER® Cast Iron.
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-7160-AF 1-1/2" adjustable pop-up drain
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-7259 Brass toe tap bath drain
K-702200-G73 Frameless Sliding Bath Door
K-702200-L Frameless Sliding Bath Door
K-706000-D3 Frameless Sliding Bath Door
K-706000-L Frameless Sliding Bath Door
K-706003-L Frameless Sliding Bath Door
K-706004-D3 Frameless Sliding Bath Door
K-706004-L Frameless Sliding Bath Door
K-706007-L Frameless Sliding Bath Door
K-7160-TF 1-1/2" adjustable pop-up drain
K-23726 Drain treatment
K-23725 Cast iron cleaner
Codes/Standards
ASME A112.19.1/CSA B45.2
ASTM F462
ADA
ICC/ANSI A117.1
KOHLER® Enameled Cast Iron Bath
and Shower Base Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
47 Almond
55 Innocent Blush™
45 Wild Rose™
®
60" x 32" alcove bath
K-506
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 19:39 - US/CA
Page 2
Mendota
Finished Wall
1-5/8" (41 mm)
15-3/8"
(391 mm)
32"
(813 mm)
8-1/2"
(216 mm)
3-1/4"
(83 mm)
1-1/2" NPT
Thread
1-1/2" Bath Drain
2-7/8"
(73 mm)
1/4" (6 mm)
3" (76 mm)
Finished Floor
1/2" (13 mm)
Sub Floor
16-1/4"
(413 mm)
Finished Wall
7/8" (22 mm)
No change in measurements
if connected with drain illustrated.
(K-7160-TF)
Lumbar
Angle 28°
60" (1524 mm)
Technical Information
All product dimensions are nominal.
Installation: Three-wall alcove
Drain location: Right
Basin area, bottom: 46" x 20" (1168 mm x 508 mm)
Basin area, top: 54" x 24" (1372 mm x 610 mm)
Weight: 351 lbs (159.2 kg)
Minimum floor load: 56 lbs/ft² (273.4 kg/m²)
Water depth: 10-7/8" (276 mm)
Water capacity: 45 gal (170.3 L)
Minimum flat for
door:
2" (51 mm)
Notes
Measure your actual product for rough-in
details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
ADA compliant when installed to the specific
requirements of these regulations.
®
60" x 32" alcove bath
K-506
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 19:39 - US/CA
