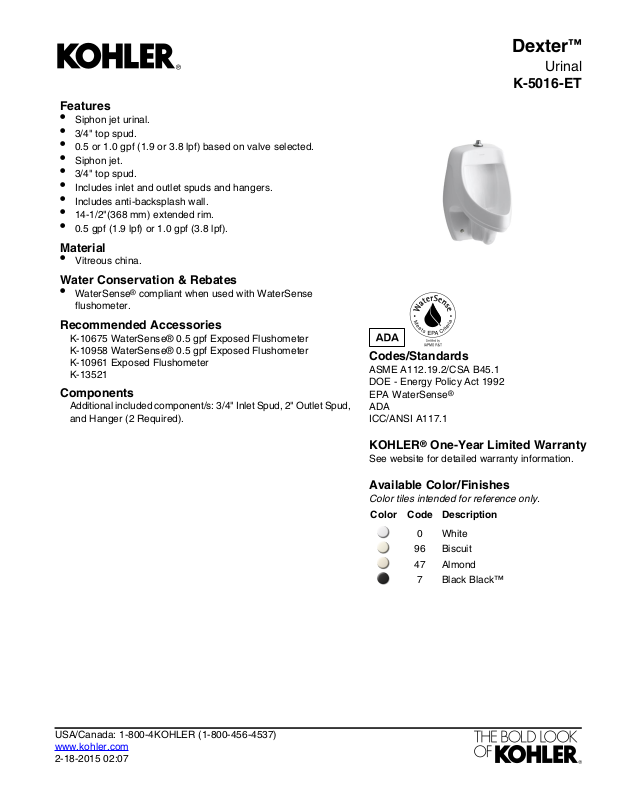

Page 1
Features
•
Siphon jet urinal.
•
3/4" top spud.
•
0.5 or 1.0 gpf (1.9 or 3.8 lpf) based on valve selected.
•
Siphon jet.
•
3/4" top spud.
•
Includes inlet and outlet spuds and hangers.
•
Includes anti-backsplash wall.
•
14-1/2"(368 mm) extended rim.
•
0.5 gpf (1.9 lpf) or 1.0 gpf (3.8 lpf).
Material
•
Vitreous china.
Water Conservation & Rebates
•
WaterSense® compliant when used with WaterSense
flushometer.
Recommended Accessories
K-10675 WaterSense® 0.5 gpf Exposed Flushometer
K-10958 WaterSense® 0.5 gpf Exposed Flushometer
K-10961 Exposed Flushometer
K-13521
Components
Additional included component/s: 3/4" Inlet Spud, 2" Outlet Spud,
and Hanger (2 Required).
Codes/Standards
ASME A112.19.2/CSA B45.1
DOE - Energy Policy Act 1992
EPA WaterSense
ADA
ICC/ANSI A117.1
®
Dexter
™
Urinal
K-5016-ET
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:07
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
Black Black™7
Page 2
14-1/2"
Dexter
™
Urinal
K-5016-ET
Technical Information
All product dimensions are nominal.
Siphon jetFlush outlet
technology:
3/4", inlet, TopSpud size:
0.5 gal (1.9 L)Max. Water per Flush:
Notes
Install this product according to the installation
guide.
Refer to manufacturer’s instructions and local
codes for flushometer requirements.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:07
