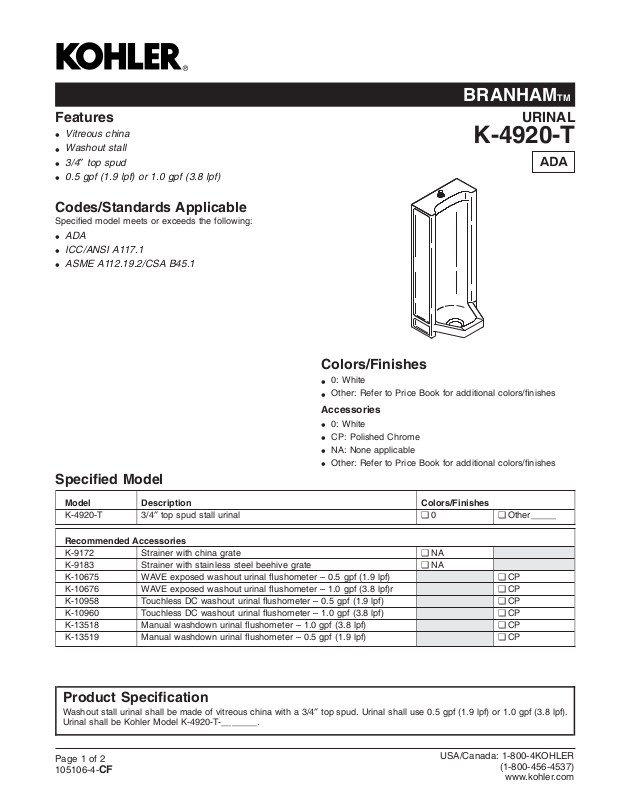

Page 1
BRANHAMTM
Features
Vitreous china
•
Washout stall
•
3/4″ top spud
•
0.5 gpf (1.9 lpf) or 1.0 gpf (3.8 lpf)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
ICC/ANSI A117.1
•
ASME A112.19.2/CSA B45.1
•
Specified Model
URINAL
K-4920-T
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
0: White
•
CP: Polished Chrome
•
NA: None applicable
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-4920-T 3/4″ top spud stall urinal ❑ 0 ❑ Other_____
Recommended Accessories
K-9172 Strainer with china grate ❑ NA
K-9183 Strainer with stainless steel beehive grate ❑ NA
K-10675 WAVE exposed washout urinal flushometer – 0.5 gpf (1.9 lpf) ❑ CP
K-10676 WAVE exposed washout urinal flushometer – 1.0 gpf (3.8 lpf)r ❑ CP
K-10958 Touchless DC washout urinal flushometer – 0.5 gpf (1.9 lpf) ❑ CP
K-10960 Touchless DC washout urinal flushometer – 1.0 gpf (3.8 lpf) ❑ CP
K-13518 Manual washdown urinal flushometer – 1.0 gpf (3.8 lpf) ❑ CP
K-13519 Manual washdown urinal flushometer – 0.5 gpf (1.9 lpf) ❑ CP
Product Specification
Washout stall urinal shall be made of vitreous china with a 3/4″ top spud. Urinal shall use 0.5 gpf (1.9 lpf) or 1.0 gpf (3.8 lpf).
Urinal shall be Kohler Model K-4920-T-_______.
Page 1 of 2
105106-4-
CF
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
BRANHAMTM
Optional Accessories
K-4931 Seam cover [for urinal set on 21″ (533 mm) centers] ❑ 0 ❑ Other_____
K-4932 Seam cover [for urinal set on 24″ (610 mm) centers] ❑ 0 ❑ Other_____
K-13686 Touchless battery-powered urinal flushometer, fixture mounted ❑ G
Technical Information
Fixture:
Configuration Top spud
Water per flush 0.5 gal (1.9 L) or 1.0 gal (3.8 L)*
Spud inlet size 3/4″
* Designed to flush with 0.5 gal (1.9 L) or 1.0 gal (3.8 L)
of water when installed with a water-saving flushometer.
8"
(203 mm)
3"
(76 mm)
Included components:
Spud 18774
Installation Notes
Install this product according to the installation guide.
For proper drainage, install lip of urinal below floor level.
Refer to manufacturer’s instructions and local codes for
flushometer requirements.
Will comply with ADA, ICC/ANSI A117.1 when installed per
Section 605 Urinals of the Act.
18-1/4"
3/4" Spud
(464 mm)
BRANHAMTM URINAL
Page2of2
105106-4-
CF
8-1/2"
(216 mm)
38-1/2"
(978 mm)
Top of Lip
4" (102 mm)
1-1/2"
(38 mm)
16-1/8"
(410 mm)
