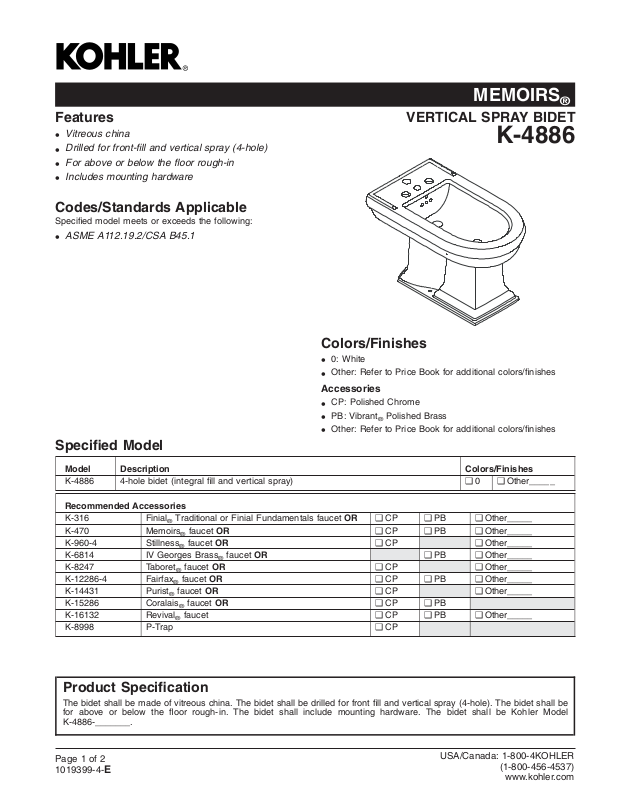

Page 1
MEMOIRS
®
Features
Vitreous china
•
Drilled for front-fill and vertical spray (4-hole)
•
For above or below the floor rough-in
•
Includes mounting hardware
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.2/CSA B45.1
•
Specified Model
VERTICAL SPRAY BIDET
K-4886
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-4886 4-hole bidet (integral fill and vertical spray) ❑ 0 ❑ Other_____
Recommended Accessories
K-316 Finial
K-470 Memoirs
K-960-4 Stillness
K-6814 IV Georges Brass
K-8247 Taboret
K-12286-4 Fairfax
K-14431 Purist
K-15286 Coralais
K-16132 Revival
K-8998 P-Trap ❑ CP
Traditional or Finial Fundamentals faucet OR ❑ CP ❑ PB ❑ Other_____
®
faucet OR ❑ CP ❑ PB ❑ Other_____
®
faucet OR ❑ CP ❑ Other_____
®
faucet OR ❑ CP ❑ Other_____
®
faucet OR ❑ CP ❑ PB ❑ Other_____
®
faucet OR ❑ CP ❑ Other_____
®
faucet OR ❑ CP ❑ PB
®
faucet ❑ CP ❑ PB ❑ Other_____
®
faucet OR ❑ PB ❑ Other_____
®
Product Specification
The bidet shall be made of vitreous china. The bidet shall be drilled for front fill and vertical spray (4-hole). The bidet shall be
for above or below the floor rough-in. The bidet shall include mounting hardware. The bidet shall be Kohler Model
K-4886-_______.
Page 1 of 2
1019399-4-
E
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
MEMOIRS
®
Technical Information
Fixture:
Configuration Faucet deck
Drain hole Ø 1-3/4″ (44 mm)
Faucet holes Ø 1-3/8″ (35 mm)
Pop-up rod hole Ø 1-1/8″ (29 mm)
Spray hole Ø 3/4″ (19 mm)
Diverter Ø 1-5/16″ (33 mm)
Included components:
Floor screws and cap bolts 1017124
Installation Notes
Install this product according to the installation guide.
3/8"
Cold
5-5/8"
(143 mm)
3/8"
Hot
*6"
(152 mm)
2-5/16"
(59 mm)
16-7/8" (429 mm)
**9-3/4"
(248 mm)
2-3/8"
(60 mm)
10-1/2"
(267 mm)
15" (381 mm)
25-9/16" (649 mm)
Above
Floor
Below
Floor
Spray Hole
8-3/16"
(208 mm)
Ø 1/2" (13 mm) Holes
C
L of Outlet
5-7/8"
(149 mm)
2-5/8"
(67 mm)
Bottom of
Rear Access Opening
*6" (152 mm) dimension required to allow for drain and
supply connection from rear of bidet.
** This dimension should be 7-7/8" (200 mm) for water
supply Below Floor rough-in.
15-1/4"
(387 mm)
15"
(381 mm)
5-1/8"
(130 mm)
3/8" Hot
1-1/4" OD
5"
(127 mm)
3/8"
Cold
3"
(76 mm)
1-1/8" (29 mm)
Front of Bidet
10-3/8"
(264 mm)
5-1/2"
5-1/2"
(140 mm)
(140 mm)
18-7/8"
(479 mm)
MEMOIRS®VERTICAL SPRAY BIDET
Page2of2
1019399-4-
E
