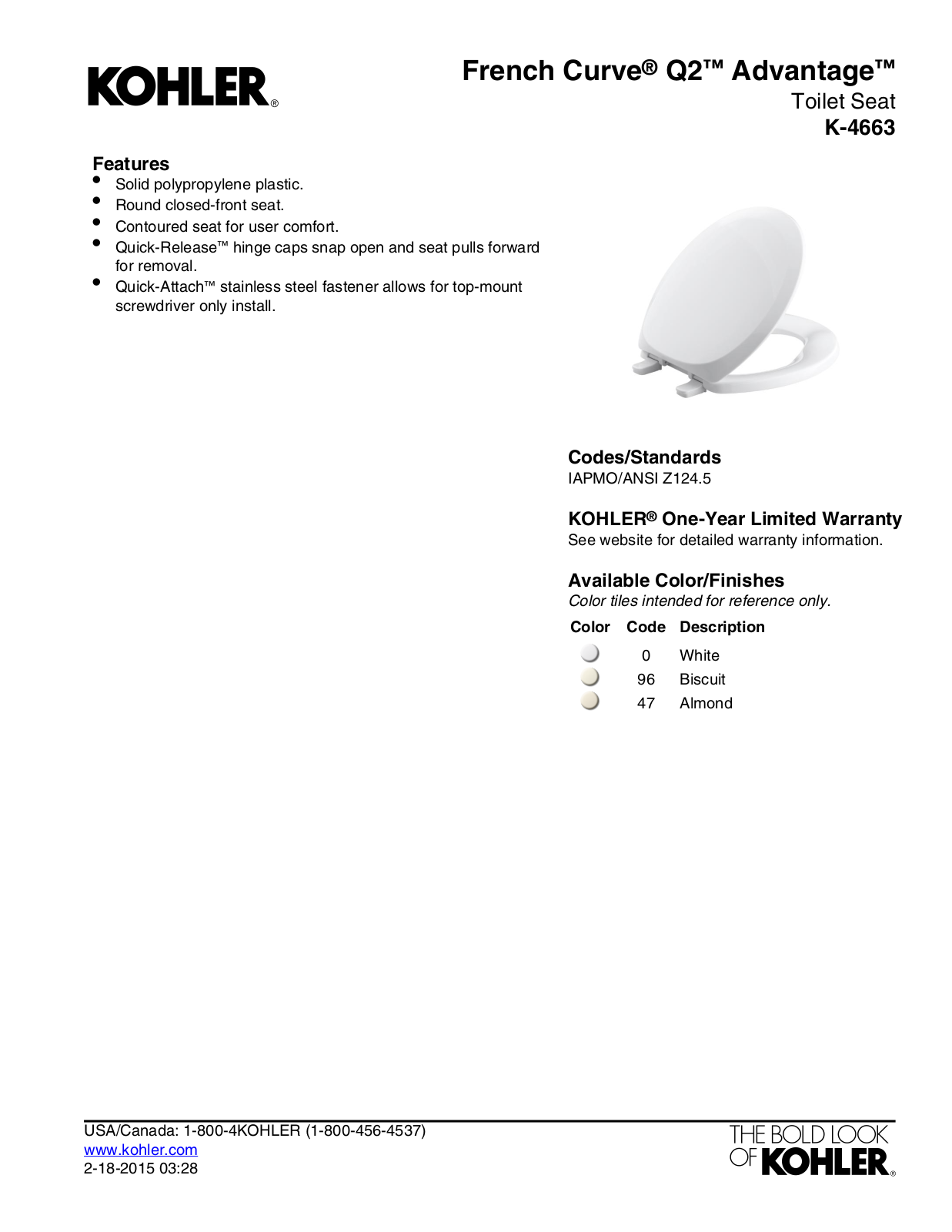

Page 1
French Curve® Q2™ Advantage
Features
•
Solid polypropylene plastic.
•
Round closed-front seat.
•
Contoured seat for user comfort.
•
Quick-Release™ hinge caps snap open and seat pulls forward
for removal.
•
Quick-Attach™ stainless steel fastener allows for top-mount
screwdriver only install.
™
Toilet Seat
K-4663
Codes/Standards
IAPMO/ANSI Z124.5
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:28

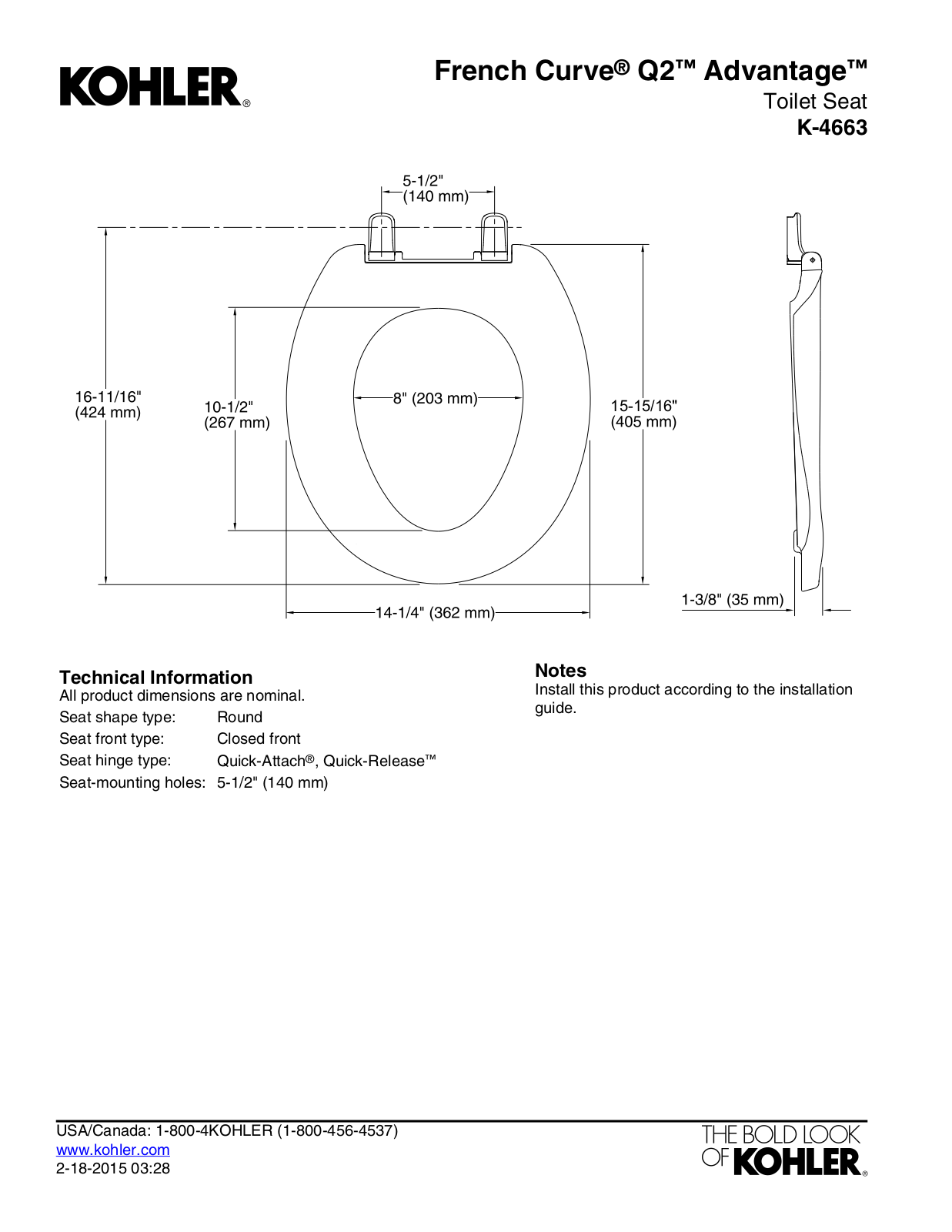

Page 2
15-15/16"
French Curve® Q2™ Advantage
Toilet Seat
K-4663
™
Technical Information
All product dimensions are nominal.
RoundSeat shape type:
Closed frontSeat front type:
Seat hinge type:
Quick-Attach®, Quick-Release
5-1/2" (140 mm)Seat-mounting holes:
Notes
Install this product according to the installation
guide.
™
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:28
