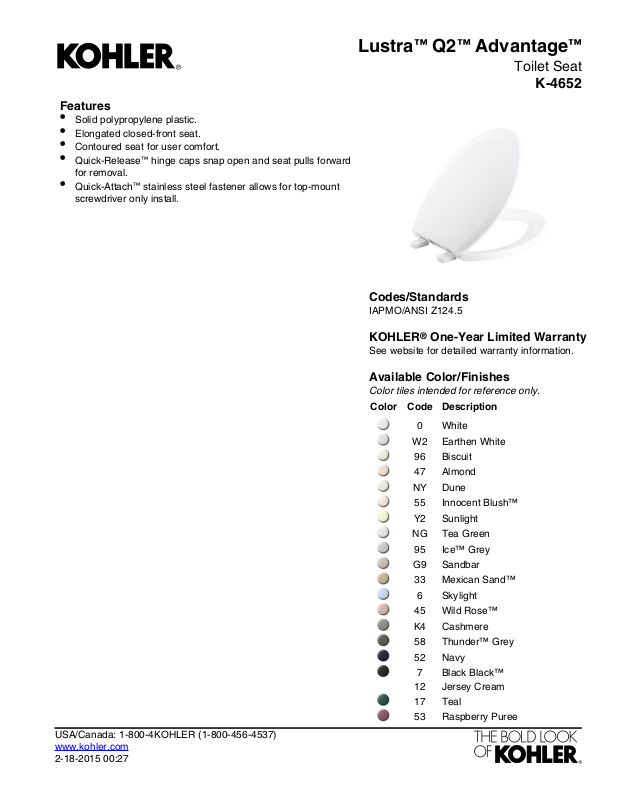

Page 1
Features
•
Solid polypropylene plastic.
•
Elongated closed-front seat.
•
Contoured seat for user comfort.
•
Quick-Release™ hinge caps snap open and seat pulls forward
for removal.
•
Quick-Attach™ stainless steel fastener allows for top-mount
screwdriver only install.
Lustra™ Q2™ Advantage
Toilet Seat
K-4652
Codes/Standards
IAPMO/ANSI Z124.5
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
™
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Earthen WhiteW2
Biscuit96
Almond47
DuneNY
Innocent Blush™55
SunlightY2
Tea GreenNG
Ice™ Grey95
SandbarG9
Mexican Sand™33
Skylight6
Wild Rose™45
CashmereK4
Thunder™ Grey58
Navy52
Black Black™7
Jersey Cream12
Teal17
Raspberry Puree53
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:27

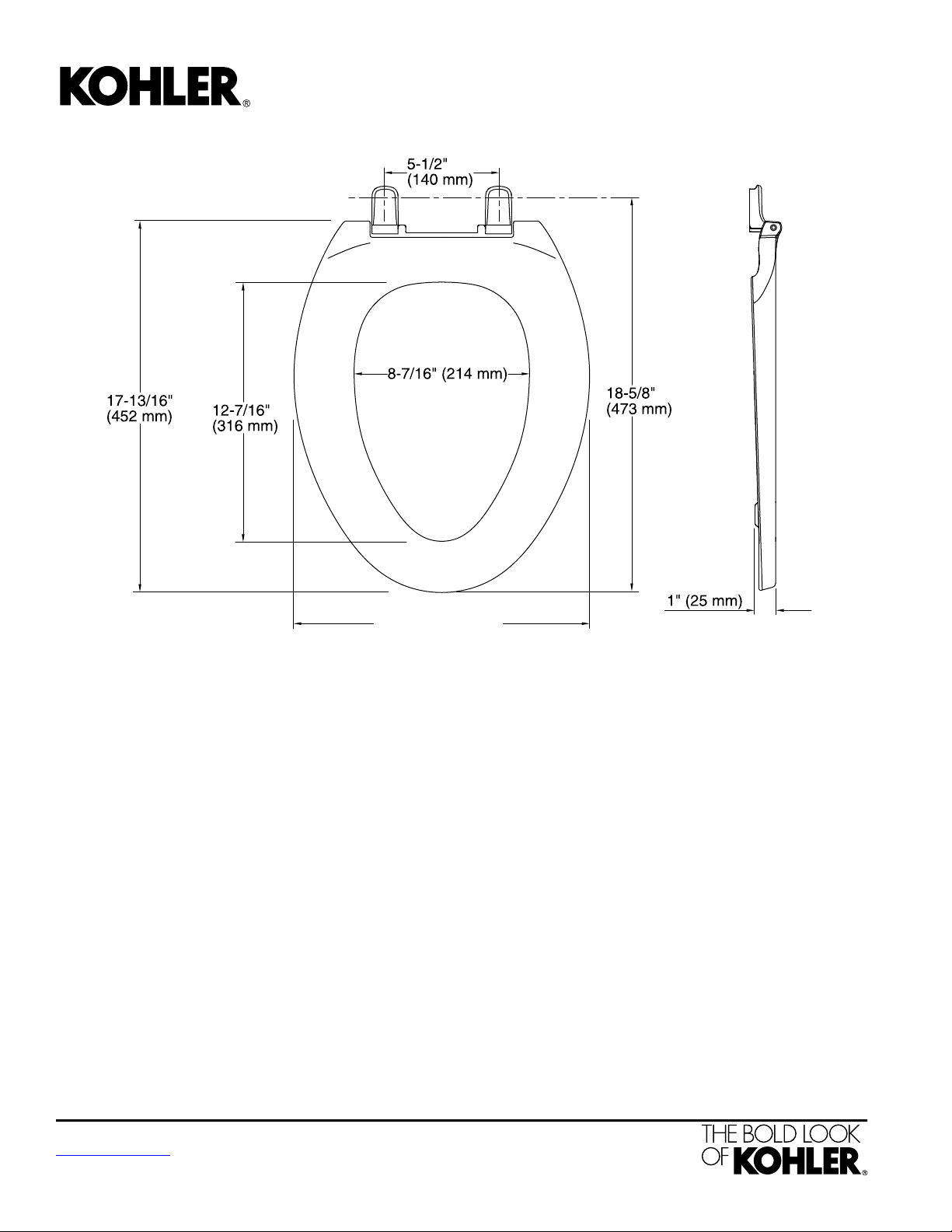

Page 2
14-3/16" (360 mm)
Lustra™ Q2™ Advantage
Toilet Seat
K-4652
™
Technical Information
All product dimensions are nominal.
ElongatedSeat shape type:
Closed frontSeat front type:
Seat hinge type:
Quick-Attach®, Quick-Release
5-1/2" (140 mm)Seat-mounting holes:
Notes
Install this product according to the installation
guide.
™
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:27
