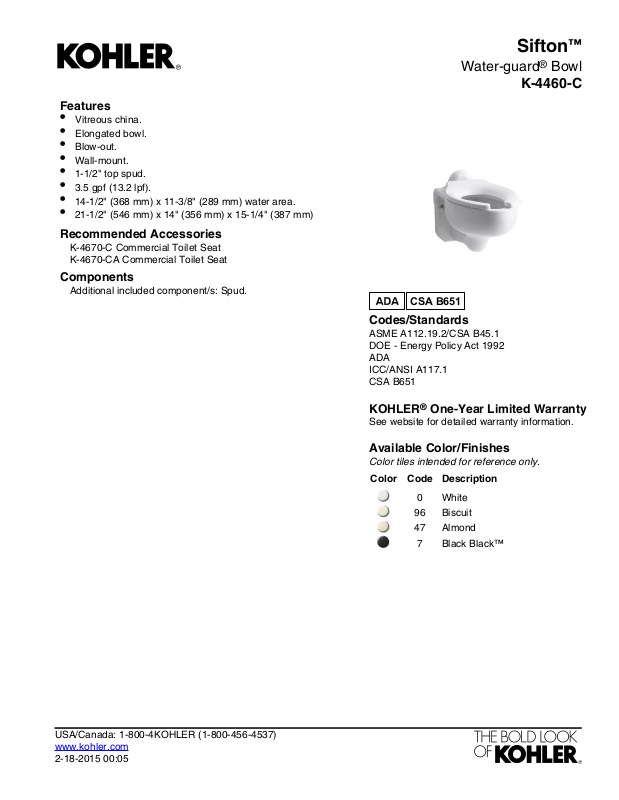

Page 1
Features
CSA B651
•
Vitreous china.
•
Elongated bowl.
•
Blow-out.
•
Wall-mount.
•
1-1/2" top spud.
•
3.5 gpf (13.2 lpf).
•
14-1/2" (368 mm) x 11-3/8" (289 mm) water area.
•
21-1/2" (546 mm) x 14" (356 mm) x 15-1/4" (387 mm)
Recommended Accessories
K-4670-C Commercial Toilet Seat
K-4670-CA Commercial Toilet Seat
Components
Additional included component/s: Spud.
Water-guard® Bowl
Codes/Standards
ASME A112.19.2/CSA B45.1
DOE - Energy Policy Act 1992
ADA
ICC/ANSI A117.1
CSA B651
Sifton
K-4460-C
™
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:05

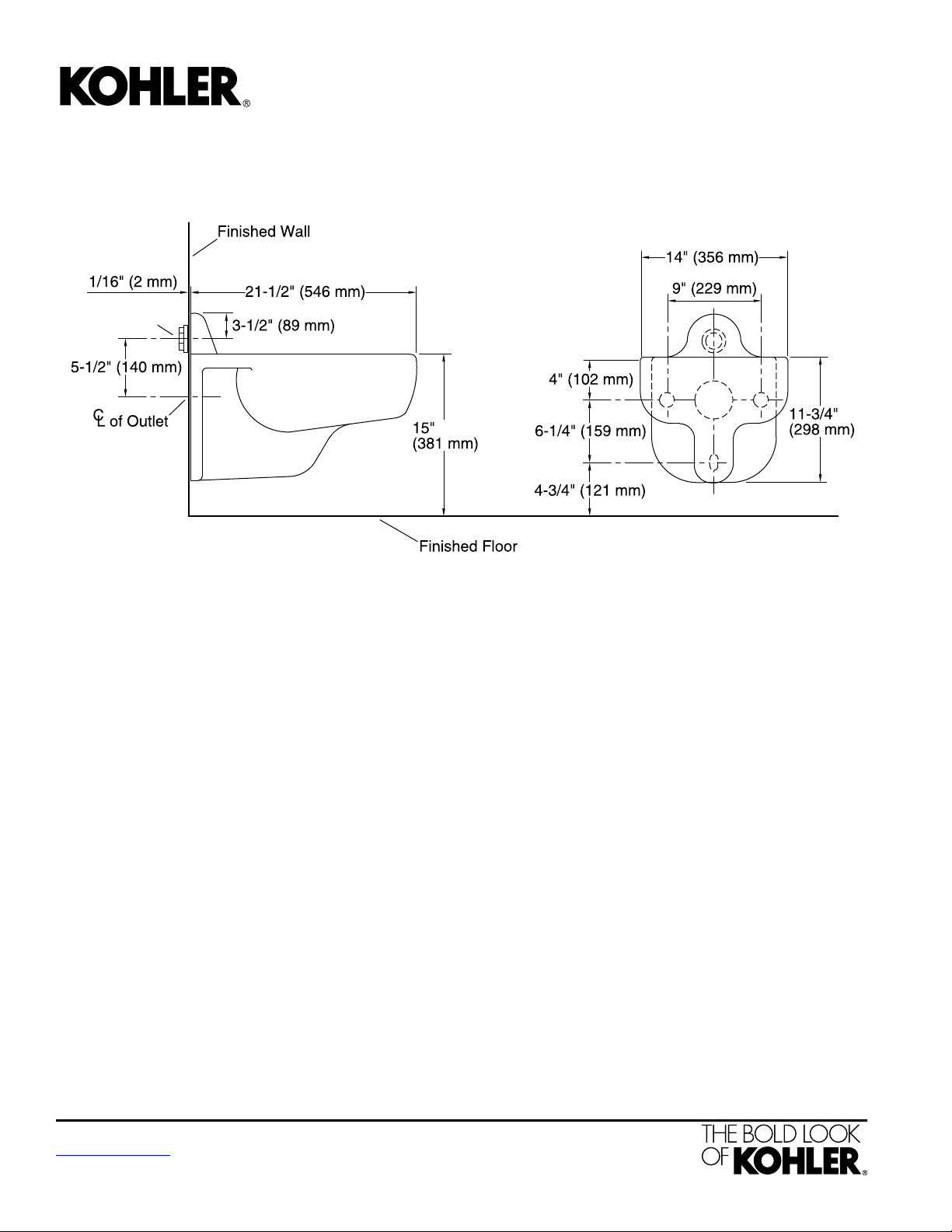

Page 2
1-1/2" Spud
Sifton
™
Water-guard® Bowl
K-4460-C
Technical Information
All product dimensions are nominal.
One-pieceToilet type:
Elongated frontBowl shape:
1-1/2", Inlet, RearSpud size:
2-5/8" (67 mm)Trap passageway:
14-3/8" x 11-1/4" (365 mm x 286 mm)Water surface size:
5-3/8" (137 mm)Rim to water surface:
5-1/2" (140 mm)Seat-mounting holes:
Fixture Supply Requirements
45 psi (310.3 kPa)Min static pressure:
80 psi (551.6 kPa)Max static pressure:
35 psi (241.3 kPa)Min flowing pressure:
35 gpm (132.5 lpm)Min flow rate:
Notes
Install this product according to the installation
guide.
Refer to manufacturer and local codes for flush
valve requirements.
ADA, CSA B651 compliant when installed to the
specific requirements of these regulations.
The Model Plumbing Codes require the
installation of elongated open-front toilet seats
on public bathrooms.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:05
