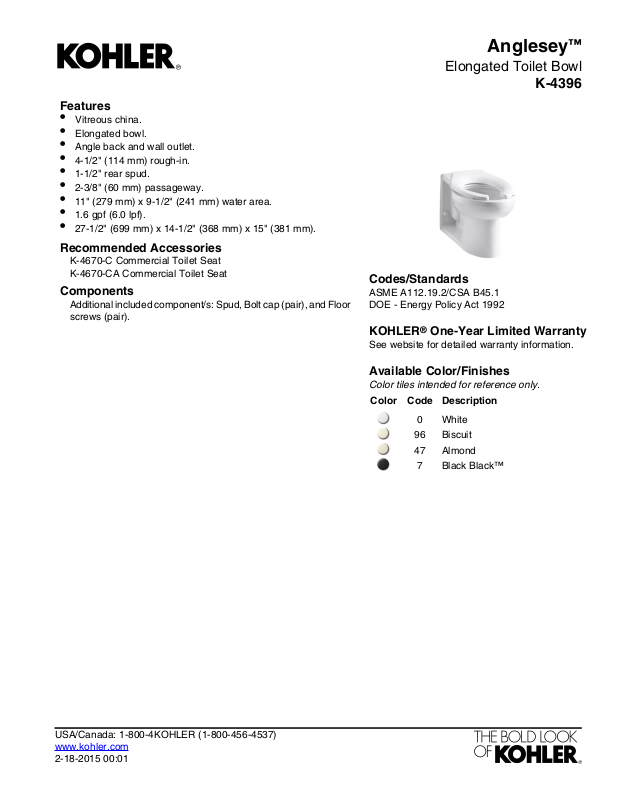

Page 1
Features
•
Vitreous china.
•
Elongated bowl.
•
Angle back and wall outlet.
•
4-1/2" (114 mm) rough-in.
•
1-1/2" rear spud.
•
2-3/8" (60 mm) passageway.
•
11" (279 mm) x 9-1/2" (241 mm) water area.
•
1.6 gpf (6.0 lpf).
•
27-1/2" (699 mm) x 14-1/2" (368 mm) x 15" (381 mm).
Recommended Accessories
K-4670-C Commercial Toilet Seat
K-4670-CA Commercial Toilet Seat
Components
Additional included component/s: Spud, Bolt cap (pair), and Floor
screws (pair).
Anglesey
™
Elongated Toilet Bowl
K-4396
Codes/Standards
ASME A112.19.2/CSA B45.1
DOE - Energy Policy Act 1992
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:01
Page 2

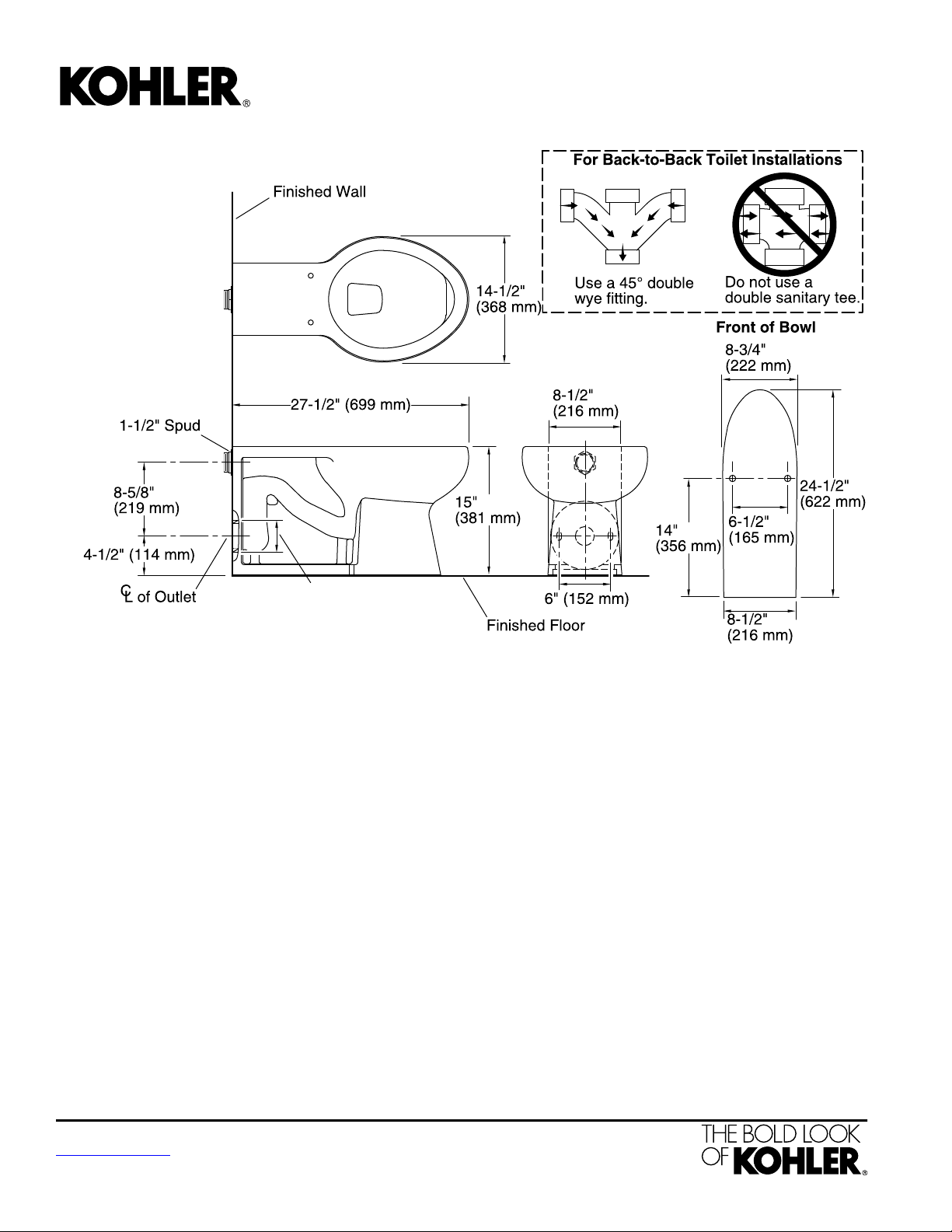

3-3/4" (95 mm)
Anglesey
™
Elongated Toilet Bowl
K-4396
Technical Information
All product dimensions are nominal.
One-pieceToilet type:
Elongated frontBowl shape:
1-1/2", Inlet, RearSpud size:
2-3/8" (60 mm)Trap passageway:
11" x 9-1/2" (279 mm x 241 mm)Water surface size:
5-1/4" (133 mm)Rim to water surface:
4-1/2" (114 mm)Rough-in:
5-1/2" (140 mm)Seat-mounting holes:
Fixture Supply Requirements
35 psi (241.3 kPa)Min static pressure:
80 psi (551.6 kPa)Max static pressure:
25 psi (172.4 kPa)Min flowing pressure:
25 gpm (94.6 lpm)Min flow rate:
Notes
Install this product according to the installation
guide.
Refer to manufacturer’s instructions and local
codes for flushometer requirements.
For back-to-back toilet installations: Use only a
45° double wye fitting.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:01
