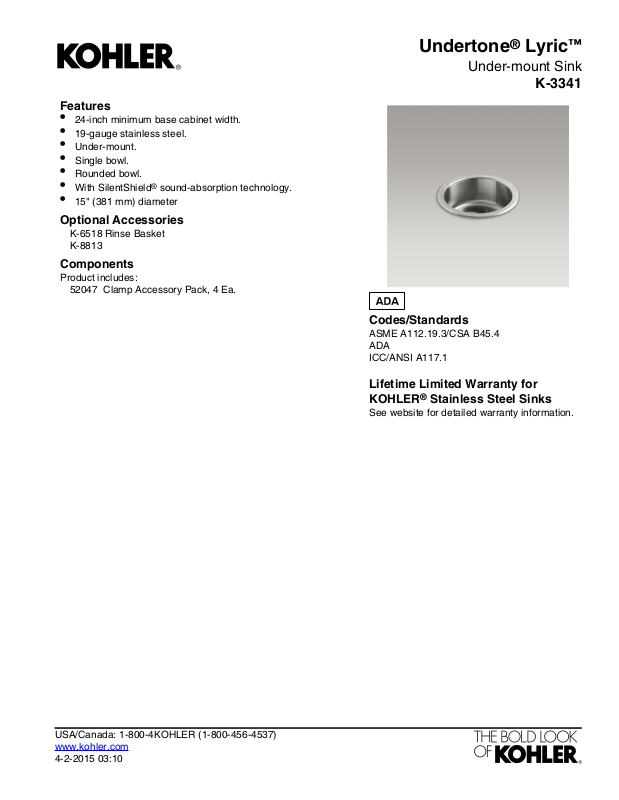

Page 1
Features
•
24-inch minimum base cabinet width.
•
19-gauge stainless steel.
•
Under-mount.
•
Single bowl.
•
Rounded bowl.
•
With SilentShield® sound-absorption technology.
•
15" (381 mm) diameter
Optional Accessories
K-6518 Rinse Basket
K-8813
Components
Product includes:
52047 Clamp Accessory Pack, 4 Ea.
Undertone® Lyric
Under-mount Sink
Codes/Standards
ASME A112.19.3/CSA B45.4
ADA
ICC/ANSI A117.1
™
K-3341
Lifetime Limited Warranty for
KOHLER® Stainless Steel Sinks
See website for detailed warranty information.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-2-2015 03:10
Page 2
Ø 18-3/8" (467 mm)
Undertone® Lyric
Under-mount Sink
K-3341
™
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Under-mountInstallation:
Bowl area (Only)
Diameter: 15" (381 mm)
Bowl depth: 7-1/2" (191 mm)
3-5/8" (92 mm)Drain hole:
Under-mount, 113392-7, required, includedTemplate:
Notes
Install this product according to the installation
guide.
Supplied bowl clamp assemblies require 1" (25
mm) minimum countertop thickness. Installer
must supply hardware for thinner countertops.
For multiple bowl under-mount installations, a
minimum distance of 3-1/2" (89 mm) is required
between bowls.
Countertop supplier to determine required
support.
Waterproof unprotected overhang area of the
underside of wood counter.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-2-2015 03:10
