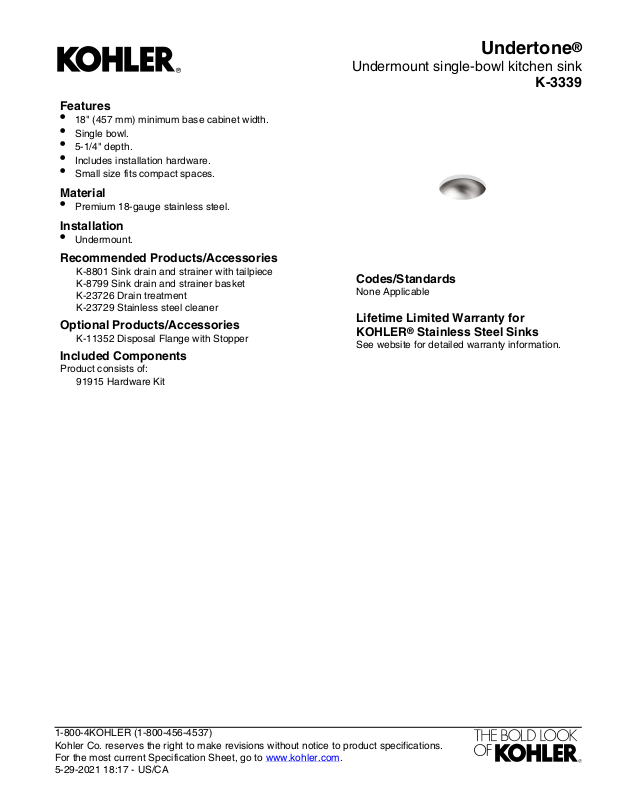

Page 1
Undertone
Features
•
18" (457 mm) minimum base cabinet width.
•
Single bowl.
•
5-1/4" depth.
•
Includes installation hardware.
•
Small size fits compact spaces.
Material
•
Premium 18-gauge stainless steel.
Installation
•
Undermount.
Recommended Products/Accessories
K-8801 Sink drain and strainer with tailpiece
K-8799 Sink drain and strainer basket
K-23726 Drain treatment
K-23729 Stainless steel cleaner
Optional Products/Accessories
K-11352 Disposal Flange with Stopper
Included Components
Product consists of:
91915 Hardware Kit
Codes/Standards
None Applicable
Lifetime Limited Warranty for
KOHLER® Stainless Steel Sinks
See website for detailed warranty information.
®
Undermount single-bowl kitchen sink
K-3339
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 18:17 - US/CA
Page 2
Undertone
Ø 13-5/8" (346 mm)
1-1/2" OD
1/4"
(6 mm)
5-1/2"
(140 mm)
10-7/8"
(276 mm)
6-13/16"
(173 mm)
1-1/8"
(29 mm)
Technical Information
All product dimensions are nominal.
Bowl configuration: Single
Installation: Under-mount
Min. base cabinet
width:
18" (457 mm)
Bowl area (Only): Diameter: 11-1/2" (292 mm)
Bowl depth: 5-1/4" (133 mm)
Drain hole: 3-5/8" (92 mm)
Template: 111578-7, required, included
Notes
Install this product according to the installation
instructions.
®
Undermount single-bowl kitchen sink
K-3339
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 18:17 - US/CA
