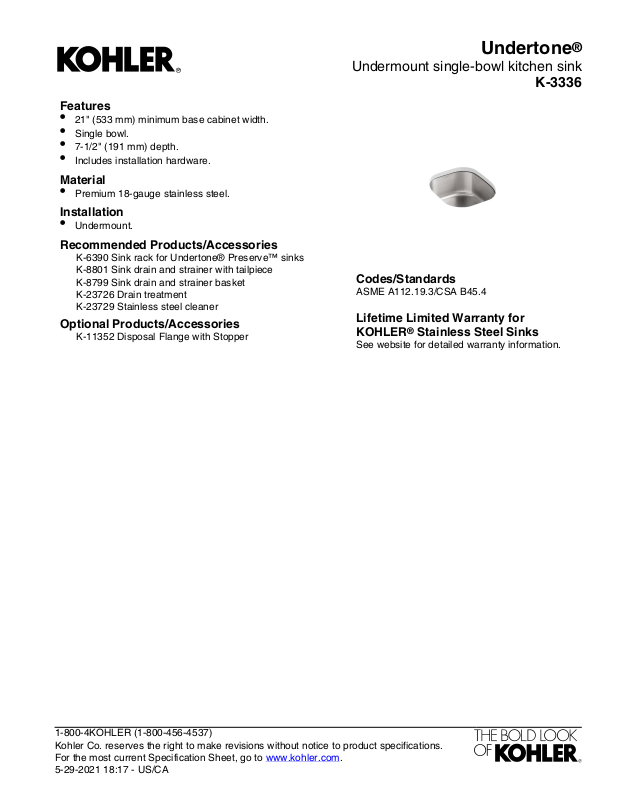

Undertone
Features
•
21" (533 mm) minimum base cabinet width.
•
Single bowl.
•
7-1/2" (191 mm) depth.
•
Includes installation hardware.
Material
•
Premium 18-gauge stainless steel.
Installation
•
Undermount.
Recommended Products/Accessories
K-6390 Sink rack for Undertone® Preserve™ sinks
K-8801 Sink drain and strainer with tailpiece
K-8799 Sink drain and strainer basket
K-23726 Drain treatment
K-23729 Stainless steel cleaner
Optional Products/Accessories
K-11352 Disposal Flange with Stopper
Codes/Standards
ASME A112.19.3/CSA B45.4
Lifetime Limited Warranty for
KOHLER® Stainless Steel Sinks
See website for detailed warranty information.
®
Undermount single-bowl kitchen sink
K-3336
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 18:17 - US/CA
Page 2
Undertone
* Allow clearance around sink
rim for clip attachment.
7-5/8"
(194 mm)
1-1/2" OD
15-1/2" (394 mm)
7/8" (22 mm)
13"
(330 mm)
17-1/8"
(435 mm)
8-5/8"
(219 mm)
7-3/4"
(197 mm)
Countertop
Sink
Clip
2" (51 mm) Min
Technical Information
All product dimensions are nominal.
Installation: Under-mount
Min. base cabinet
width:
21" (533 mm)
Bowl area (Center): Length: 13-3/4" (349 mm)
Width: 15-3/8" (391 mm)
Bowl depth: 7-1/2" (191 mm)
Water depth: 7-1/2" (191 mm)
Template: 113197-7, required, included
Notes
Install this product according to the installation
instructions.
®
Undermount single-bowl kitchen sink
K-3336
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 18:17 - US/CA
