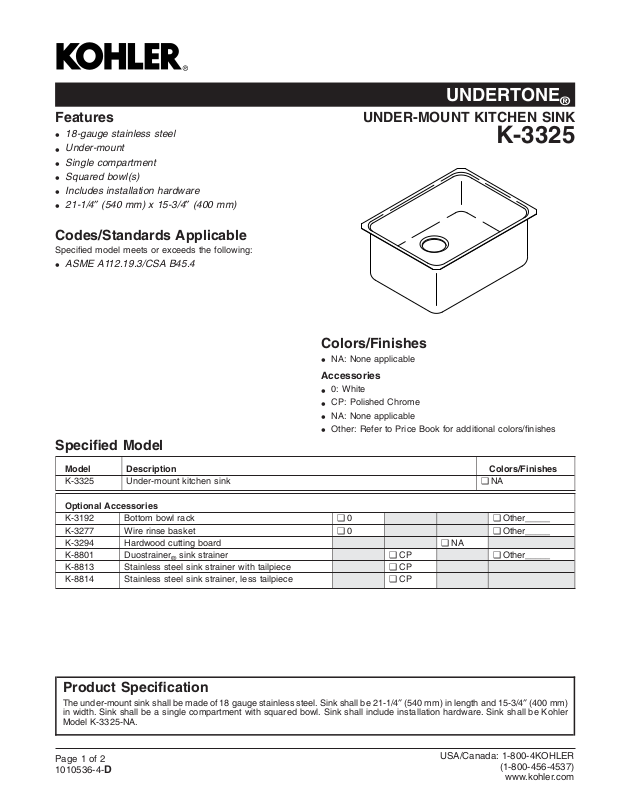

Page 1
UNDERTONE
®
Features
18-gauge stainless steel
•
Under-mount
•
Single compartment
•
Squared bowl(s)
•
Includes installation hardware
•
21-1/4″ (540 mm) x 15-3/4″ (400 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.3/CSA B45.4
•
Specified Model
UNDER-MOUNT KITCHEN SINK
K-3325
Colors/Finishes
NA: None applicable
•
Accessories
0: White
•
CP: Polished Chrome
•
NA: None applicable
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-3325 Under-mount kitchen sink ❑ NA
Optional Accessories
K-3192 Bottom bowl rack ❑ 0 ❑ Other_____
K-3277 Wire rinse basket ❑ 0 ❑ Other_____
K-3294 Hardwood cutting board ❑ NA
K-8801 Duostrainer
K-8813 Stainless steel sink strainer with tailpiece ❑ CP
K-8814 Stainless steel sink strainer, less tailpiece ❑ CP
sink strainer ❑ CP ❑ Other_____
®
Product Specification
The under-mount sink shall be made of 18 gauge stainless steel. Sink shall be 21-1/4″ (540 mm) in length and 15-3/4″ (400 mm)
in width. Sink shall be a single compartment with squared bowl. Sink shall include installation hardware. Sink shall be Kohler
Model K-3325-NA.
Page 1 of 2
1010536-4-
D
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
UNDERTONE
®
Technical Information
Fixture*:
Bowl area 21-1/4″ (540 mm) x 15-3/4″ (400 mm)
Water depth 9-3/8″ (238 mm)
Drain hole Ø 3-5/8″ (92 mm)
*Approximate measurements for comparison only.
Included components:
Hardware kit 91915
Cut-out template 113193-7
Installation Notes
Install this product according to the installation guide.
Allow a minimum of 2″ (51 mm) clearance around the sink rim
for clip attachment.
1-3/4" (44 mm) R.
13"
(330 mm)
23" (584 mm)
1-1/2" OD
7/8" (22 mm)
5"
(127 mm)
17-1/2"
(445 mm)
9-1/2"
(241 mm)
Product Diagram
Countertop
Sink
Clip
2" (51 mm) Min
UNDERTONE®UNDER-MOUNT KITCHEN SINK
Page2of2
1010536-4-
D
