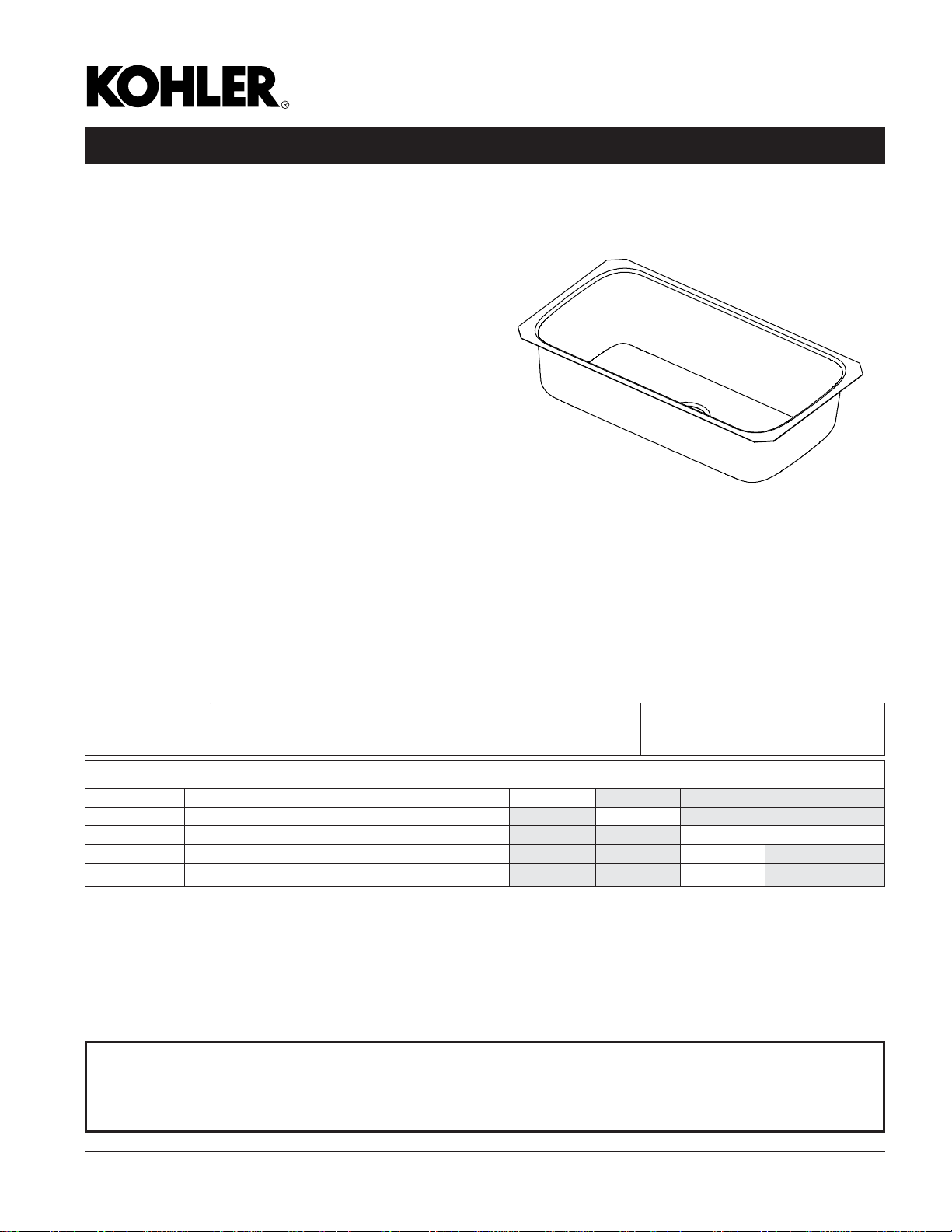

UNDERTONE
®
Features
18-gauge stainless steel
•
Under-mount
•
Single compartment
•
Includes installation hardware
•
7-5/8″ (194 mm) deep bowl
•
29-1/2 (749 mm) x 15-3/4″ (400 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.3/CSA B45.4
•
Specified Model
UNDER-MOUNT KITCHEN SINK
K-3183
Colors/Finishes
NA: None applicable
•
Accessories
CP: Polished Chrome
•
ST: Stainless Steel
•
NA: None applicable
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-3183 Under-mount kitchen sink ❑ NA
Optional Accessories
K-3119 Hardwood cutting board ❑ NA
K-3133 Stainless steel bottom bowl rack ❑ ST
K-8801 Duostrainer
K-8813 Stainless steel sink strainer with tailpiece ❑ CP
K-8814 Stainless steel sink strainer, less tailpiece ❑ CP
sink strainer ❑ CP ❑ Other_____
®
Product Specification
The under-mount kitchen sink shall be made of 18-gauge stainless steel. Sink shall be 29-1/2″ (749 mm) in length and 15-3/4″
(400 mm) in width with a 7-5/8″ (194 mm) deep bowl. Sink shall be single compartment. Sink shall include installation hardware.
Sink shall be Kohler Model K-3183-NA.
Page 1 of 2
1016735-4-
D
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
UNDERTONE
®
Technical Information
Fixture*:
Bowl area 29-1/2″ (749 mm) x 15-3/4″ (400 mm)
Water depth 7-5/8″ (194 mm)
Drain hole Ø 3-5/8″ (92 mm)
*Approximate measurements for comparison only.
Included components:
Hardware kit 91915
Cut-out template 1016732-7
Installation Notes
Install this product according to the installation guide.
Allow a minimum of 2″ (51 mm) clearance around the sink rim
for clip attachment.
31-1/2" (800 mm)
13"
(330 mm)
1-1/2" OD

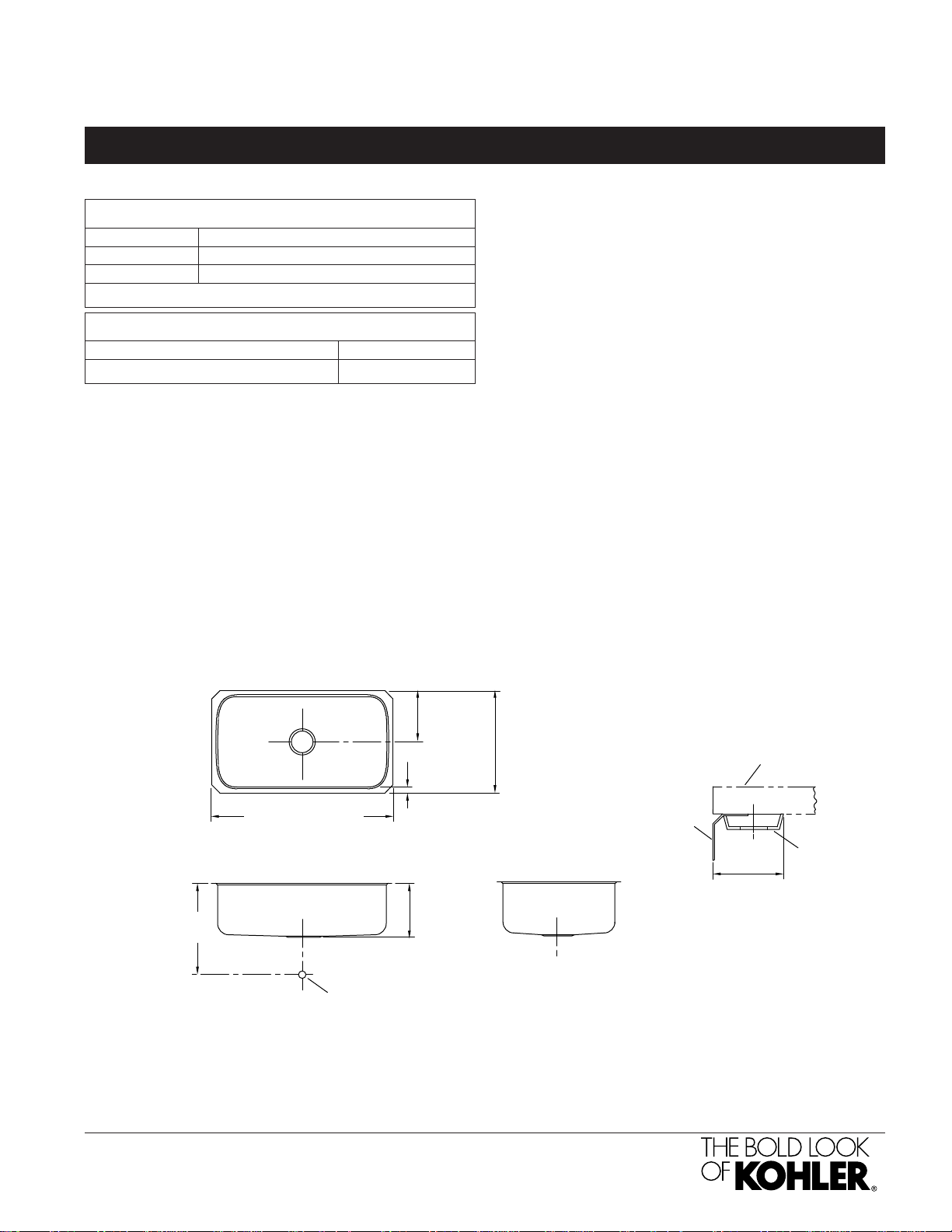

Product Diagram
UNDERTONE®UNDER-MOUNT KITCHEN SINK
Page2of2
1016735-4-
D
8-7/8"
(225 mm)
1"
(25 mm)
8"
(203 mm)
17-3/4"
(451 mm)
Countertop
Sink
Clip
2" (51 mm) Min
