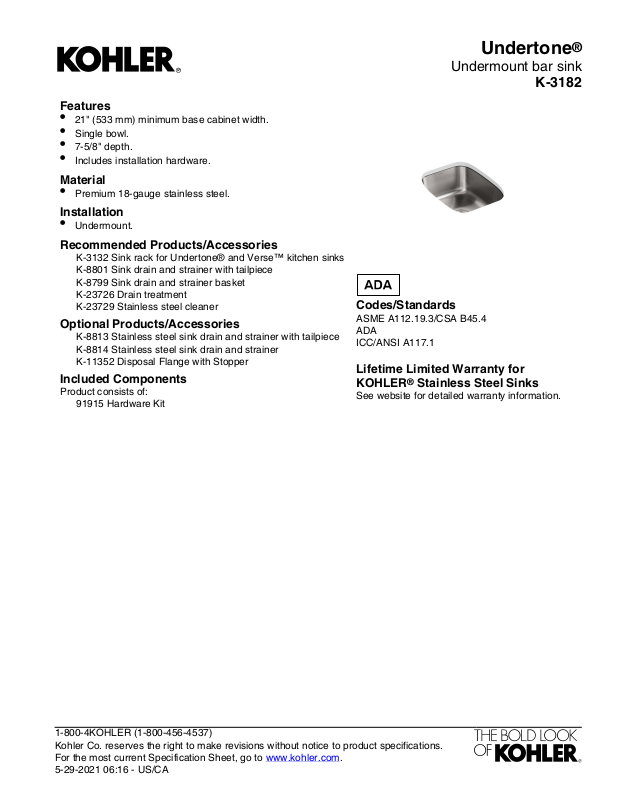

Page 1
Undertone
Features
•
21" (533 mm) minimum base cabinet width.
•
Single bowl.
•
7-5/8" depth.
•
Includes installation hardware.
Material
•
Premium 18-gauge stainless steel.
Installation
•
Undermount.
Recommended Products/Accessories
K-3132 Sink rack for Undertone® and Verse™ kitchen sinks
K-8801 Sink drain and strainer with tailpiece
K-8799 Sink drain and strainer basket
K-23726 Drain treatment
K-23729 Stainless steel cleaner
Optional Products/Accessories
K-8813 Stainless steel sink drain and strainer with tailpiece
K-8814 Stainless steel sink drain and strainer
K-11352 Disposal Flange with Stopper
Included Components
Product consists of:
91915 Hardware Kit
Codes/Standards
ASME A112.19.3/CSA B45.4
ADA
ICC/ANSI A117.1
Lifetime Limited Warranty for
KOHLER® Stainless Steel Sinks
See website for detailed warranty information.
®
Undermount bar sink
K-3182
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 06:16 - US/CA
Page 2
Undertone
1-1/2" OD
16-1/4" (413 mm)
1"
(25 mm)
20-1/2"
(521 mm)
10-1/4"
(260 mm)
8-1/8"
(206 mm)
13"
(330 mm)
8"
(203 mm)
Technical Information
All product dimensions are nominal.
Bowl configuration: Single
Installation: Under-mount
Min. base cabinet
width:
21" (533 mm)
Bowl area (Only): Length: 14-1/4" (362 mm)
Width: 18-1/2" (470 mm)
Bowl depth: 7-5/8" (194 mm)
Drain hole: 3-5/8" (92 mm)
Template: 1315836-7, required, included
Notes
Install this product according to the installation
instructions.
ADA compliant when installed to the specific
requirements of these regulations.
ADA permits a parallel approach to wet bars.
®
Undermount bar sink
K-3182
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 06:16 - US/CA
