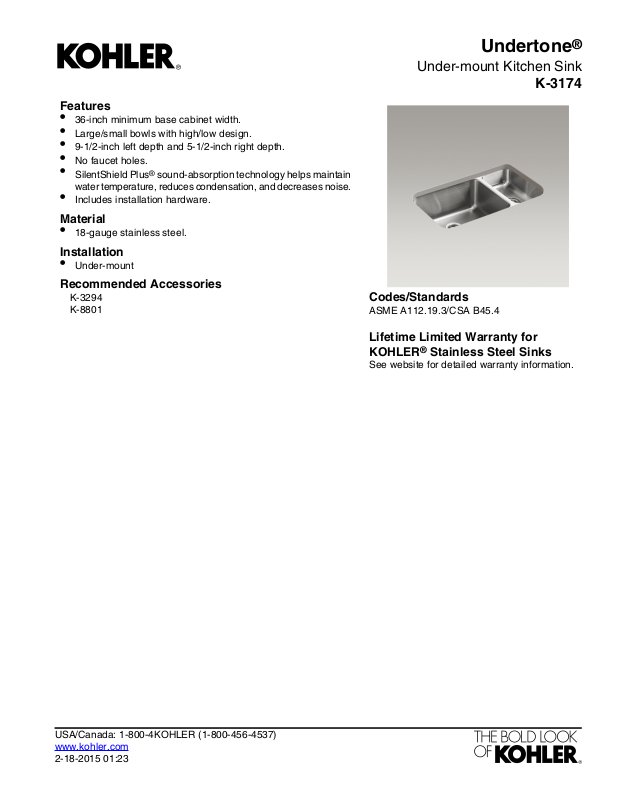

Page 1
Features
•
36-inch minimum base cabinet width.
•
Large/small bowls with high/low design.
•
9-1/2-inch left depth and 5-1/2-inch right depth.
•
No faucet holes.
•
SilentShield Plus® sound-absorption technology helps maintain
water temperature, reduces condensation, and decreases noise.
•
Includes installation hardware.
Material
•
18-gauge stainless steel.
Installation
•
Under-mount
Recommended Accessories
K-3294
K-8801
Undertone
Under-mount Kitchen Sink
K-3174
Codes/Standards
ASME A112.19.3/CSA B45.4
Lifetime Limited Warranty for
KOHLER® Stainless Steel Sinks
See website for detailed warranty information.
®
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 01:23

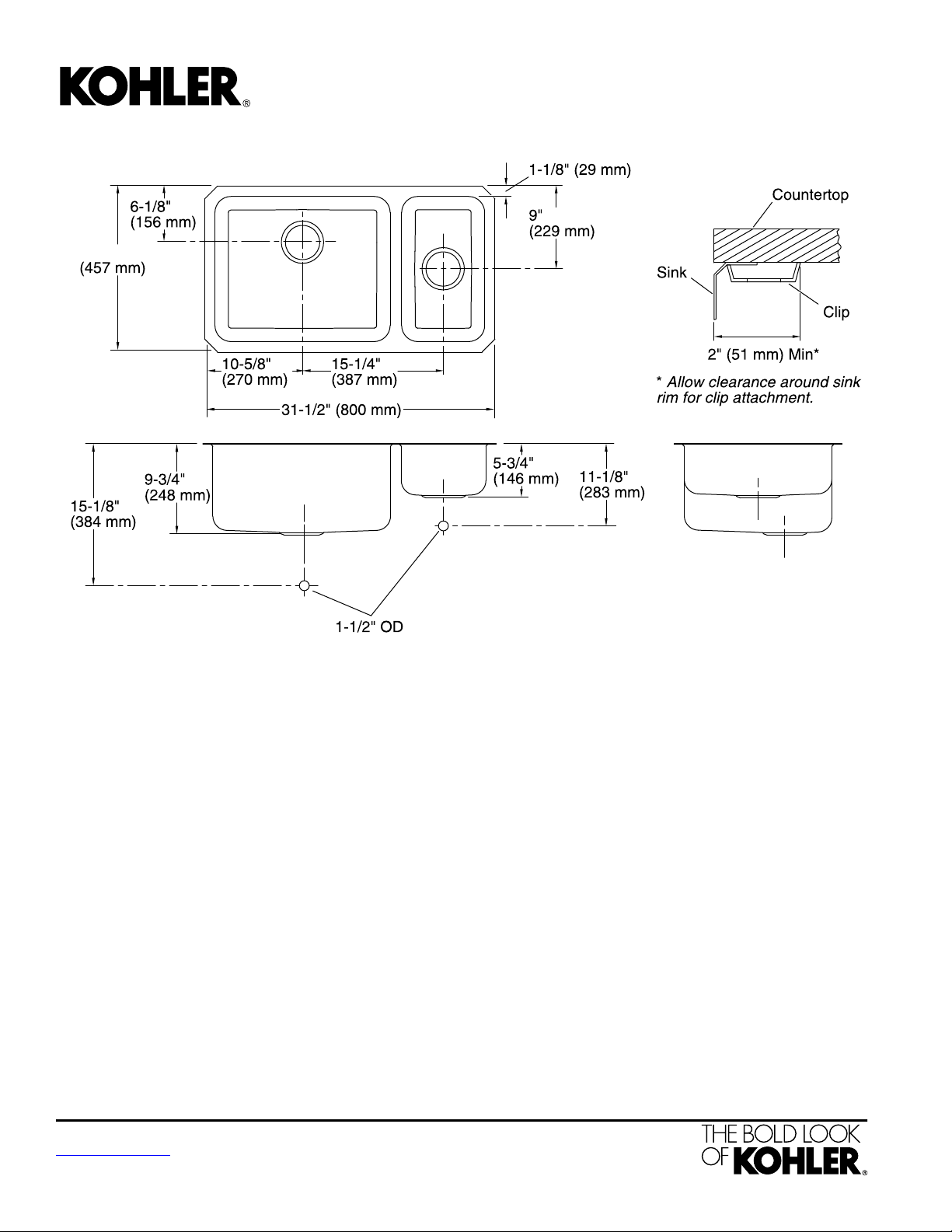

Page 2
18"
Undertone
®
Under-mount Kitchen Sink
K-3174
Technical Information
All product dimensions are nominal.
Bowl area (Left)
Bowl area (Right)
Template:
High-lowBowl configuration:
Under-mountInstallation:
Length: 19" (483 mm)
Width: 15-3/4" (400 mm)
Bowl depth: 9-1/2" (241 mm)
Water depth: 9-1/2" (241 mm)
Length: 9" (229 mm)
Width: 15-3/4" (400 mm)
Bowl depth: 5-1/2" (140 mm)
Water depth: 5-1/2" (140 mm)
3-3/4" (94 mm)Drain hole:
Under-mount, 1221369-7, required,
included
Notes
Install this product according to the installation
guide.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 01:23
