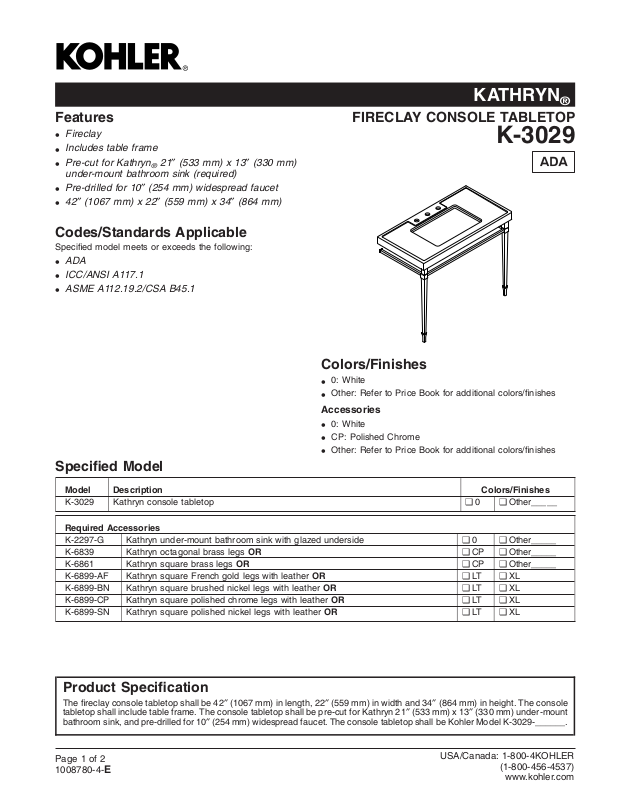

Page 1
KATHRYN
®
Features
Fireclay
•
Includes table frame
•
Pre-cut for Kathryn
•
under-mount bathroom sink (required)
Pre-drilled for 10″ (254 mm) widespread faucet
•
42″ (1067 mm) x 22″ (559 mm) x 34″ (864 mm)
•
21″ (533 mm) x 13″ (330 mm)
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
ICC/ANSI A117.1
•
ASME A112.19.2/CSA B45.1
•
Specified Model
FIRECLAY CONSOLE TABLETOP
K-3029
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
0: White
•
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-3029 Kathryn console tabletop ❑ 0 ❑ Other_____
Required Accessories
K-2297-G Kathryn under-mount bathroom sink with glazed underside ❑ 0 ❑ Other_____
K-6839 Kathryn octagonal brass legs OR ❑ CP ❑ Other_____
K-6861 Kathryn square brass legs OR ❑ CP ❑ Other_____
K-6899-AF Kathryn square French gold legs with leather OR ❑ LT ❑ XL
K-6899-BN Kathryn square brushed nickel legs with leather OR ❑ LT ❑ XL
K-6899-CP Kathryn square polished chrome legs with leather OR ❑ LT ❑ XL
K-6899-SN Kathryn square polished nickel legs with leather OR ❑ LT ❑ XL
Product Specification
The fireclay console tabletop shall be 42″ (1067 mm) in length, 22″ (559 mm) in width and 34″ (864 mm) in height. The console
tabletop shall include table frame. The console tabletop shall be pre-cut for Kathryn 21″ (533 mm) x 13″ (330 mm) under-mount
bathroom sink, and pre-drilled for 10″ (254 mm) widespread faucet. The console tabletop shall be Kohler Model K-3029-______.
Page 1 of 2
1008780-4-
E
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
KATHRYN
Required Accessories
K-2317-AF Kathryn
K-2317-BN Kathryn
K-2317-CP Kathryn
K-2317-SN Kathryn
K-2318 Kathryn
®
octagonal fireclay/French gold brass legs OR ❑ 0 ❑ Other_____
®
octagonal fireclay/brushed nickel brass legs OR ❑ 0 ❑ Other_____
®
octagonal fireclay/polished chrome legs OR ❑ 0 ❑ Other_____
®
octagonal fireclay/polished nickel legs OR ❑ 0 ❑ Other_____
®
square fireclay legs ❑ 0 ❑ Other_____
®
Installation Notes
Install this product according to the installation guide.
Product is installed with 1/2″ (13 mm) gap between wall and
console table.
Frame is included with K-3029.
4" (102 mm)
Wall
Clip
34" (864 mm)
5" (127 mm)
42" (1067 mm)
A
3-5/16"
(84 mm)
22"
(559 mm)
34"
(864 mm)
Leg Style
K-2317
K-2318
K-6839
K-6861
K-6899
C
35-3/8" (899 mm)
35-3/8" (899 mm)
36" (914 mm)
38-1/4" (972 mm)
38-1/4" (972 mm)
22-1/2"
(572 mm)
1/2" (13 mm)
B
19-3/16" (498 mm)
19-3/16" (498 mm)
19-1/2" (495 mm)
20-11/16" (525 mm)
20-11/16" (525 mm)
Finished Wall
Wall Clip
CBA
NA
NA
NA
27-3/16"
(691 mm)
KATHRYN®FIRECLAY CONSOLE TABLETOP
Page2of2
1008780-4-
E
Product Diagram
