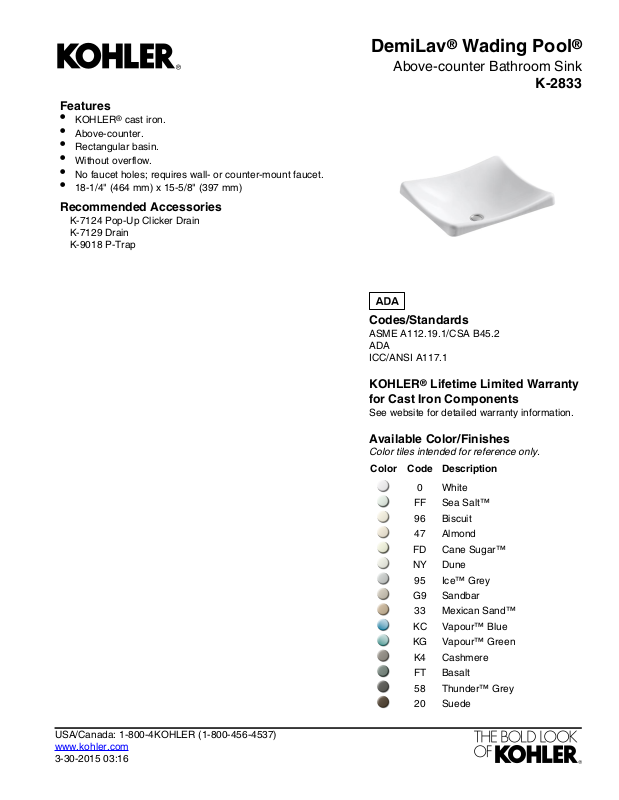

Page 1
Features
•
KOHLER® cast iron.
•
Above-counter.
•
Rectangular basin.
•
Without overflow.
•
No faucet holes; requires wall- or counter-mount faucet.
•
18-1/4" (464 mm) x 15-5/8" (397 mm)
Recommended Accessories
K-7124 Pop-Up Clicker Drain
K-7129 Drain
K-9018 P-Trap
DemiLav® Wading Pool
Above-counter Bathroom Sink
K-2833
Codes/Standards
ASME A112.19.1/CSA B45.2
ADA
ICC/ANSI A117.1
®
KOHLER® Lifetime Limited Warranty
for Cast Iron Components
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Sea Salt™FF
Biscuit96
Almond47
Cane Sugar™FD
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
Vapour™ BlueKC
Vapour™ GreenKG
CashmereK4
BasaltFT
Thunder™ Grey58
Suede20
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-30-2015 03:16
Page 2
DemiLav® Wading Pool
Above-counter Bathroom Sink
K-2833
®
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Above-counterInstallation:
Bowl area (Only)
Template:
Length: 16-1/2" (419 mm)
Width: 13-3/4" (349 mm)
Water depth: 5" (127 mm)
1-3/4" (44 mm)Drain hole:
Above-counter, 1046630-7, required,
included
Notes
Install this product according to the installation
guide.
Product does not have overflow.
NOTICE: Countertop manufacturer or cutter must
use the cut-out template provided with the
product, or a current one provided by Kohler Co.
(call 1-800-4KOHLER). Kohler Co. is not
responsible for cutout errors when the incorrect
cut-out template is used.
The spout must be a minimum of 5" (127 mm)
long for adequate clearance into the bathroom
sink when installed with the centerline, as shown.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-30-2015 03:16
