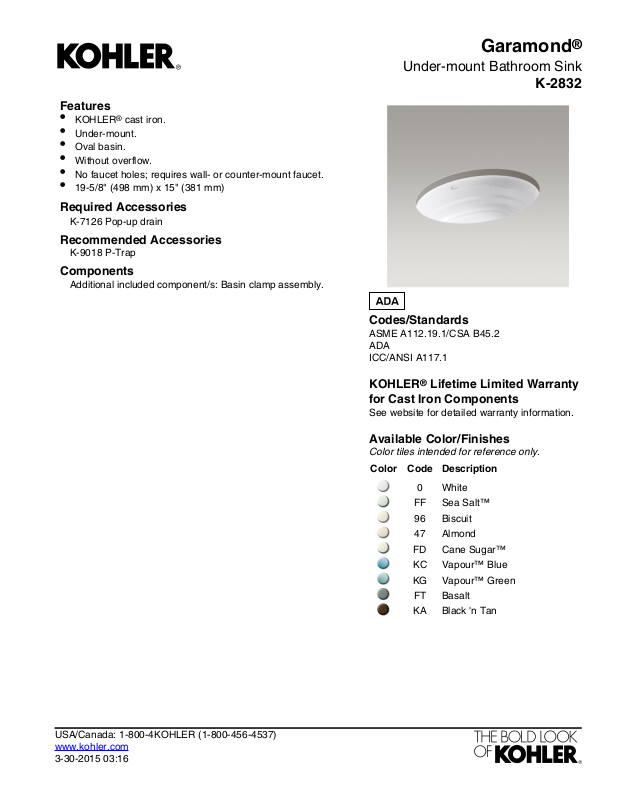

Page 1
Features
•
KOHLER® cast iron.
•
Under-mount.
•
Oval basin.
•
Without overflow.
•
No faucet holes; requires wall- or counter-mount faucet.
•
19-5/8" (498 mm) x 15" (381 mm)
Required Accessories
K-7126 Pop-up drain
Recommended Accessories
K-9018 P-Trap
Components
Additional included component/s: Basin clamp assembly.
Garamond
Under-mount Bathroom Sink
Codes/Standards
ASME A112.19.1/CSA B45.2
ADA
ICC/ANSI A117.1
®
K-2832
KOHLER® Lifetime Limited Warranty
for Cast Iron Components
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Sea Salt™FF
Biscuit96
Almond47
Cane Sugar™FD
Vapour™ BlueKC
Vapour™ GreenKG
BasaltFT
Black 'n TanKA
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-30-2015 03:16
Page 2
Garamond
®
Under-mount Bathroom Sink
K-2832

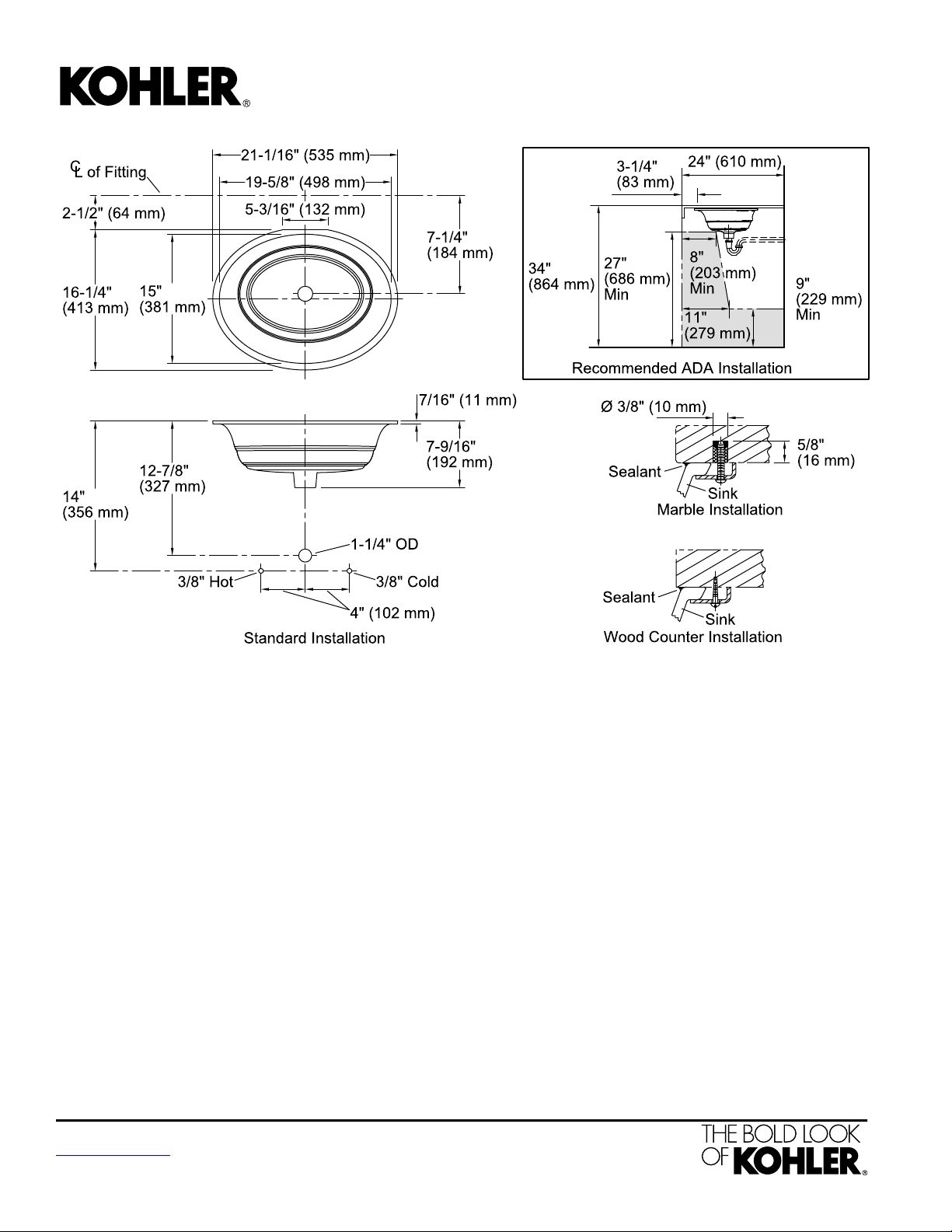

Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Under-mountInstallation:
Bowl area (Only)
Template:
Length: 19-5/8" (498 mm)
Width: 15" (381 mm)
Water depth: 5-1/2" (140 mm)
1-3/4" (44 mm)Drain hole:
Under-mount, 1046629-7, required,
included
Notes
Install this product according to the installation
guide.
Product does not have overflow.
Supplied basin clamp assemblies require 1" (25
mm) minimum countertop thickness. Installer
must supply anchors for thinner countertops.
NOTICE: The countertop manufacturer or cutter
must use the cutout template provided with the
product, or a current one provided by the Kohler
Co. (call 1-800-4KOHLER). Kohler Co. is not
responsible for cutout errors when the incorrect
cutout template is used.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-30-2015 03:16
