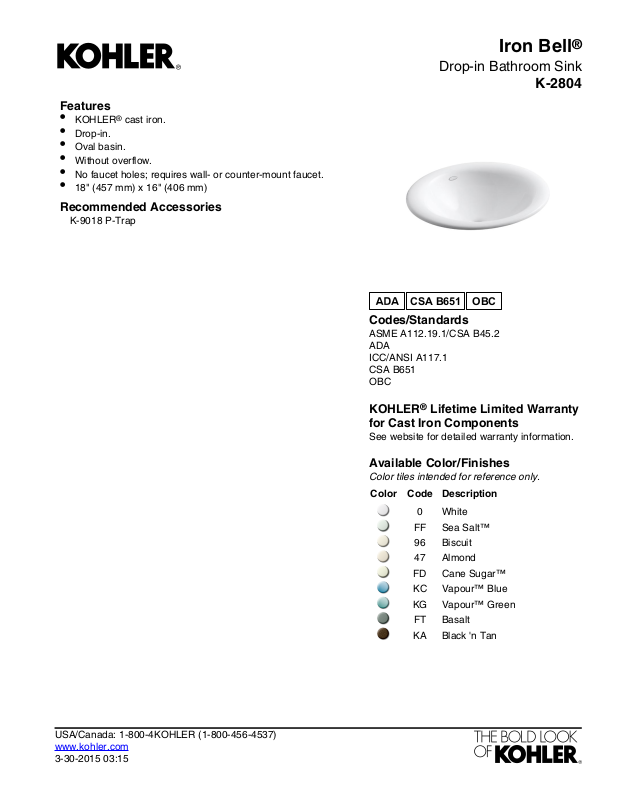

Page 1
Features
CSA B651
OBC
•
KOHLER® cast iron.
•
Drop-in.
•
Oval basin.
•
Without overflow.
•
No faucet holes; requires wall- or counter-mount faucet.
•
18" (457 mm) x 16" (406 mm)
Recommended Accessories
K-9018 P-Trap
Drop-in Bathroom Sink
Codes/Standards
ASME A112.19.1/CSA B45.2
ADA
ICC/ANSI A117.1
CSA B651
OBC
Iron Bell
K-2804
®
KOHLER® Lifetime Limited Warranty
for Cast Iron Components
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Sea Salt™FF
Biscuit96
Almond47
Cane Sugar™FD
Vapour™ BlueKC
Vapour™ GreenKG
BasaltFT
Black 'n TanKA
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-30-2015 03:15
Page 2
Iron Bell
®
Drop-in Bathroom Sink
K-2804

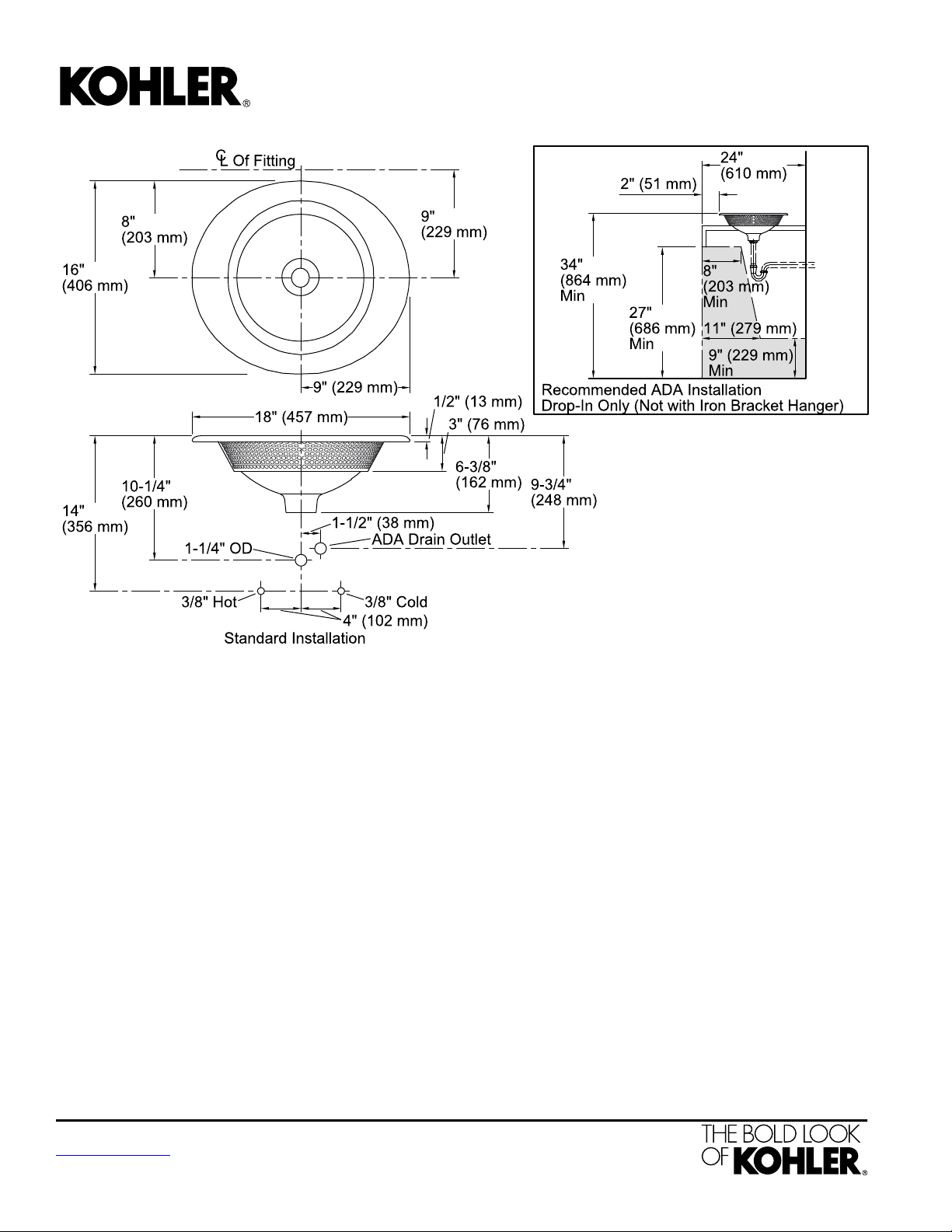

Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Drop-InInstallation:
Bowl area (Only)
Length: 13" (330 mm)
Width: 12" (305 mm)
Water depth: 4-3/8" (111 mm)
1-3/4" (44 mm)Drain hole:
Drop-in, 115887-7, required, includedTemplate:
Notes
Install this product according to the installation
guide.
Product does not have overflow.
Spout must be a minimum of 5" (127 mm) long
for adequate clearance into the bathroom sink
when installed with the centerline as shown.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-30-2015 03:15
