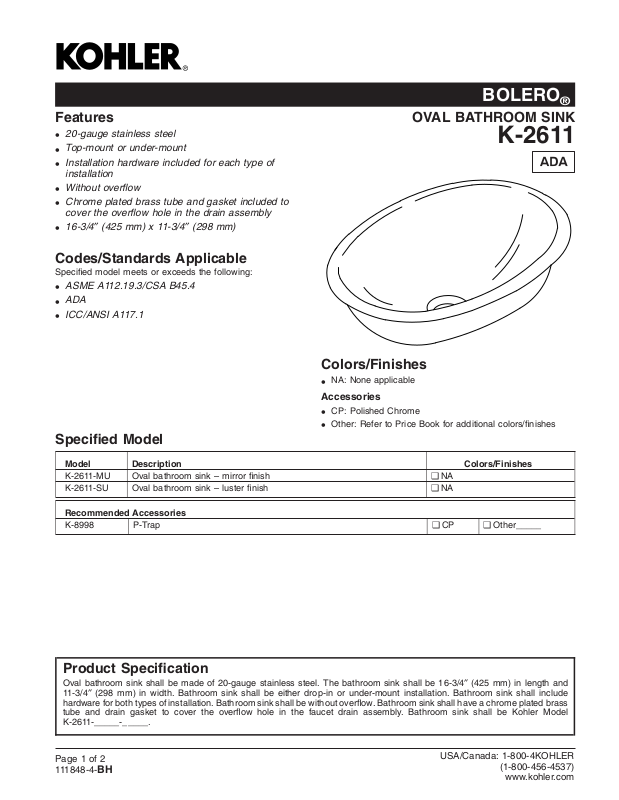

Page 1
BOLERO
®
Features
20-gauge stainless steel
•
Top-mount or under-mount
•
Installation hardware included for each type of
•
installation
Without overflow
•
Chrome plated brass tube and gasket included to
•
cover the overflow hole in the drain assembly
16-3/4″ (425 mm) x 11-3/4″ (298 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.3/CSA B45.4
•
ADA
•
ICC/ANSI A117.1
•
Specified Model
OVAL BATHROOM SINK
K-2611
Colors/Finishes
NA: None applicable
•
Accessories
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-2611-MU Oval bathroom sink – mirror finish ❑ NA
K-2611-SU Oval bathroom sink – luster finish ❑ NA
Recommended Accessories
K-8998 P-Trap ❑ CP ❑ Other_____
Product Specification
Oval bathroom sink shall be made of 20-gauge stainless steel. The bathroom sink shall be 16-3/4″ (425 mm) in length and
11-3/4″ (298 mm) in width. Bathroom sink shall be either drop-in or under-mount installation. Bathroom sink shall include
hardware for both types of installation. Bathroom sink shall be without overflow. Bathroom sink shall have a chrome plated brass
tube and drain gasket to cover the overflow hole in the faucet drain assembly. Bathroom sink shall be Kohler Model
K-2611-_____-_____.
Page 1 of 2
111848-4-
BH
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
BOLERO
®
Technical Information
Fixture*: Basin area Water depth
Bathroom
sink
Drain
hole
* Approximate measurements for comparison only.
Included Components:
Basin clamp assembly
(under-mount)
Basin clamp assembly (drop-in) 7257
Drain gasket 33507
Tube 1011037-CP
Cut-out template 111579-7
15″ (381 mm) x 10″ (254
mm)
Ø 1-5/8″ (41 mm)
5-1/2″
(140 mm)
68922
Installation Notes
Install this product according to the installation guide.
Will comply with ADA when installed per section 606
Lavatories of the Act.
Kit #7257
Sealant
Bathroom
Sink
11-3/4"
(298 mm)
14"
(356 mm)
Sealant
11-5/8"
(295 mm)
Ø 3/8" (10 mm)
Kit #68922
5/8"
(16 mm)
Bathroom Sink
Marble Slab
Installation
16-3/4" (425 mm)
1-1/4" Outlet
Sealant
Bathroom Sink
Wood Counter
Installation
1-1/8" (29 mm)
1/4" (6 mm)
6"
(152 mm)
Note: Waterproof unprotected overhang
area of the underside of wood counter.
24" (610 mm)
A
34"
(864 mm)
27"
(686 mm)
Min
8"
(203 mm)
Min
9" (229 mm)
Min
11" (279 mm) Max
Recommended ADA Installation
A
Drop-in (shown)
7" (178 mm)
3/8" Hot
4" (102 mm)
BOLERO®OVAL BATHROOM SINK
Page2of2
111848-4-
BH
3/8" Cold
Product Diagram
Under-mount
7-3/4" (197 mm)
