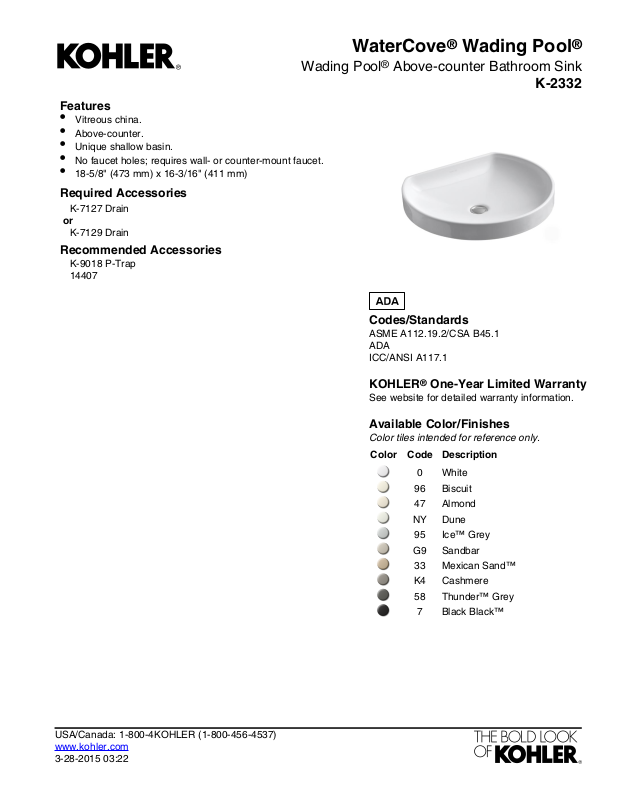

Page 1
Features
•
Vitreous china.
•
Above-counter.
•
Unique shallow basin.
•
No faucet holes; requires wall- or counter-mount faucet.
•
18-5/8" (473 mm) x 16-3/16" (411 mm)
Required Accessories
K-7127 Drain
or
K-7129 Drain
Recommended Accessories
K-9018 P-Trap
14407
WaterCove® Wading Pool
®
Wading Pool® Above-counter Bathroom Sink
K-2332
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
Thunder™ Grey58
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-28-2015 03:22
Page 2
WaterCove® Wading Pool
®
Wading Pool® Above-counter Bathroom Sink
K-2332

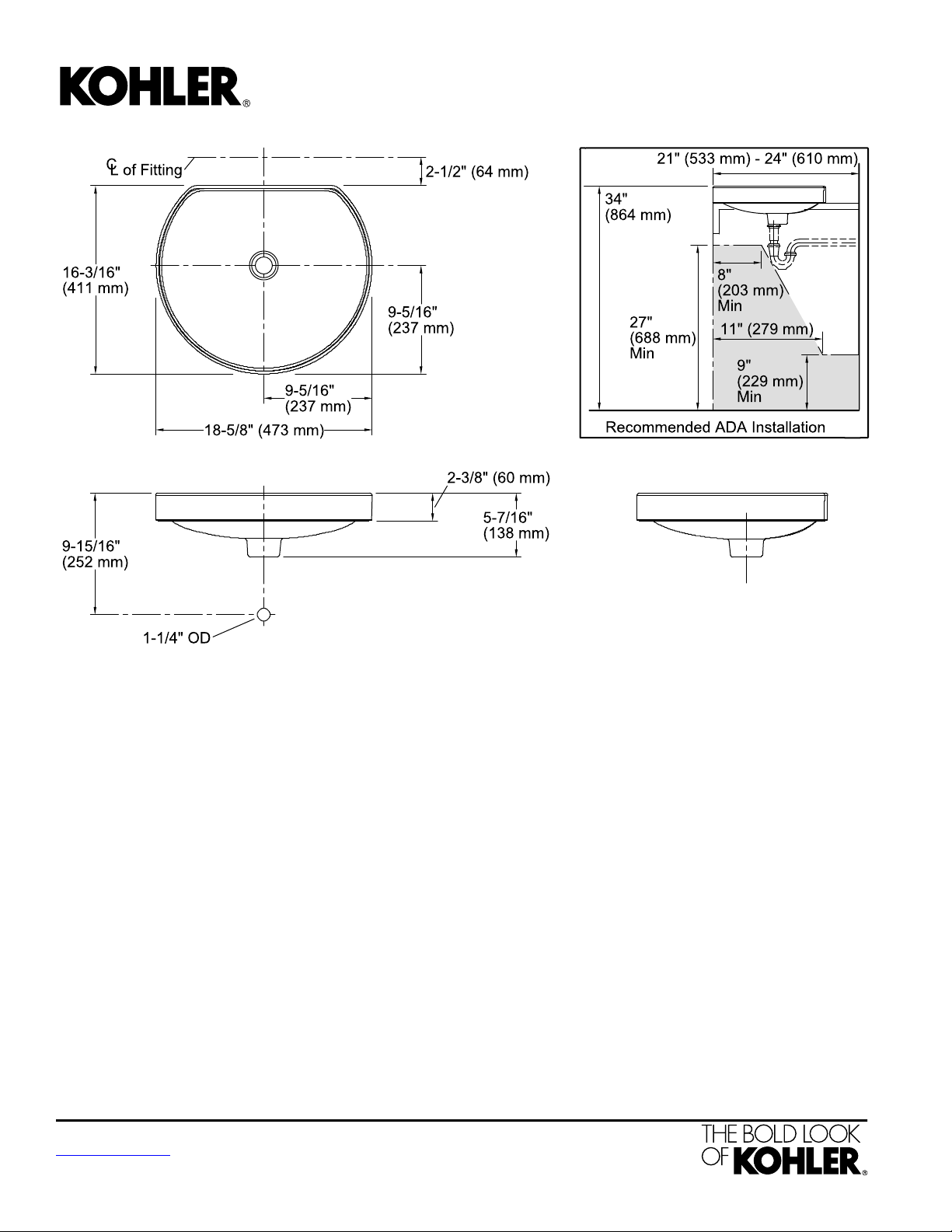

Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Above-counterInstallation:
Bowl area (Only)
Template:
Length: 17-11/16" (449 mm)
Width: 15-5/16" (389 mm)
Water depth: 3-1/2" (89 mm)
1-3/4" (44 mm)Drain hole:
Above-counter, 1020955-7, required,
included
Notes
Install this product according to the installation
guide.
Product does not have an overflow.
Choose a faucet that will provide adequate
clearance and will direct the water stream to the
center of the bathroom sink.
IMPORTANT! Product rests on a countertop.
Consider height of product when planning the
installation.
NOTICE: Countertop manufacturer or cutter must
use the cut-out template provided with the
product, or a current cut-out template provided
by Kohler (call 1-800-4KOHLER). Kohler is not
responsible for cutout errors when incorrect
cut-out template is used.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-28-2015 03:22
