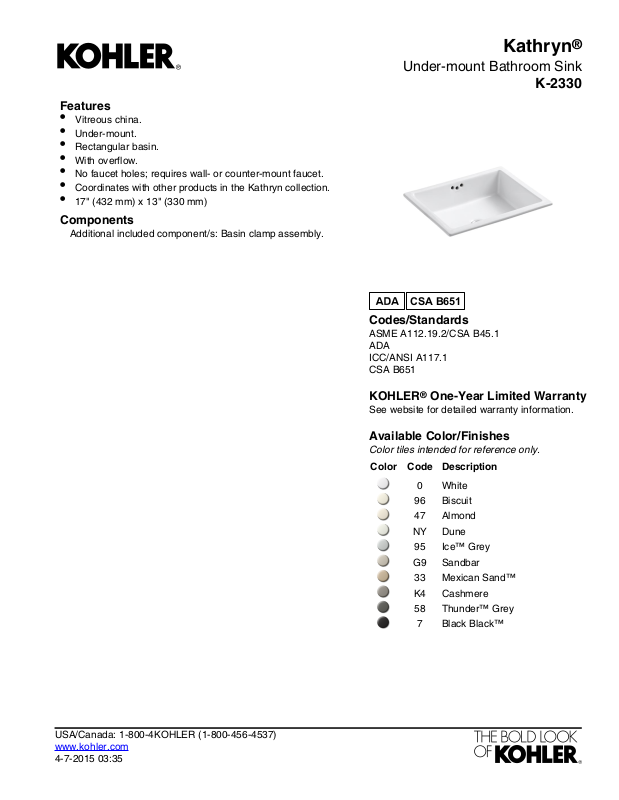

Page 1
Features
CSA B651
•
Vitreous china.
•
Under-mount.
•
Rectangular basin.
•
With overflow.
•
No faucet holes; requires wall- or counter-mount faucet.
•
Coordinates with other products in the Kathryn collection.
•
17" (432 mm) x 13" (330 mm)
Components
Additional included component/s: Basin clamp assembly.
Under-mount Bathroom Sink
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
CSA B651
Kathryn
K-2330
®
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
Thunder™ Grey58
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-7-2015 03:35
Page 2
Kathryn
®
Under-mount Bathroom Sink
K-2330
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Under-mountInstallation:
Bowl area (Only)
Template:
Length: 17" (432 mm)
Width: 13" (330 mm)
Water depth: 3" (76 mm)
1-3/4" (44 mm)Drain hole:
Under-mount, 1006809-7, required, not
included
Notes
Install this product according to the installation
guide.
NOTICE: Countertop manufacturer or cutter must
use the current product template available at
www.kohler.com, or by calling 1-800-4KOHLER.
Kohler Co. is not responsible for cutout errors
when the incorrect cutout template is used.
ADA, CSA B651 compliant when installed to the
specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-7-2015 03:35
