Kohler KOH2410 Specifications

Download

Page 1

Compass

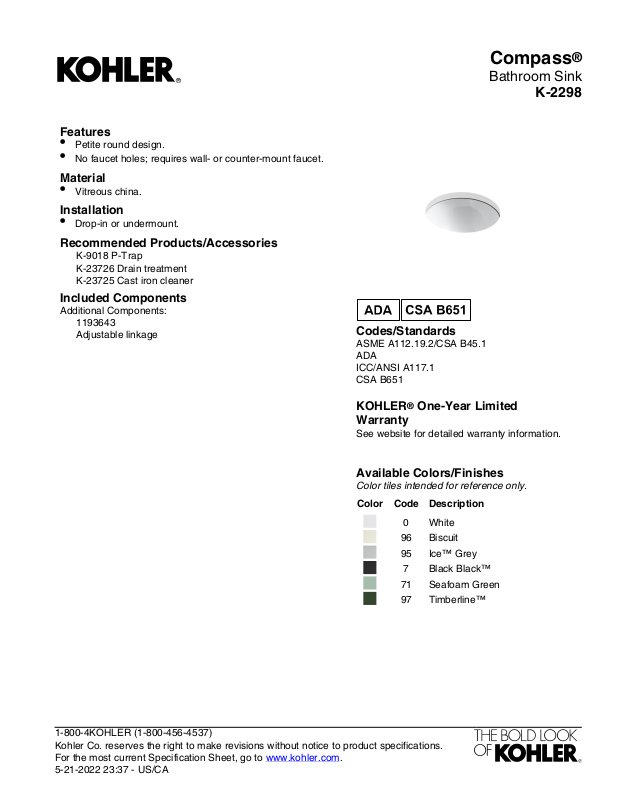

Features

•

Petite round design.

•

No faucet holes; requires wall- or counter-mount faucet.

Material

•

Vitreous china.

Installation

•

Drop-in or undermount.

Recommended Products/Accessories

K-9018 P-Trap K-23726 Drain treatment K-23725 Cast iron cleaner

Included Components

Additional Components:

1193643 Adjustable linkage

Codes/Standards

ASME A112.19.2/CSA B45.1 ADA ICC/ANSI A117.1 CSA B651

KOHLER® One-Year Limited Warranty

See website for detailed warranty information.

Available Colors/Finishes

Color tiles intended for reference only.

Color Code Description

0 White 96 Biscuit 95 Ice™ Grey

7 Black Black™ 71 Seafoam Green 97 Timberline™

Bathroom Sink

K-2298

1-800-4KOHLER (1-800-456-4537) Kohler Co. reserves the right to make revisions without notice to product specifications. For the most current Specification Sheet, go to www.kohler.com. 5-21-2022 23:37 - US/CA

Page 2

Compass

*gnittiF fo L

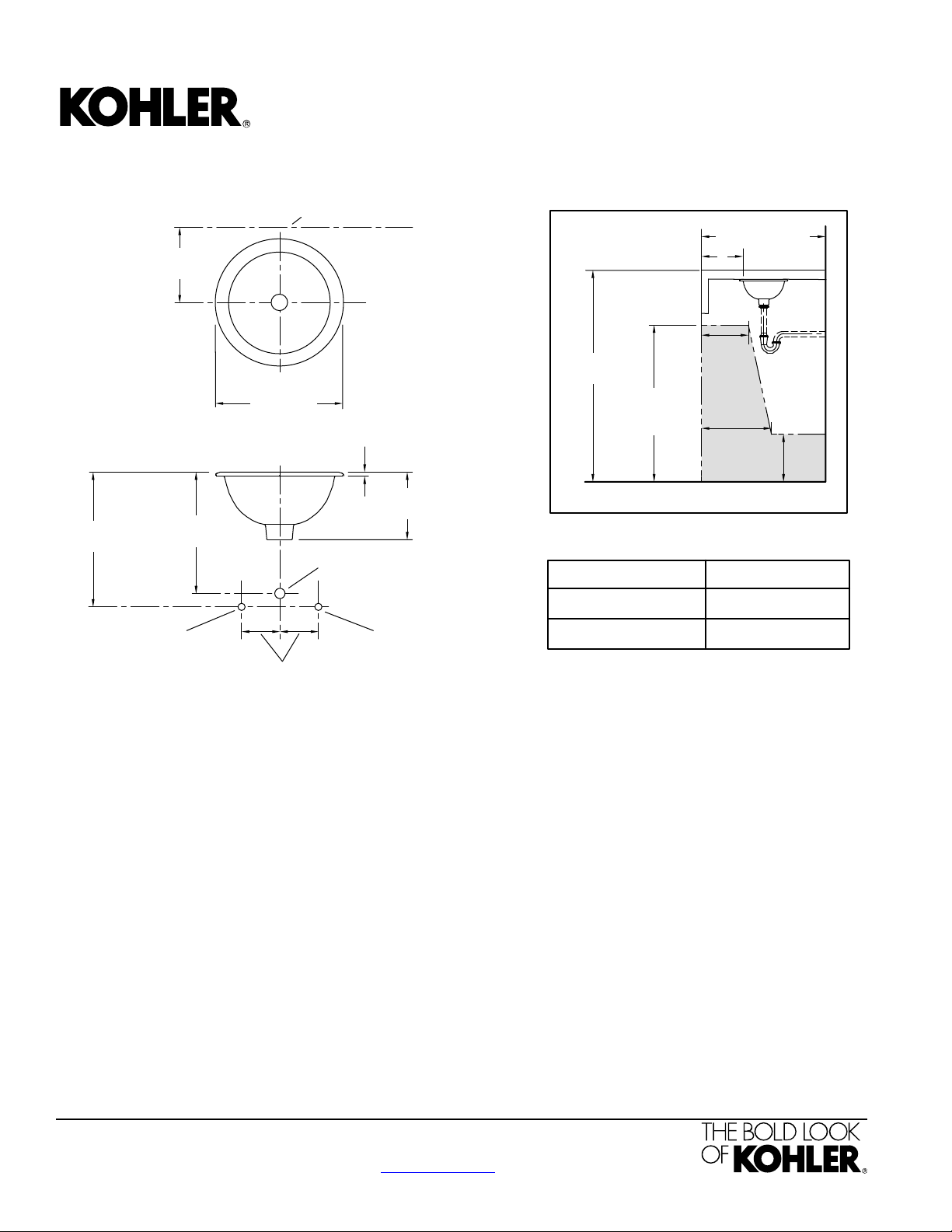

8-1/8" (206 mm)

13-1/4" (337 mm)

14" (356 mm)

12-5/8" (321 mm)

3/8" Hot

3/8" Cold

4" (102 mm)

1-1/4" OD

3/8" (10 mm)

7" (178 mm)

34" (864 mm)

8" (203 mm) Min

27" (686 mm) Min

11" (279 mm)

9" (229 mm) Min

24" (610 mm)

4-3/8" (137 mm)

Under-mount (shown)

Drop-in

Recommended ADA Installation

Technical Information

All product dimensions are nominal. Installation: Drop-in, Undermount Bowl area: Diameter: 10-5/8" (270 mm)

Water depth: 4-3/4" (121 mm)

Drain hole: 1-3/4" (44 mm) Template: 116214-7, required, included

Notes

Install this product according to the installation instructions.

Spout must be a minimum of 4-1/2" (114 mm) long for adequate clearance into bathroom sink.

Supplied basin clamp assembly for undermount installation requires 1" (25 mm) minimum countertop thickness. Installer must supply hardware for thinner countertops.

ADA, CSA B651 compliant when installed to the specific requirements of these regulations.

Bathroom Sink

K-2298
