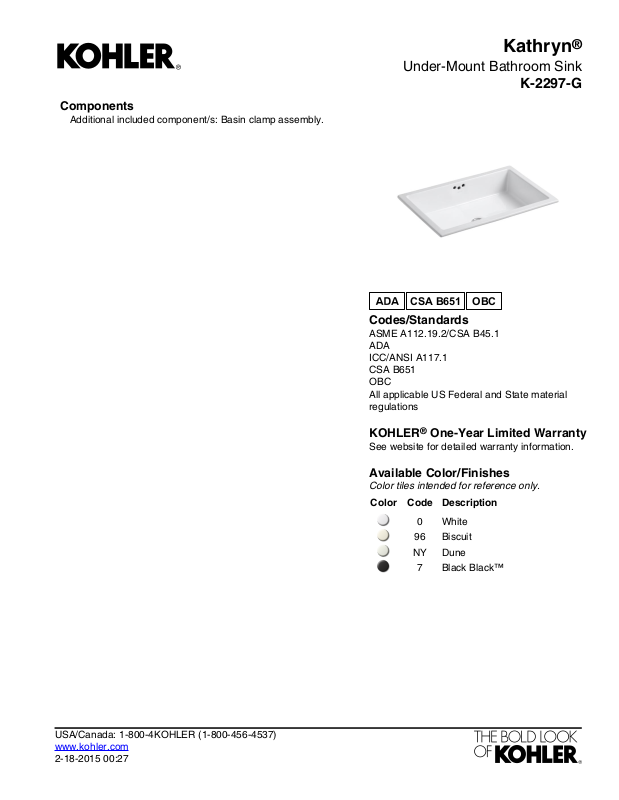

Components
CSA B651
OBC
Additional included component/s: Basin clamp assembly.
Kathryn
Under-Mount Bathroom Sink
K-2297-G
Codes/Standards
ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
CSA B651
OBC
All applicable US Federal and State material
regulations
®
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
DuneNY
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:27
Page 2

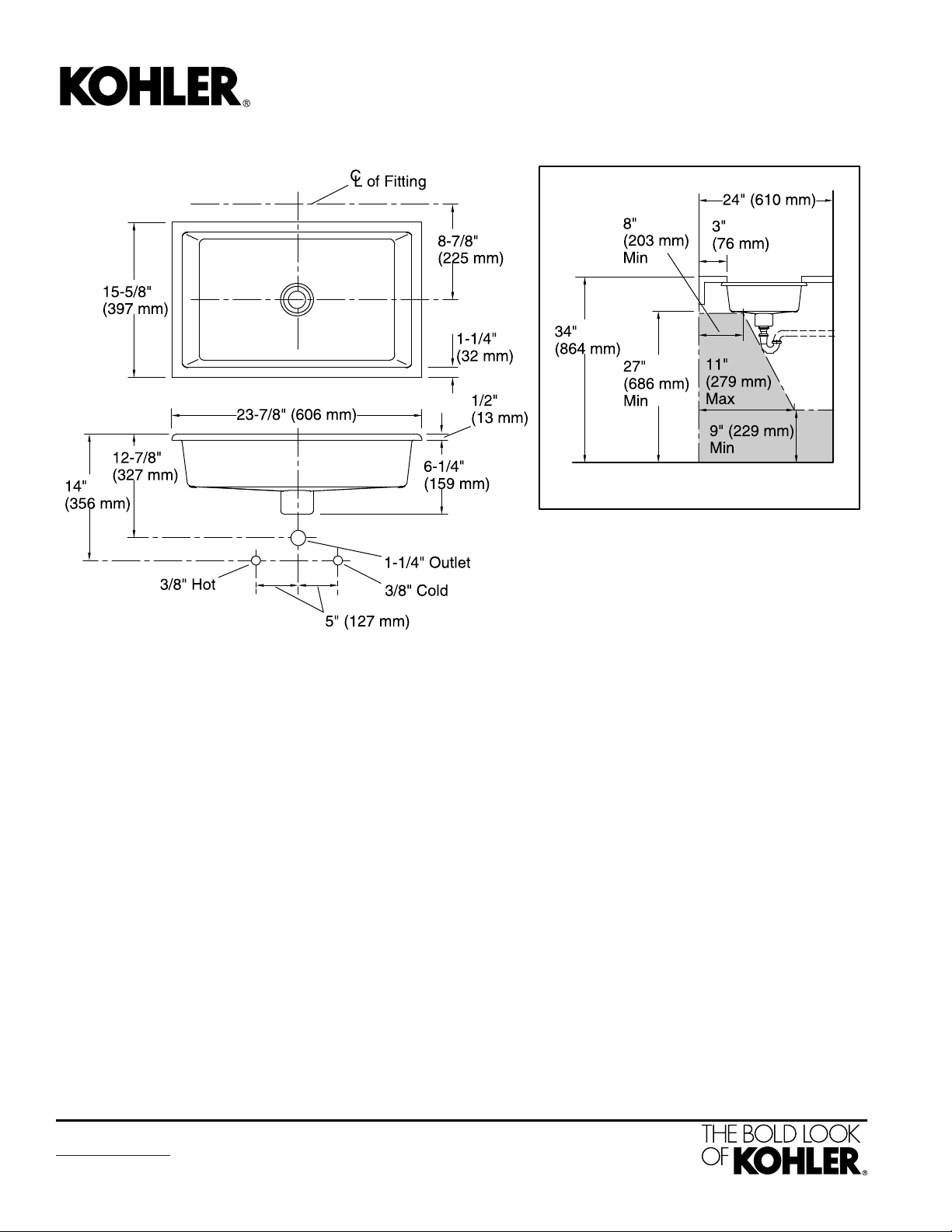

Recommended ADA Installation
Kathryn
®
Under-Mount Bathroom Sink
K-2297-G
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Under-mountInstallation:
Bowl area (Only)
Template:
Length: 21-3/8" (543 mm)
Width: 13-1/8" (333 mm)
Bowl depth: 4-7/8" (123 mm)
Water depth: 3-5/16" (84 mm)
1-3/4" (44 mm)Drain hole:
Under-mount, 1241343-7, not required,
included
Notes
Install this product according to the installation
guide.
NOTICE: Countertop manufacturer or cutter must
use the cut-out template provided with the
product, or a current one provided by Kohler Co.
(call 1-800-4-KOHLER). Kohler Co. is not
responsible for cutout errors when the incorrect
cut-out template is used.
Select a faucet with a minimum spout reach of
4-5/8" (117 mm). Refer to the faucet rough-in
dimensions to ensure the spout will reach over
the bathroom sink rim into the basin.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:27
