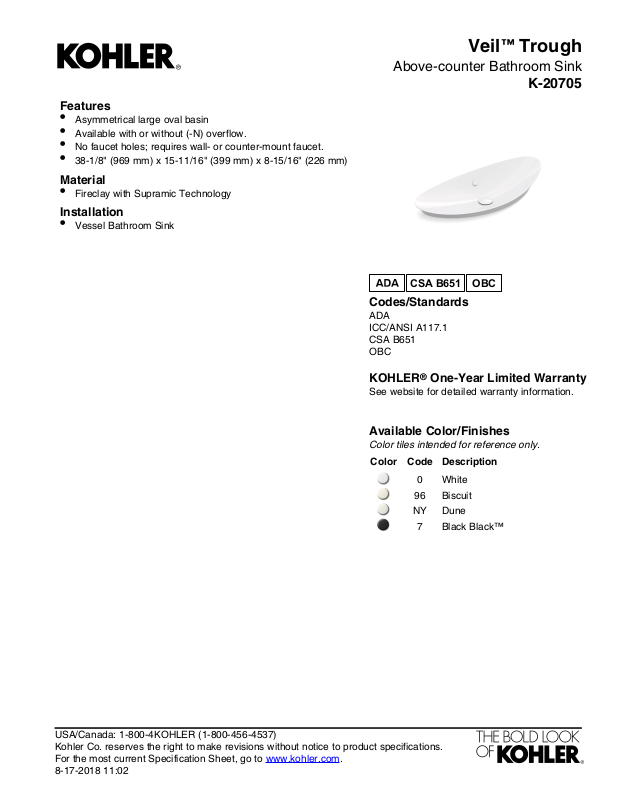

Page 1
Features
CSA B651
OBC
•
Asymmetrical large oval basin
•
Available with or without (-N) overflow.
•
No faucet holes; requires wall- or counter-mount faucet.
•
38-1/8" (969 mm) x 15-11/16" (399 mm) x 8-15/16" (226 mm)
Material
•
Fireclay with Supramic Technology
Installation
•
Vessel Bathroom Sink
Veil™ Trough
Above-counter Bathroom Sink
K-20705
Codes/Standards
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
DuneNY
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-17-2018 11:02
Page 2
3" (76 mm)
Veil™ Trough
Above-counter Bathroom Sink
K-20705

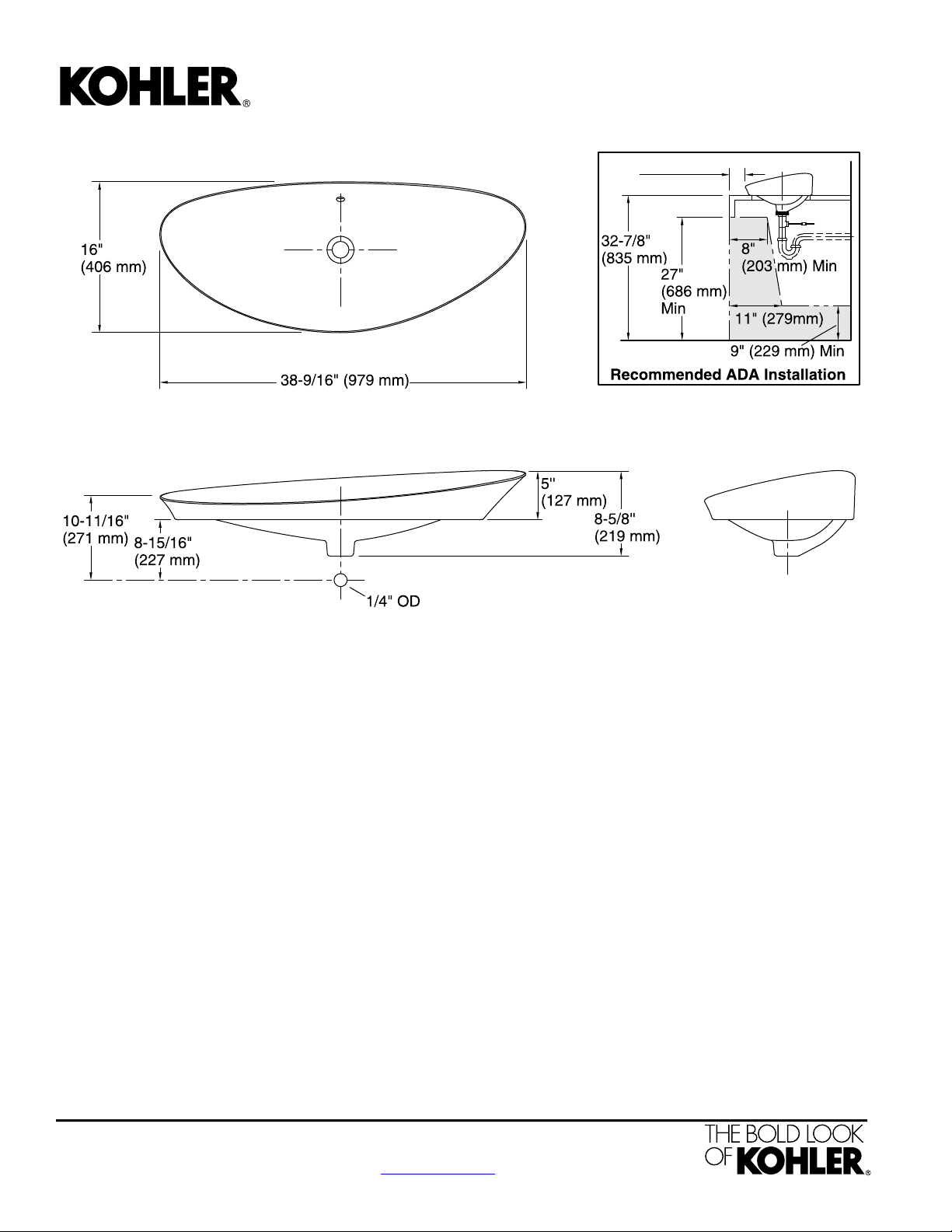

Technical Information
All product dimensions are nominal.
VesselInstallation:
Bowl area:
Bowl depth: 3-1/2" (89 mm)
Water depth: 2-13/16" (71 mm)
1-3/4" (44 mm)Drain hole:
1317552-7, not required, includedTemplate:
Notes
Install this product according to the installation
instructions.
NOTICE: Countertop manufacturer or cutter must
use the cut-out template provided with the
product, or a current one provided by Kohler Co.
(call 1-800-4-KOHLER). Kohler Co. is not
responsible for cutout errors when the incorrect
cut-out template is used.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-17-2018 11:02
