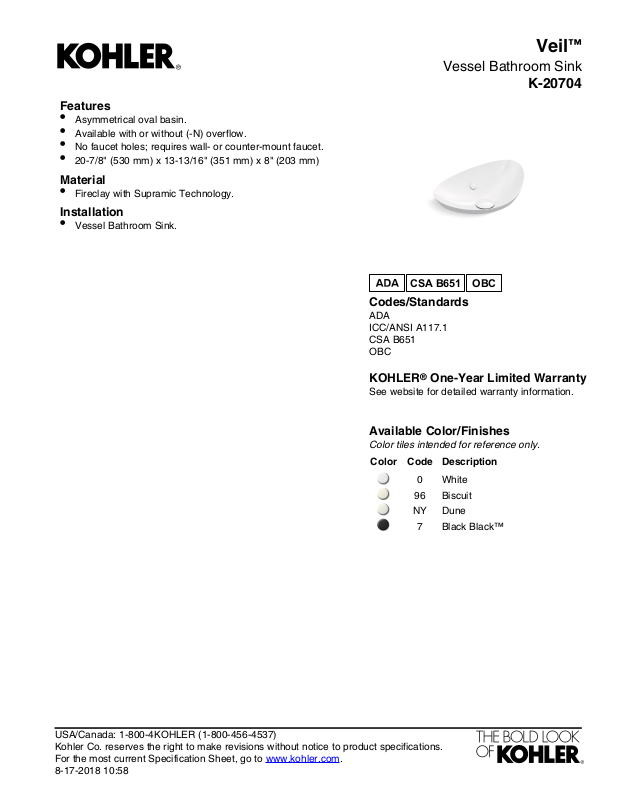

Page 1
Features
CSA B651
OBC
•
Asymmetrical oval basin.
•
Available with or without (-N) overflow.
•
No faucet holes; requires wall- or counter-mount faucet.
•
20-7/8" (530 mm) x 13-13/16" (351 mm) x 8" (203 mm)
Material
•
Fireclay with Supramic Technology.
Installation
•
Vessel Bathroom Sink.
Vessel Bathroom Sink
Codes/Standards
ADA
ICC/ANSI A117.1
CSA B651
OBC
Veil
™
K-20704
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
DuneNY
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-17-2018 10:58
Page 2
9-5/8"
(244 mm)
21-1/8" (537mm)
8-1/16"
(205 mm)
10-3/4"
(273 mm)
1/4'' OD
3-9/16"
(90 mm)
14-1/16"
(357 mm)
Recommended ADA Installation
3" (76 mm)
24" (610 mm)
9" (229 mm) Min
8"
(203 mm)
Min
27"
(686 mm)
Min
34"
(864 mm)
11"
(279 mm)
Veil
™
Vessel Bathroom Sink
K-20704
Technical Information
All product dimensions are nominal.
VesselInstallation:
1-3/4" (44 mm)Drain hole:
1317551-7, not required, includedTemplate:
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-17-2018 10:58
Notes
Install this product according to the installation
instructions.
NOTICE: Countertop manufacturer or cutter must
use the cut-out template provided with the
product, or a current one provided by Kohler Co.
(call 1-800-4-KOHLER). Kohler Co. is not
responsible for cutout errors when the incorrect
cut-out template is used.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
