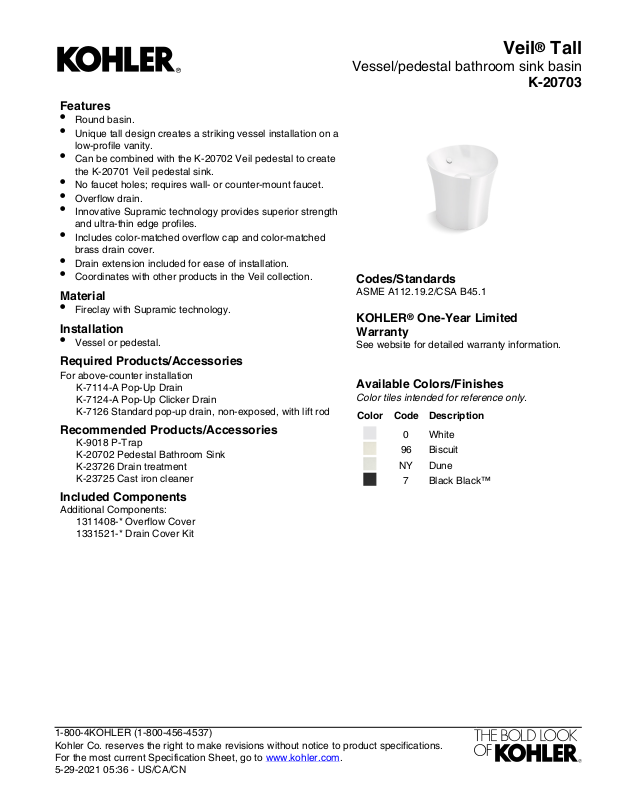

Page 1
Veil® Tall
Features
•
Round basin.
•
Unique tall design creates a striking vessel installation on a
low-profile vanity.
•
Can be combined with the K-20702 Veil pedestal to create
the K-20701 Veil pedestal sink.
•
No faucet holes; requires wall- or counter-mount faucet.
•
Overflow drain.
•
Innovative Supramic technology provides superior strength
and ultra-thin edge profiles.
•
Includes color-matched overflow cap and color-matched
brass drain cover.
•
Drain extension included for ease of installation.
•
Coordinates with other products in the Veil collection.
Material
•
Fireclay with Supramic technology.
Installation
•
Vessel or pedestal.
Required Products/Accessories
For above-counter installation
K-7114-A Pop-Up Drain
K-7124-A Pop-Up Clicker Drain
K-7126 Standard pop-up drain, non-exposed, with lift rod
Recommended Products/Accessories
K-9018 P-Trap
K-20702 Pedestal Bathroom Sink
K-23726 Drain treatment
K-23725 Cast iron cleaner
Included Components
Additional Components:
1311408-* Overflow Cover
1331521-* Drain Cover Kit
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
NY Dune
7 Black Black™
Vessel/pedestal bathroom sink basin
K-20703
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 05:36 - US/CA/CN
Page 2
Veil® Tall
12-1/4" (311 mm)
1/4" OD
20-3/16"
(513 mm)
Ø 16"
(406 mm)
15-1/16"
(383 mm)
Technical Information
All product dimensions are nominal.
Installation: Vessel, Pedestal
Drain hole: 1-3/4" (44 mm)
Notes
Install this product according to the installation
instructions.
IMPORTANT! This installation requires a wallmounted faucet. In areas with subfreezing
winter temperatures, plan to install this product
to an interior wall to protect the water supply
and drain lines from freezing.
Vessel/pedestal bathroom sink basin
K-20703
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 05:36 - US/CA/CN
