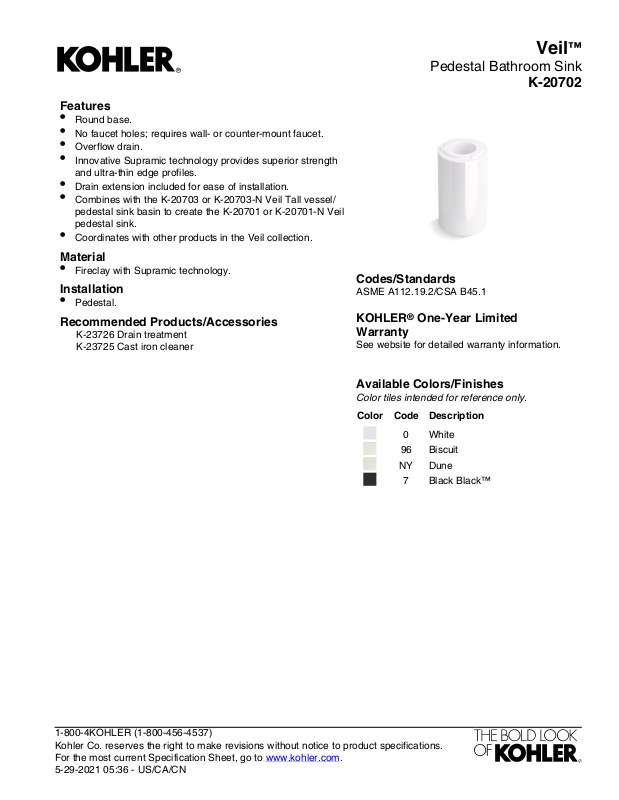

Page 1
Veil
Features
•
Round base.
•
No faucet holes; requires wall- or counter-mount faucet.
•
Overflow drain.
•
Innovative Supramic technology provides superior strength
and ultra-thin edge profiles.
•
Drain extension included for ease of installation.
•
Combines with the K-20703 or K-20703-N Veil Tall vessel/
pedestal sink basin to create the K-20701 or K-20701-N Veil
pedestal sink.
•
Coordinates with other products in the Veil collection.
Material
•
Fireclay with Supramic technology.
Installation
•
Pedestal.
Recommended Products/Accessories
K-23726 Drain treatment
K-23725 Cast iron cleaner
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
NY Dune
7 Black Black™
™
Pedestal Bathroom Sink
K-20702
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 05:36 - US/CA/CN
Page 2
Veil
Ø 12-1/4"
(311 mm)
Finished Floor
Finished
Wall
3" (76 mm)
5"
(127 mm)
21-1/2"
(546 mm)
Technical Information
All product dimensions are nominal.
Installation: Pedestal
Notes
Install this product according to the installation
instructions.
IMPORTANT! This installation requires a wallmounted faucet. In areas with subfreezing
winter temperatures, plan to install this product
to an interior wall to protect the water supply
and drain lines from freezing.
™
Pedestal Bathroom Sink
K-20702
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 05:36 - US/CA/CN
