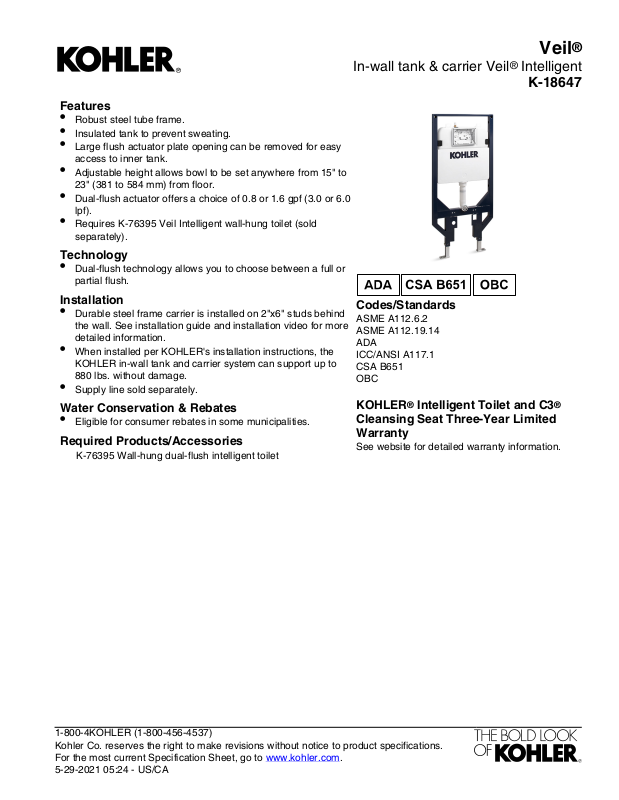

Page 1
Veil
Features
•
Robust steel tube frame.
•
Insulated tank to prevent sweating.
•
Large flush actuator plate opening can be removed for easy
access to inner tank.
•
Adjustable height allows bowl to be set anywhere from 15" to
23" (381 to 584 mm) from floor.
•
Dual-flush actuator offers a choice of 0.8 or 1.6 gpf (3.0 or 6.0
lpf).
•
Requires K-76395 Veil Intelligent wall-hung toilet (sold
separately).
Technology
•
Dual-flush technology allows you to choose between a full or
partial flush.
Installation
•
Durable steel frame carrier is installed on 2"x6" studs behind
the wall. See installation guide and installation video for more
detailed information.
•
When installed per KOHLER's installation instructions, the
KOHLER in-wall tank and carrier system can support up to
880 lbs. without damage.
•
Supply line sold separately.
Water Conservation & Rebates
•
Eligible for consumer rebates in some municipalities.
Required Products/Accessories
K-76395 Wall-hung dual-flush intelligent toilet
Codes/Standards
ASME A112.6.2
ASME A112.19.14
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Intelligent Toilet and C3
®
Cleansing Seat Three-Year Limited
Warranty
See website for detailed warranty information.
®
In-wall tank & carrier Veil® Intelligent
K-18647
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 05:24 - US/CA
Page 2
Veil
No image available.
This product is a component and not intended to be a standalone installation.
Technical Information
All product dimensions are nominal.
Toilet type: In-wall tank, Wall-mount In-wall mount
Waste Outlet: Wall
Flush type: Gravity washdown
Water Consumption
Full: 1.6 gpf (6 lpf)
Reduced: 0.8 gpf (3 lpf)
Notes
Install this product according to the installation
instructions.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
Plumbing codes may require elongated toilets
and elongated, open-front seats in public
bathrooms.
Accessibility standards may require controls to
be located on the open side of the toilet.
®
In-wall tank & carrier Veil® Intelligent
K-18647
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 05:24 - US/CA
