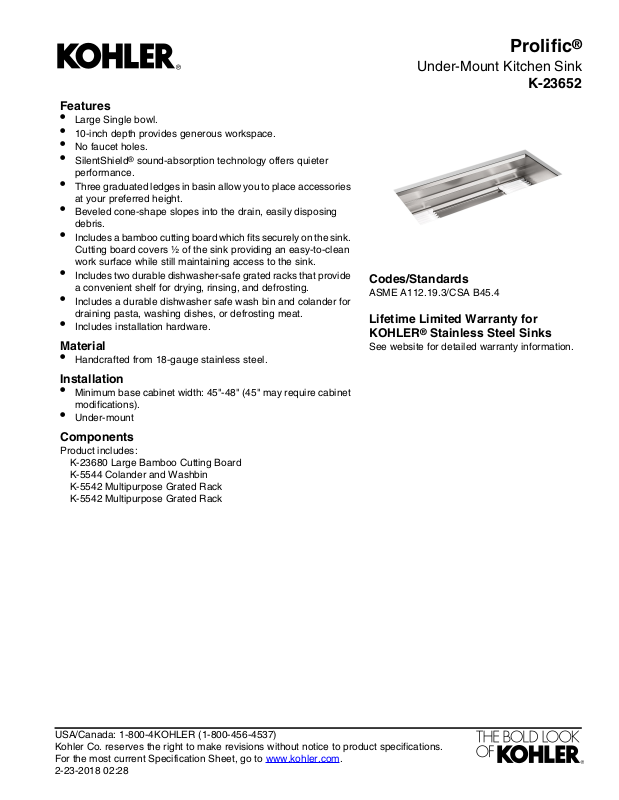

Page 1
Features
•
Large Single bowl.
•
10-inch depth provides generous workspace.
•
No faucet holes.
•
SilentShield® sound-absorption technology offers quieter
performance.
•
Three graduated ledges in basin allow you to place accessories
at your preferred height.
•
Beveled cone-shape slopes into the drain, easily disposing
debris.
•
Includes a bamboo cutting board which fits securely on the sink.
Cutting board covers ½ of the sink providing an easy-to-clean
work surface while still maintaining access to the sink.
•
Includes two durable dishwasher-safe grated racks that provide
a convenient shelf for drying, rinsing, and defrosting.
•
Includes a durable dishwasher safe wash bin and colander for
draining pasta, washing dishes, or defrosting meat.
•
Includes installation hardware.
Material
•
Handcrafted from 18-gauge stainless steel.
Prolific
Under-Mount Kitchen Sink
K-23652
Codes/Standards
ASME A112.19.3/CSA B45.4
Lifetime Limited Warranty for
KOHLER® Stainless Steel Sinks
See website for detailed warranty information.
®
Installation
•
Minimum base cabinet width: 45"-48" (45" may require cabinet
modifications).
•
Under-mount
Components
Product includes:
K-23680 Large Bamboo Cutting Board
K-5544 Colander and Washbin
K-5542 Multipurpose Grated Rack
K-5542 Multipurpose Grated Rack
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-23-2018 02:28
Page 2
18-1/4"
(464 mm)
14-15/16"
(379 mm)
16-1/2" (419 mm)
16-7/16"
(418 mm)
11-1/16"
(281 mm)
44" (1118 mm)
9-1/8"
(232 mm)
7/8"
(22 mm)
22" (559 mm)
1-1/2" OD
Prolific
®
Under-Mount Kitchen Sink
K-23652
Technical Information
All product dimensions are nominal.
Under-mountInstallation:
Bowl area (Only):
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-23-2018 02:28
Length: 42-1/2" (1080 mm)
Width: 14-15/16" (379 mm)
Bowl depth: 10-1/8" (257 mm)
Water depth: 10-1/8" (257 mm)
3-3/4" (94 mm)Drain hole:
1311447-7, required, includedTemplate:
Notes
Install this product according to the installation
instructions.
Countertop manufacturer or cutter must use the
cut-out template provided with the product, or a
current one provided by Kohler Co. (call
1-800-43-FOCUS). Kohler Co. is not responsible
for cut-out errors when the incorrect cut-out
template is used.
