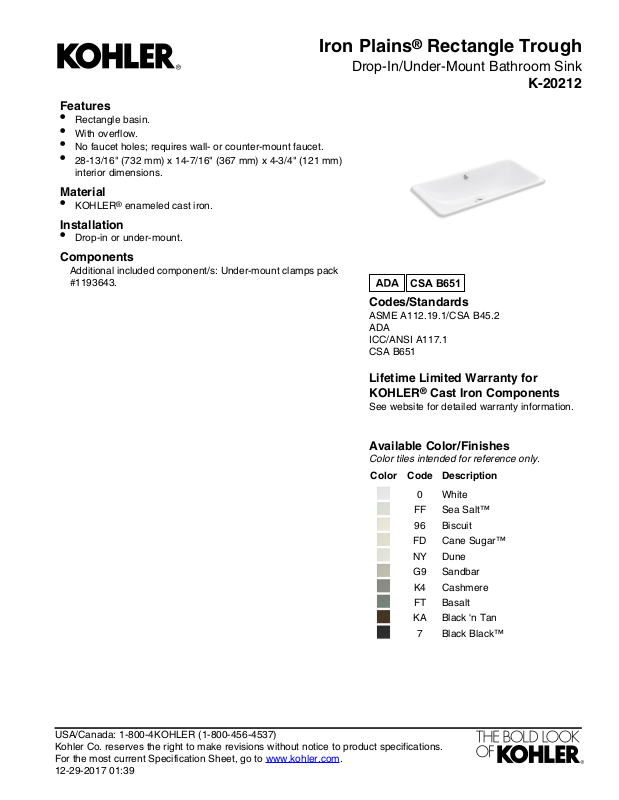

Page 1
Features
CSA B651
•
Rectangle basin.
•
With overflow.
•
No faucet holes; requires wall- or counter-mount faucet.
•
28-13/16" (732 mm) x 14-7/16" (367 mm) x 4-3/4" (121 mm)
interior dimensions.
Material
•
KOHLER® enameled cast iron.
Installation
•
Drop-in or under-mount.
Components
Additional included component/s: Under-mount clamps pack
#1193643.
Iron Plains® Rectangle Trough
Drop-In/Under-Mount Bathroom Sink
K-20212
Codes/Standards
ASME A112.19.1/CSA B45.2
ADA
ICC/ANSI A117.1
CSA B651
Lifetime Limited Warranty for
KOHLER® Cast Iron Components
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Sea Salt™FF
Biscuit96
Cane Sugar™FD
DuneNY
SandbarG9
CashmereK4
BasaltFT
Black 'n TanKA
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-29-2017 01:39
Page 2
12-1/16"
Iron Plains® Rectangle Trough
Drop-In/Under-Mount Bathroom Sink
K-20212
Technical Information
All product dimensions are nominal.
Drop-In, Under-mountInstallation:
Bowl area (Only)
Length: 28-13/16" (732 mm)
Width: 14-7/16" (367 mm)
Bowl depth: 4-3/4" (121 mm)
Water depth: 3-5/16" (84 mm)
1-3/4" (44 mm)Drain hole:
1319048-7, required, includedTemplate:
Notes
Install this product according to the installation
instructions.
Countertop manufacturer or cutter must use the
cut-out template provided with the product, or a
current one provided by Kohler Co. (call
1-800-43-FOCUS). Kohler Co. is not responsible
for cut-out errors when the incorrect cut-out
template is used.
ADA, CSA B651 compliant when installed to the
specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-29-2017 01:39
