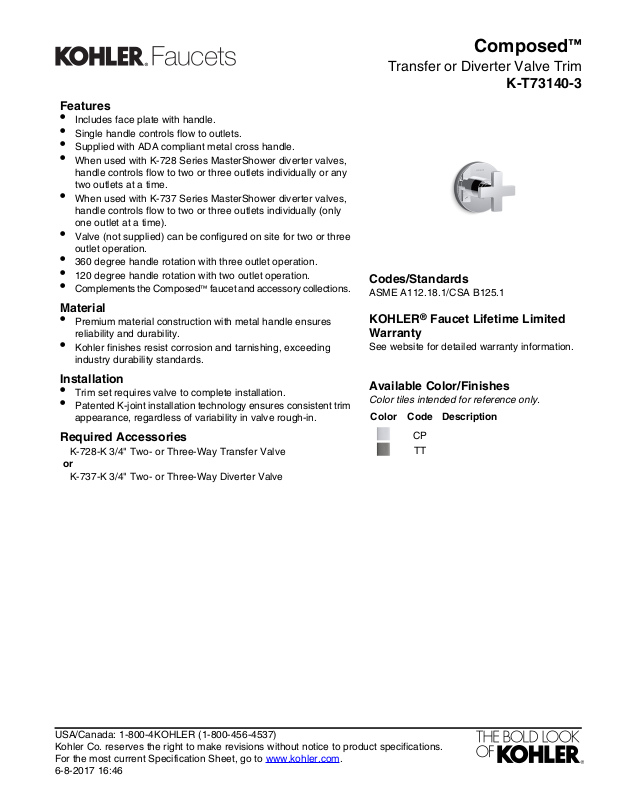

Page 1
Features
•
Includes face plate with handle.
•
Single handle controls flow to outlets.
•
Supplied with ADA compliant metal cross handle.
•
When used with K-728 Series MasterShower diverter valves,
handle controls flow to two or three outlets individually or any
two outlets at a time.
•
When used with K-737 Series MasterShower diverter valves,
handle controls flow to two or three outlets individually (only
one outlet at a time).
•
Valve (not supplied) can be configured on site for two or three
outlet operation.
•
360 degree handle rotation with three outlet operation.
•
120 degree handle rotation with two outlet operation.
•
Complements the Composed™ faucet and accessory collections.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
Kohler finishes resist corrosion and tarnishing, exceeding
industry durability standards.
Composed
Transfer or Diverter Valve Trim
K-T73140-3
Codes/Standards
ASME A112.18.1/CSA B125.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
™
Installation
•
Trim set requires valve to complete installation.
•
Patented K-joint installation technology ensures consistent trim
appearance, regardless of variability in valve rough-in.
Required Accessories
K-728-K 3/4" Two- or Three-Way Transfer Valve
or
K-737-K 3/4" Two- or Three-Way Diverter Valve
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
CP
TT
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-8-2017 16:46

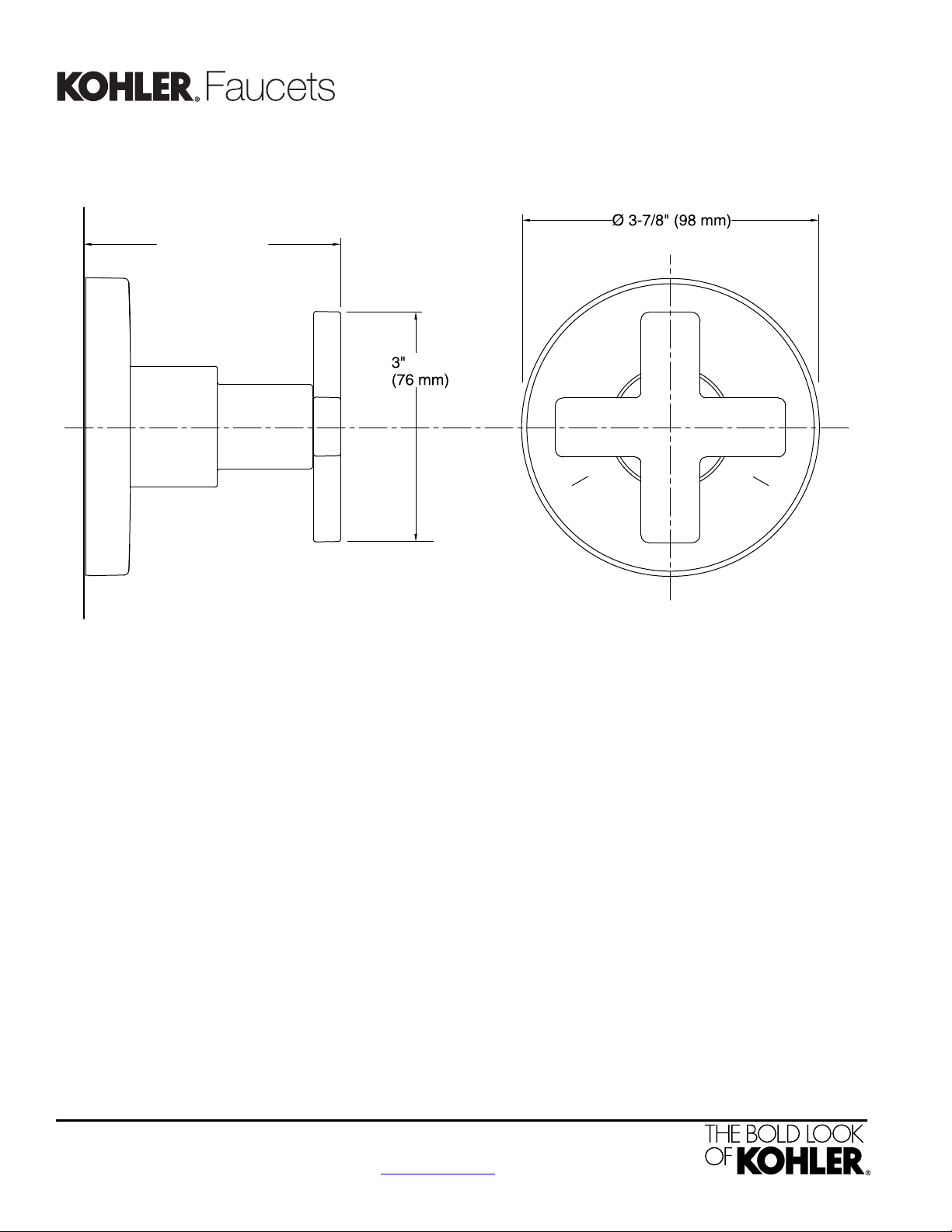

Page 2
3-5/16" (84 mm)
Composed
™
Transfer or Diverter Valve Trim
K-T73140-3
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
guide.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-8-2017 16:46
