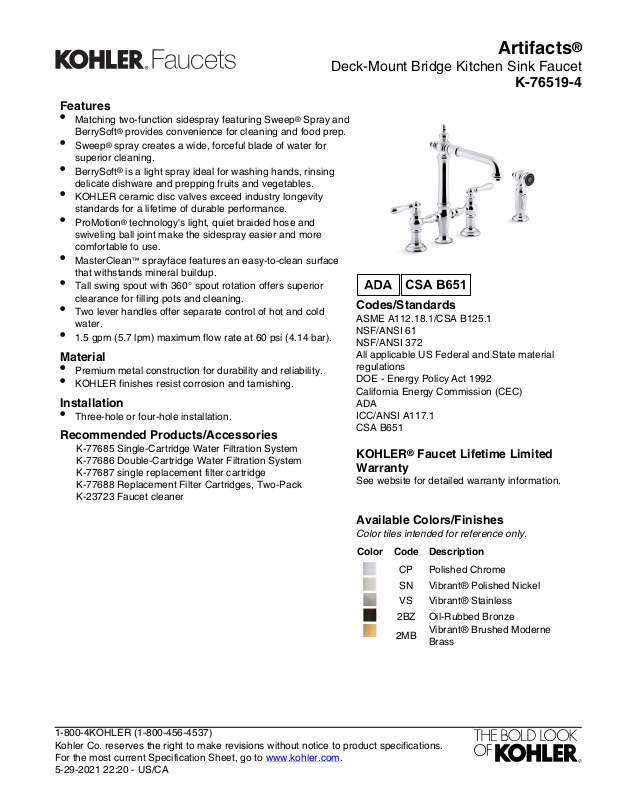

Page 1
Artifacts
Features
•
Matching two-function sidespray featuring Sweep® Spray and
BerrySoft® provides convenience for cleaning and food prep.
•
Sweep® spray creates a wide, forceful blade of water for
superior cleaning.
•
BerrySoft® is a light spray ideal for washing hands, rinsing
delicate dishware and prepping fruits and vegetables.
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
•
ProMotion® technology's light, quiet braided hose and
swiveling ball joint make the sidespray easier and more
comfortable to use.
•
MasterClean™ sprayface features an easy-to-clean surface
that withstands mineral buildup.
•
Tall swing spout with 360° spout rotation offers superior
clearance for filling pots and cleaning.
•
Two lever handles offer separate control of hot and cold
water.
•
1.5 gpm (5.7 lpm) maximum flow rate at 60 psi (4.14 bar).
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Three-hole or four-hole installation.
Recommended Products/Accessories
K-77685 Single-Cartridge Water Filtration System
K-77686 Double-Cartridge Water Filtration System
K-77687 single replacement filter cartridge
K-77688 Replacement Filter Cartridges, Two-Pack
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
VS Vibrant® Stainless
2BZ Oil-Rubbed Bronze
2MB
Vibrant® Brushed Moderne
Brass
®
Deck-Mount Bridge Kitchen Sink Faucet
K-76519-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 22:20 - US/CA
Page 2
Artifacts
Ø 1-1/4"
Ø 1-1/8"
13-1/2"
(343 mm)
8-1/2"
(216 mm)
9"
(229 mm)
3-7/16"
(87 mm)
7-7/16"
(189 mm)
Ø 2"
(51 mm)
5-15/16"
(151 mm)
1-13/16"
(46 mm)
Max
Ø 2-5/16"
(59 mm)
Ø 7/8"
Recommended
minimum of
5" (127 mm)
8"
(203 mm)
5-7/16"
(138 mm)
Technical Information
All product dimensions are nominal.
Sidespray:
Flow rate: 1.8 gal/min (6.8 l/min)
Pressure: 60 psi (4.1 bar)
Valve body: Plastic
Spout:
Spout reach: 8-1/2" (216 mm)
Notes
Install this product according to the installation
guide.
Drill the hole for the sidespray a minimum
of 5" (127 mm) from the center of the lever
handle.
ADA complaint for faucet handles only.
ADA, CSA B651 compliant when installed to
the specific requirements of these regulations.
®
Deck-Mount Bridge Kitchen Sink Faucet
K-76519-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 22:20 - US/CA
